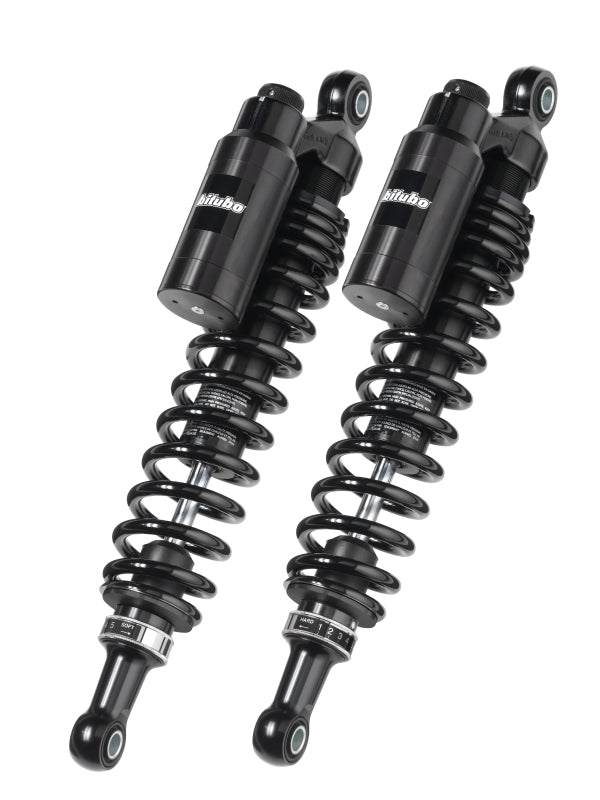

Bitubo WMT5 361mm Dark Edition Twin Rear Shocks for 2016+ Triumph BONNEVILLE/STREET - T0030WMT52V2

The Bitubo WMT5 twin-shock package, part number T0030WMT52V2, is a rear-suspension replacement and upgrade for 2016+ Triumph BONNEVILLE/STREET. The setup combines spring preload, rebound, compression, length adjustment, a 361 mm length, a piggyback reservoir and Dark Edition finish. It replaces aging factory damping with a purpose-built Bitubo component while adding the adjustment range specified for this exact part. That gives you a more useful setup window for matching the chassis to rider weight, load, and intended use instead of being locked into a one-setting stock suspension package.

Key Features & Specs:

• Series: WMT5 Piggyback Twin-Shock Series
• Product Type: Twin Rear Shocks
• Adjustability: Spring preload, Rebound, Compression, Length
• Length: 361 mm
• Height Change vs. Standard: +10 mm
• Reservoir: Piggyback
• Finish: Dark Edition
• Bitubo Configuration: Twinshocks adjustable: spring preload, rebound, compression, length 361mm, (STD +10mm), Piggyback tank, DARK EDITION
• Weight: 11.02 lb
• Box Dimensions: 45 x 17 x 9 cm
• UPC: 8033914212957
• Part Number: T0030WMT52V2

Fitment:

Triumph:

• BONNEVILLE T120 / T120 BLACK DU01/DU04 2016-> 1200cc
• BONNEVILLE T100 BLACK DB01/ DB02/ DB04 2016-> 900cc
• STREET SCRAMBLER DC01/02/03/04 2017-2019 900cc
• STREET SCRAMBLER DP04R 1 3 2019-> 900cc

About Bitubo WMT5 Piggyback Twin-Shock Series:

The WMT family is Bitubo’s more adjustable twin-shock platform, built around separate piggyback compensation reservoirs and model-specific calibration. The WMT5 version combines piggyback reservoirs with preload, rebound, compression, and increased length, making it the choice when a twin-shock build needs real damping and chassis-tuning range.

About Bitubo Suspension:

Founded in 1963, Bitubo develops motorcycle suspension and damping systems for street, racing, V-twin, scooter, Vespa, and off-road applications. Bitubo continues to design, engineer, develop, and manufacture its suspension products in Italy, drawing on decades of R&D and competition experience. For Elite Race Fab customers, it is the kind of hardware we like to see: purpose-built components, useful adjustment where the application calls for it, and a clear focus on getting the chassis working the way it should.
