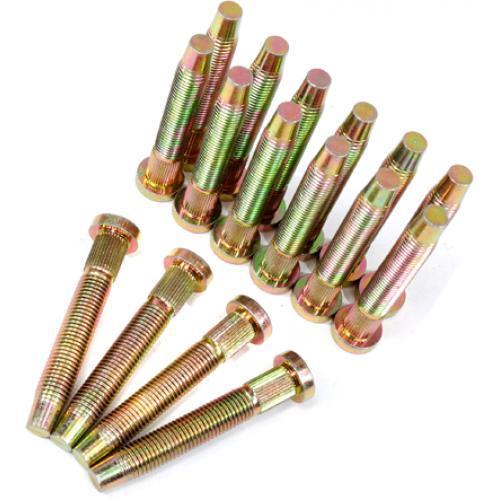

BLOX Racing extended wheel studs are manufactured from high-strength, forged alloy steel. These extended wheel studs are designed and intended to be used with BLOX Racing open-ended lug nuts on racing slicks or when wheel spacers are required.
BLOX Racing wheel studs are all heat-treated and coated and withstand the rigors of acceleration loads and lateral forces.
Extended wheel studs are available in sets of 16-pc and 20-pc.
Single-piece wheel studs are available and are ideal for when replacing only a few old or damaged studs.
WHEEL STUD SPECS
Note: Wheel studs must properly be pressed in using a mechanical or hydraulic press.
- Thread pitch: 12X1.5MM
- Total length: 78MM
- Thread length: 51MM
- Head height: 8.7MM
- Head diameter: 9.6MM
- Knurl diameter: 12.3MM
- Knurl length: 6.5MM
- Base diameter: 17.5MM
- Base thickness: 4.6MM
