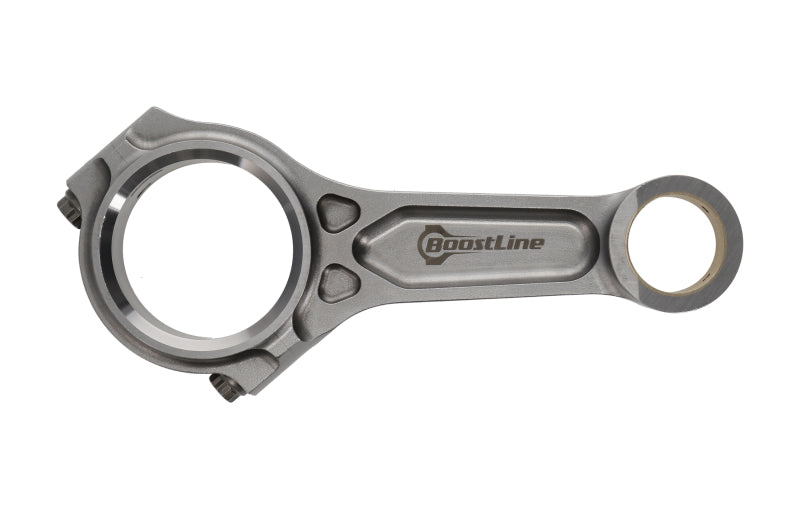

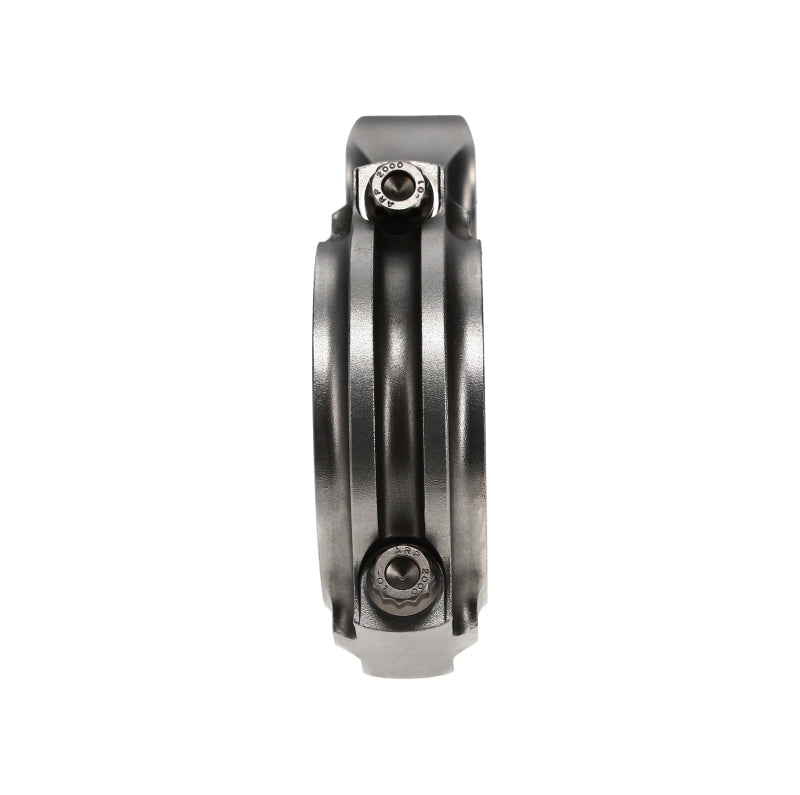

BoostLine 7.559in Connecting Rod for Dodge 5.9/6.7L Cummins, ARP 2000 - DO7559-575S

BoostLine DO7559-575S is a single connecting rod for Dodge 5.9/6.7L Cummins applications. Manufacturer data specifies a 7.559 in center-to-center length, 1.575 in wrist pin diameter, 2.710 in crank journal diameter. This configuration uses ARP 2000 rod bolts in a M12 x 1.800 in size. BoostLine standard-series rods use forged 4340 steel and the brand’s patented three-pocket design for demanding performance engine combinations. Listed weight with bolts is 1958 g.

Key Features & Specs:

• Brand: BoostLine
• Series: BoostLine
• Product Type: Connecting Rod
• Engine Application: Dodge 5.9/6.7L Cummins
• Quantity: 1
• Material: Forged 4340 steel
• Center-to-Center Length: 7.559 in
• Wrist Pin Diameter: 1.575 in
• Crank Journal Diameter: 2.710 in
• Big End Bore: 2.8735in
• Big End Width: 1.526 in
• Small End Width: 1.526 in
• Rod Bolt Material: ARP 2000
• Rod Bolt Size: M12 x 1.800 in
• Rod Bolt Part Number: BT81800-S
• Weight With Bolts: 1958 g
• Manufacturer Part Number: DO7559-575S
• UPC: 193564265975

Fitment:

• Dodge 5.9/6.7L Cummins engine applications

Series Description: BoostLine connecting rods are forged from 4340 steel and use the brand’s patented three-pocket beam design, developed to support high cylinder-pressure performance applications while controlling rotating mass. The standard BoostLine series is positioned for demanding forced-induction, nitrous, street-performance, and racing combinations. Application-specific ARP fasteners and dimensional CMM inspection are part of the product program; exact dimensions and bolt grade vary by part number.
