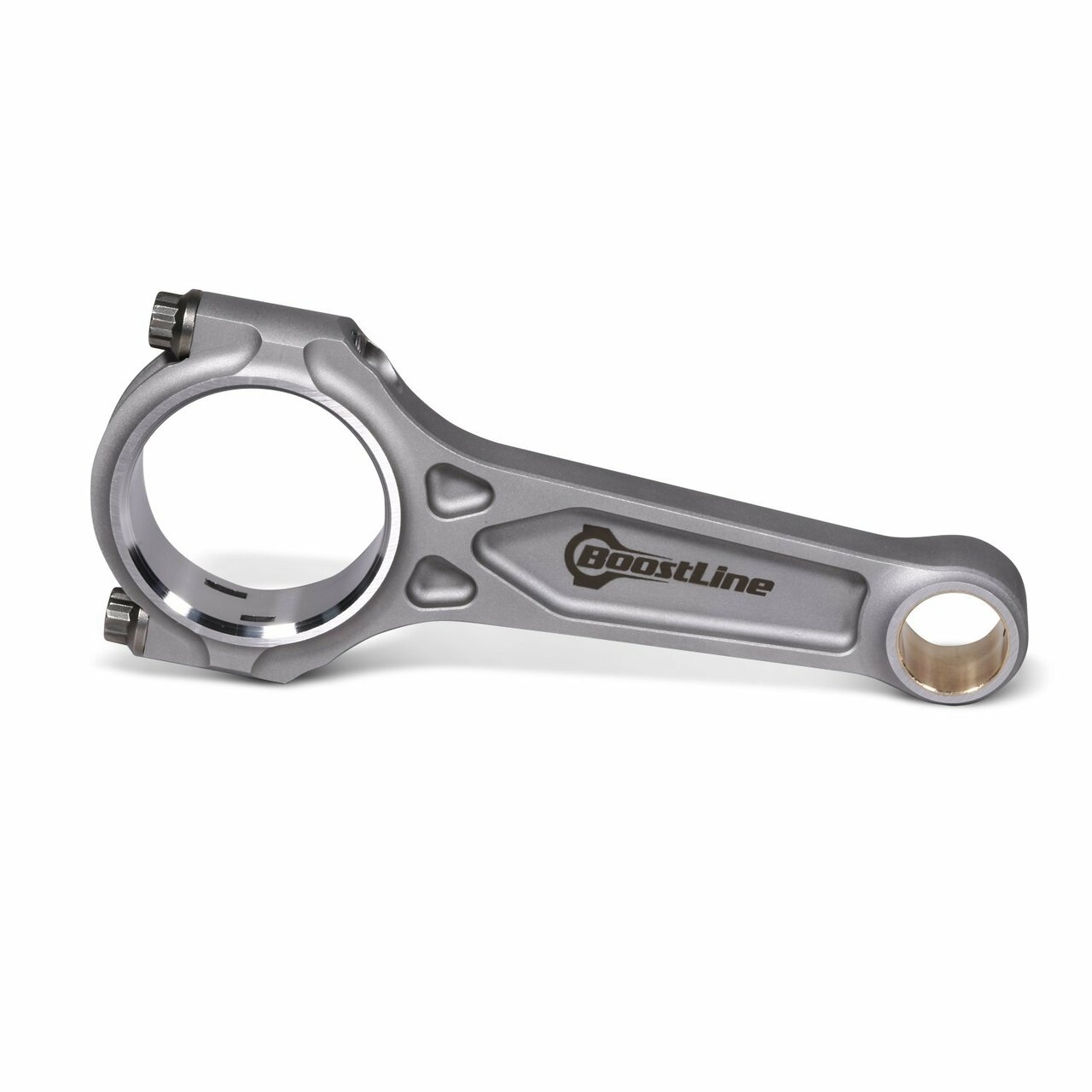

BoostLine 6.012in Connecting Rod Set for Ford 3.5L EcoBoost, ARP 2000 - FD6012-905

BoostLine FD6012-905 is a set of 4 connecting rods for Ford 3.5L EcoBoost applications. Manufacturer data specifies a 6.012 in center-to-center length, 0.905 in wrist pin diameter, 56 mm crank journal diameter. This configuration uses ARP 2000 rod bolts in a 7/16 x 1.60 in size. BoostLine standard-series rods use forged 4340 steel and the brand’s patented three-pocket design for demanding performance engine combinations. Listed weight with bolts is 690 g.

Key Features & Specs:

• Brand: BoostLine
• Series: BoostLine
• Product Type: Connecting Rod Set
• Engine Application: Ford 3.5L EcoBoost
• Quantity: 4
• Material: Forged 4340 steel
• Center-to-Center Length: 6.012 in
• Wrist Pin Diameter: 0.905 in
• Crank Journal Diameter: 56 mm
• Big End Bore: 2.3575 in
• Big End Width: 0.8539 in
• Small End Width: 0.8539 in
• Rod Bolt Material: ARP 2000
• Rod Bolt Size: 7/16 x 1.60 in
• Rod Bolt Part Number: BT71601-S
• Weight With Bolts: 690 g
• Manufacturer Part Number: FD6012-905
• UPC: 00193564266002

Fitment:

• Ford 3.5L EcoBoost engine applications

Series Description: BoostLine connecting rods are forged from 4340 steel and use the brand’s patented three-pocket beam design, developed to support high cylinder-pressure performance applications while controlling rotating mass. The standard BoostLine series is positioned for demanding forced-induction, nitrous, street-performance, and racing combinations. Application-specific ARP fasteners and dimensional CMM inspection are part of the product program; exact dimensions and bolt grade vary by part number.
