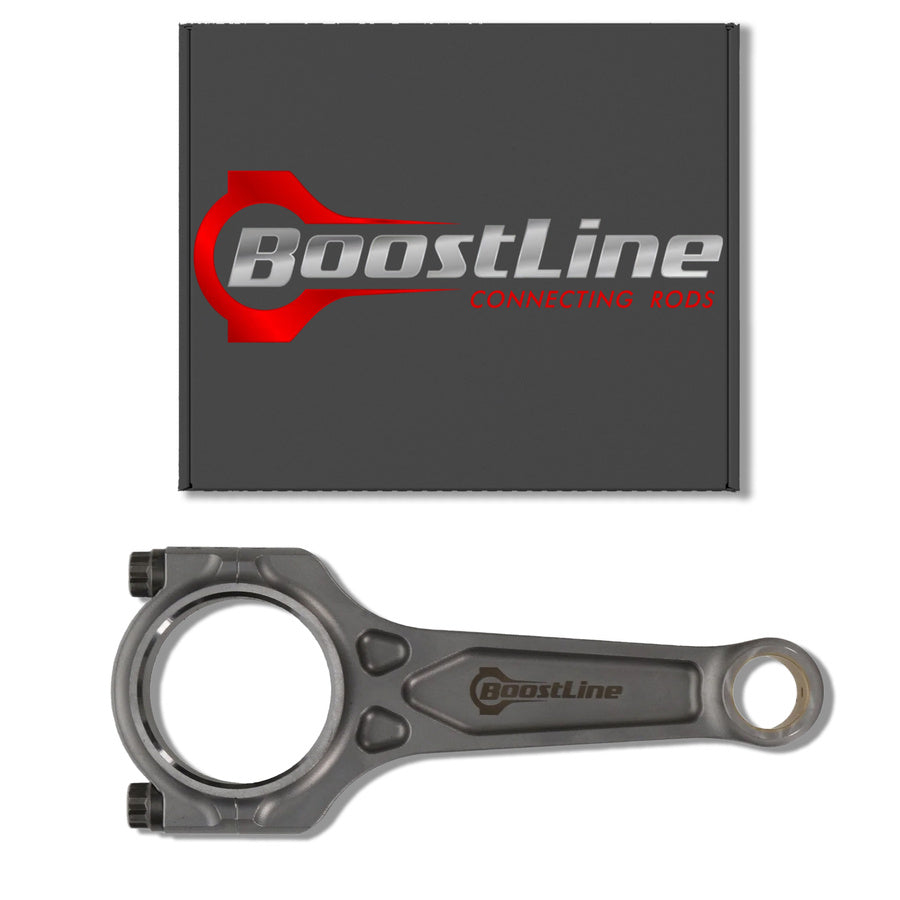

BoostLine 5.364in Connecting Rod for Nissan SR20, ARP 2000 - NI5364-866S

BoostLine NI5364-866S is a single connecting rod for Nissan SR20 applications. Manufacturer data specifies a 5.364 in center-to-center length, 0.8661 in wrist pin diameter, 48 mm crank journal diameter. This configuration uses ARP 2000 rod bolts in a 3/8 x 1.600 in size. BoostLine standard-series rods use forged 4340 steel and the brand’s patented three-pocket design for demanding performance engine combinations. Listed weight with bolts is 616 g.

Key Features & Specs:

• Brand: BoostLine
• Series: BoostLine
• Product Type: Connecting Rod
• Engine Application: Nissan SR20
• Quantity: 1
• Material: Forged 4340 steel
• Center-to-Center Length: 5.364 in
• Wrist Pin Diameter: 0.8661 in
• Crank Journal Diameter: 48 mm
• Big End Bore: 2.0081 in
• Big End Width: 0.8949 in
• Small End Width: 0.8949 in
• Rod Bolt Material: ARP 2000
• Rod Bolt Size: 3/8 x 1.600 in
• Rod Bolt Part Number: BT61601-S
• Weight With Bolts: 616 g
• Manufacturer Part Number: NI5364-866S
• UPC: 00193564024244

Fitment:

• Nissan SR20 engine applications

Series Description: BoostLine connecting rods are forged from 4340 steel and use the brand’s patented three-pocket beam design, developed to support high cylinder-pressure performance applications while controlling rotating mass. The standard BoostLine series is positioned for demanding forced-induction, nitrous, street-performance, and racing combinations. Application-specific ARP fasteners and dimensional CMM inspection are part of the product program; exact dimensions and bolt grade vary by part number.
