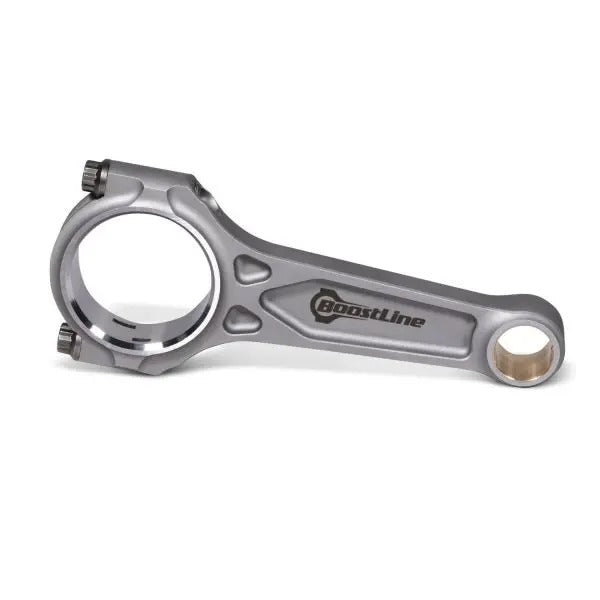

BoostLine 6.496in Connecting Rod Set for Nissan VR38DETT, ARP 625+ - NI6496-905+

BoostLine NI6496-905+ is a set of 6 connecting rods for Nissan VR38DETT applications. Manufacturer data specifies a 6.496 in center-to-center length, 0.9055 in wrist pin diameter, 56 mm crank journal diameter. This configuration uses ARP 625+ rod bolts in a 3/8 x 1.600 size. BoostLine standard-series rods use forged 4340 steel and the brand’s patented three-pocket design for demanding performance engine combinations. Listed weight with bolts is 702 g.

Key Features & Specs:

• Brand: BoostLine
• Series: BoostLine
• Product Type: Connecting Rod Set
• Engine Application: Nissan VR38DETT
• Quantity: 6
• Material: Forged 4340 steel
• Center-to-Center Length: 6.496 in
• Wrist Pin Diameter: 0.9055 in
• Crank Journal Diameter: 56 mm
• Big End Bore: 2.3231 in
• Big End Width: 0.8975 in
• Small End Width: 0.8975 in
• Rod Bolt Material: ARP 625+
• Rod Bolt Size: 3/8 x 1.600
• Rod Bolt Part Number: BT61601-625
• Weight With Bolts: 702 g
• Manufacturer Part Number: NI6496-905+
• UPC: 00193564024275

Fitment:

• Nissan VR38DETT engine applications

Series Description: BoostLine connecting rods are forged from 4340 steel and use the brand’s patented three-pocket beam design, developed to support high cylinder-pressure performance applications while controlling rotating mass. The standard BoostLine series is positioned for demanding forced-induction, nitrous, street-performance, and racing combinations. Application-specific ARP fasteners and dimensional CMM inspection are part of the product program; exact dimensions and bolt grade vary by part number.
