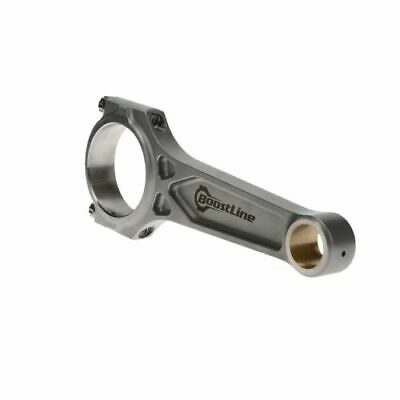

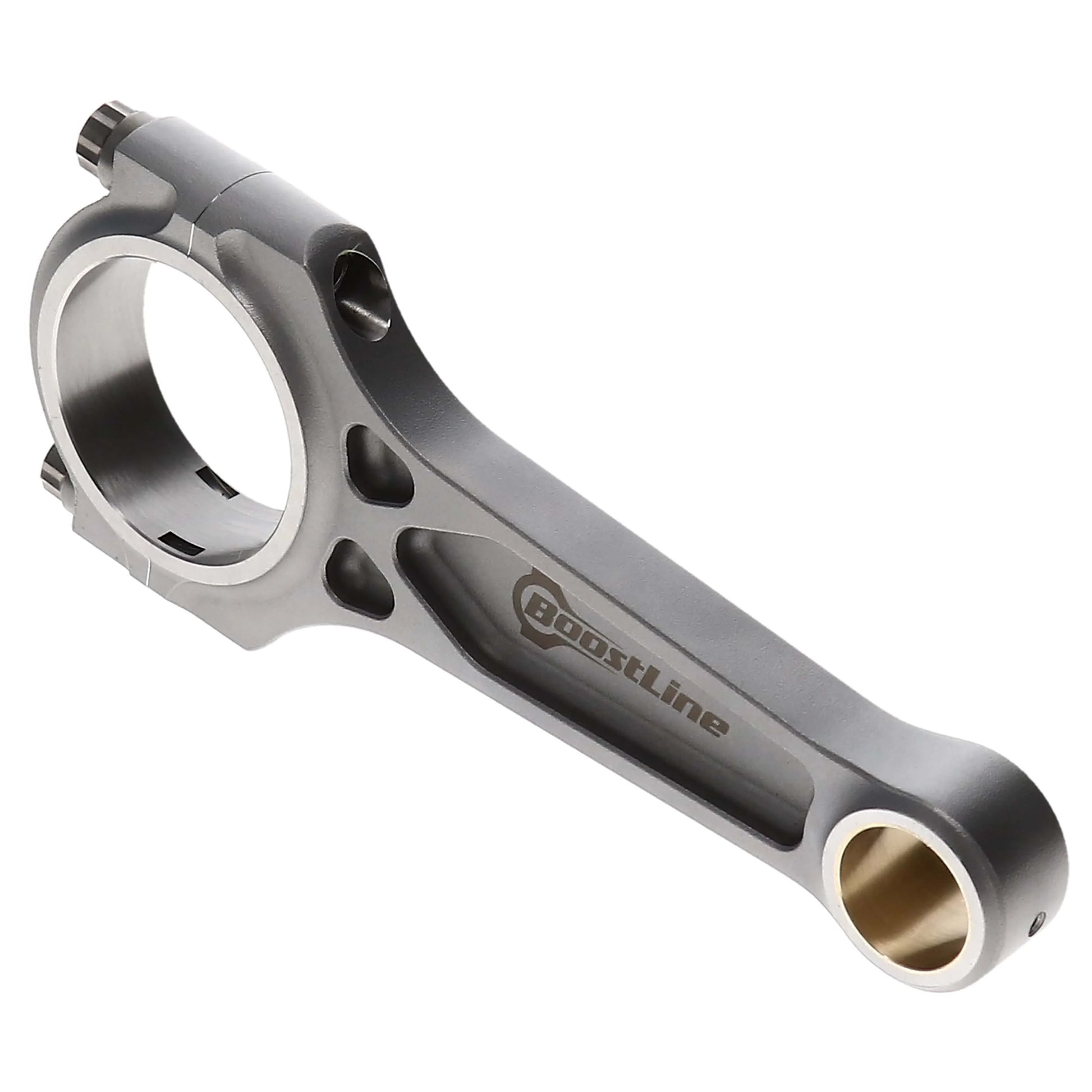

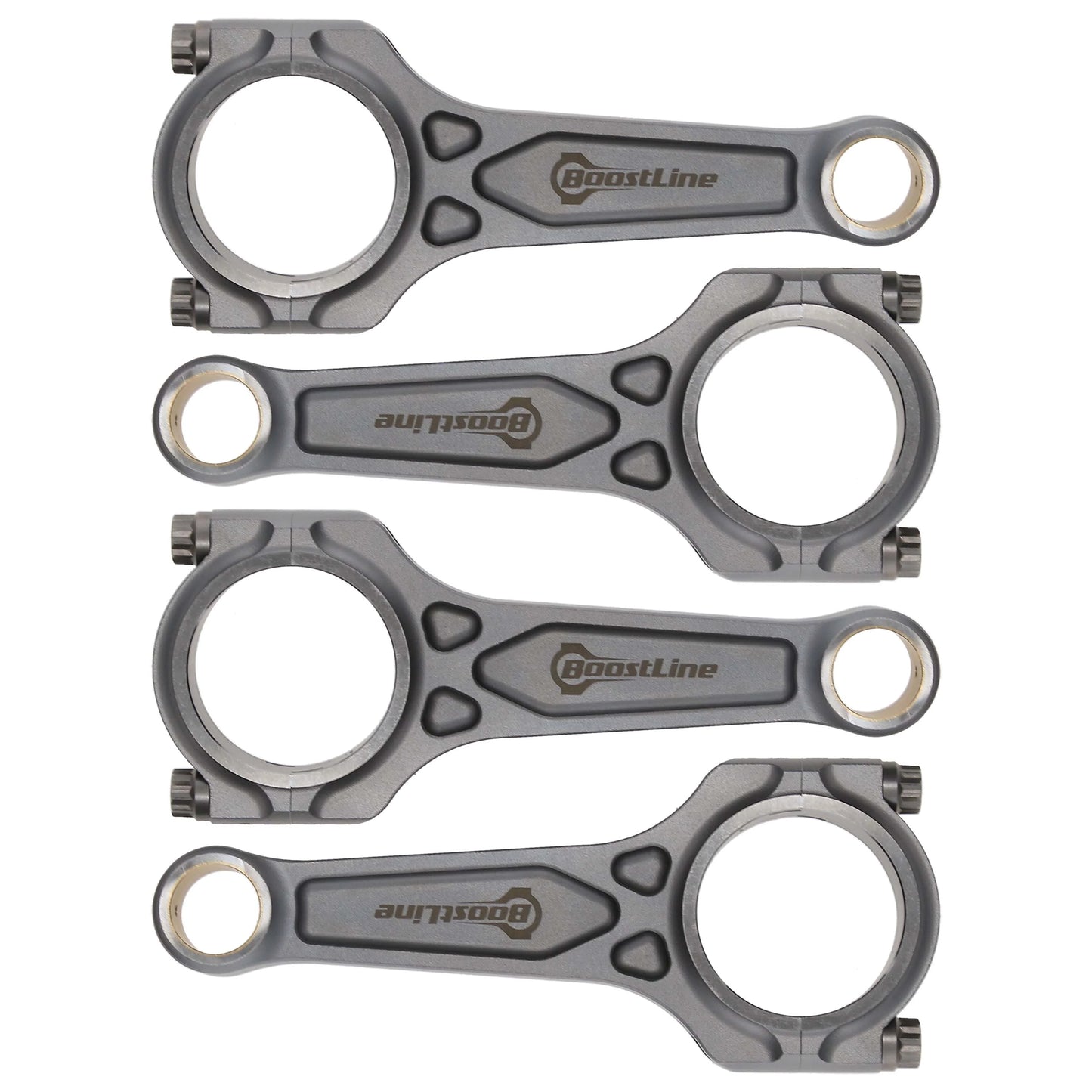

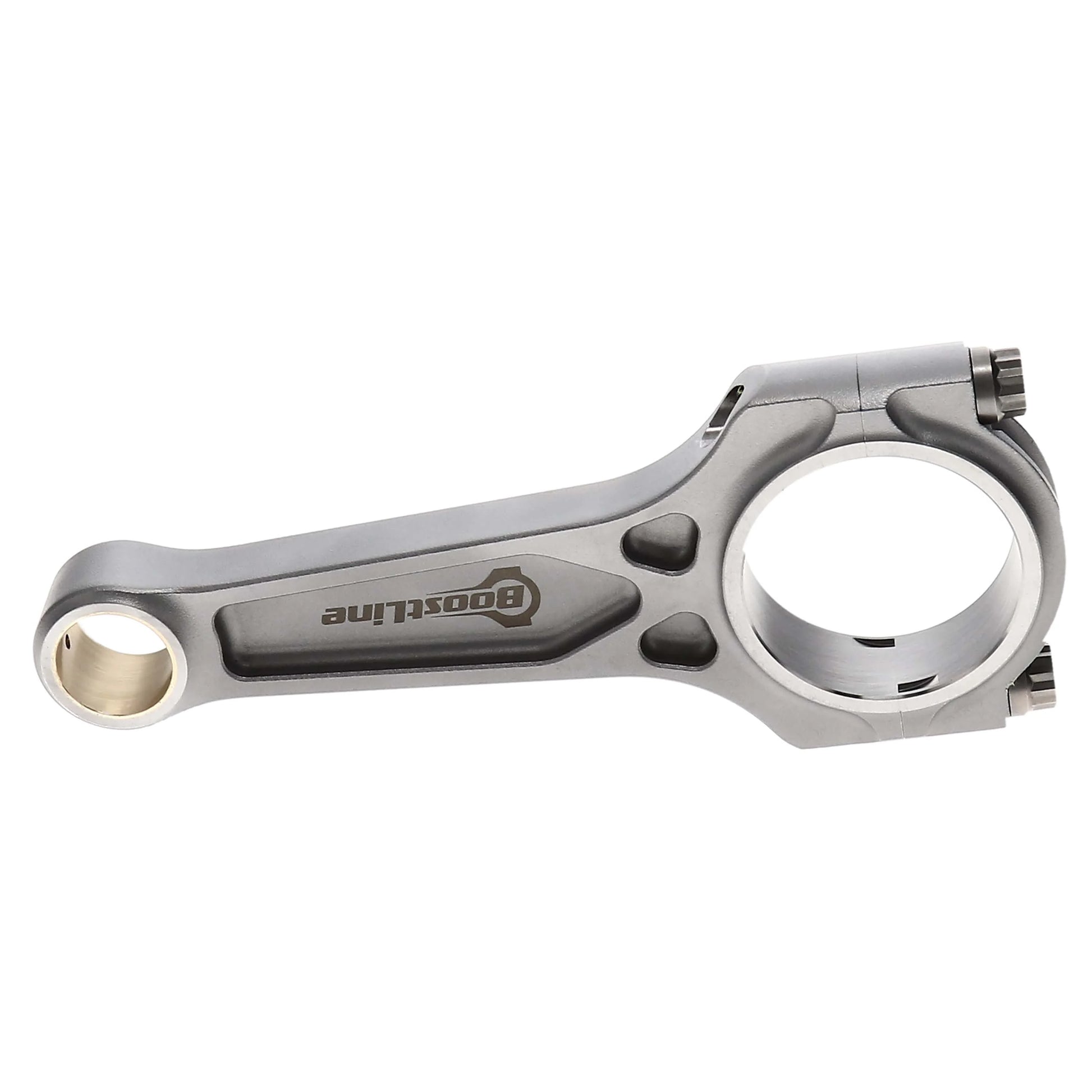

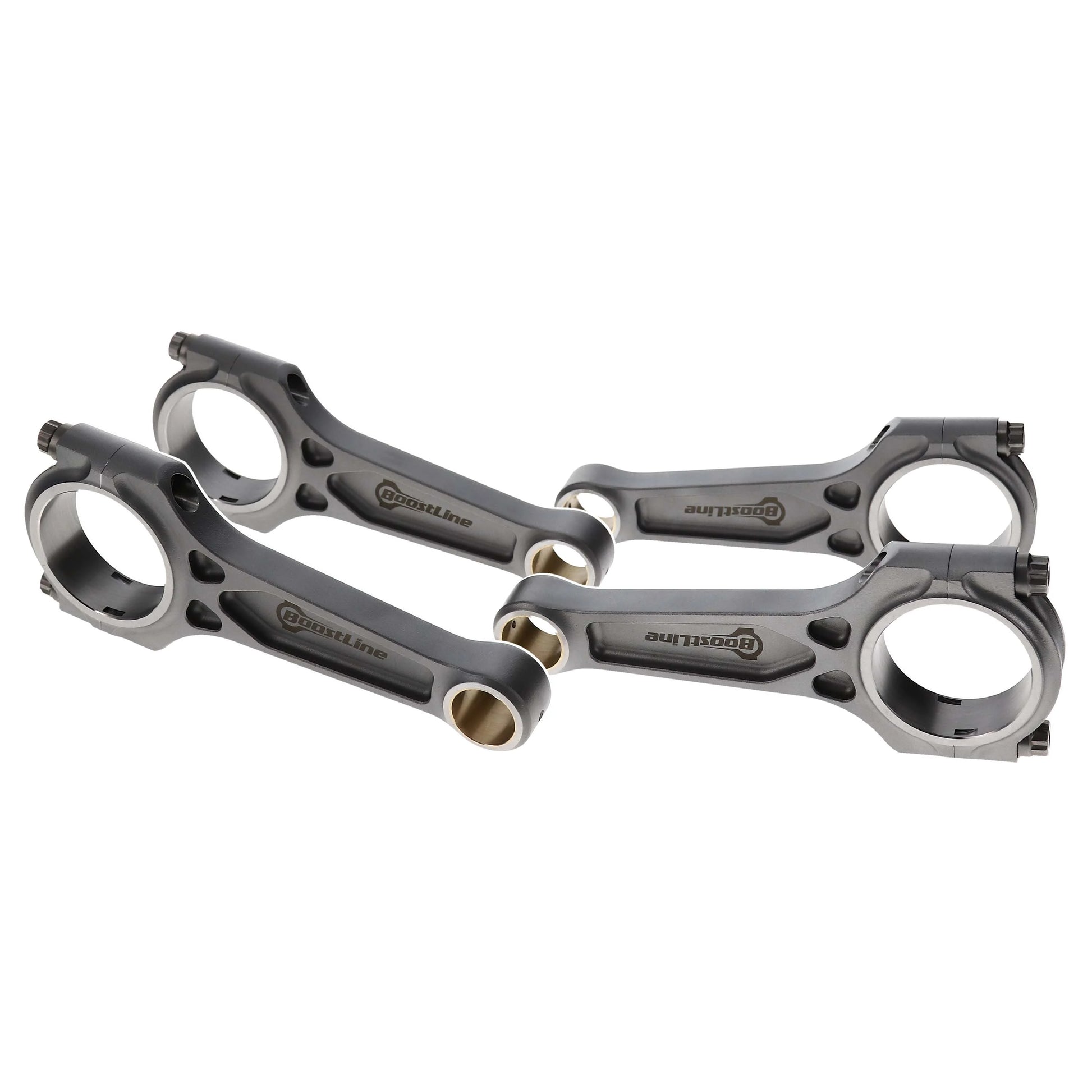

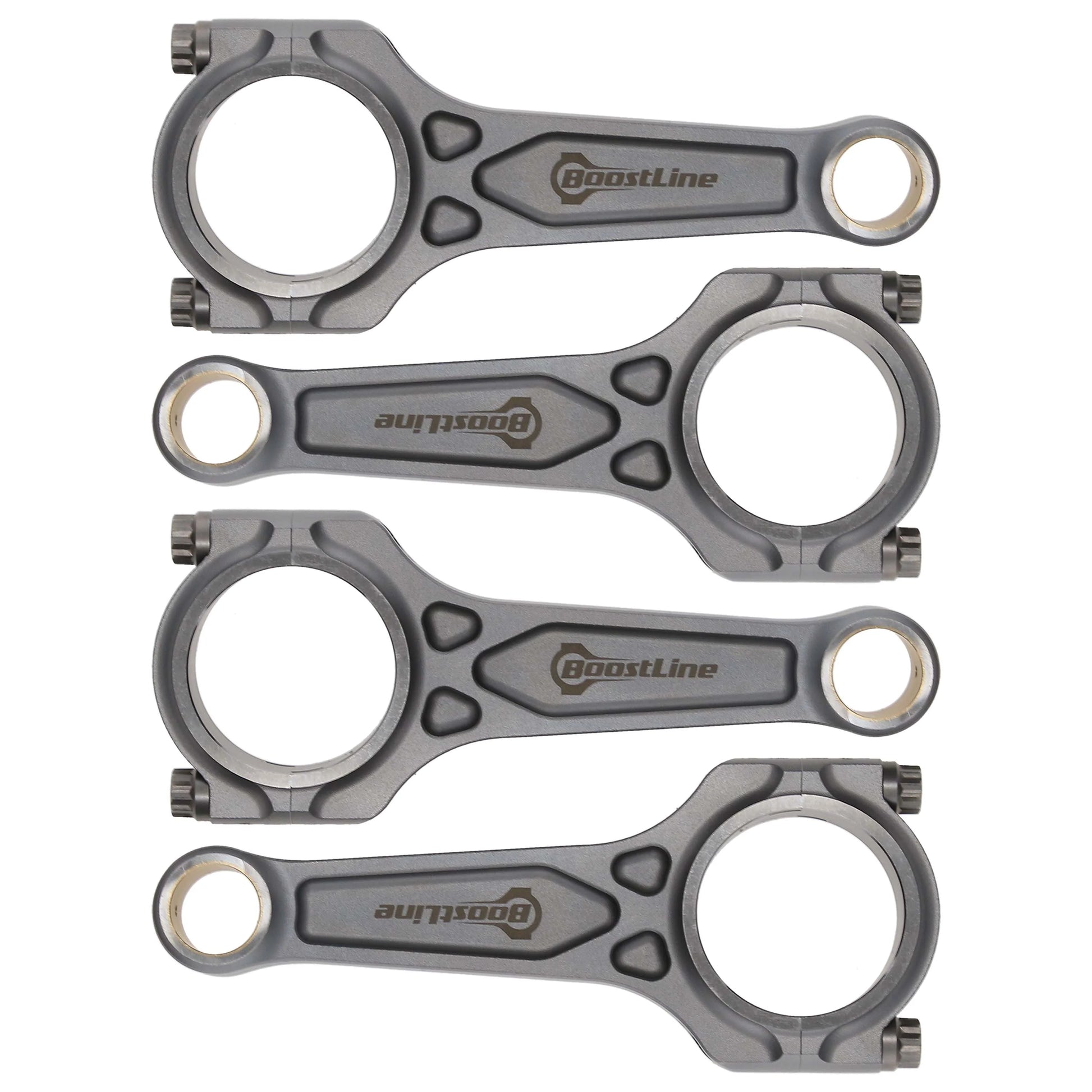

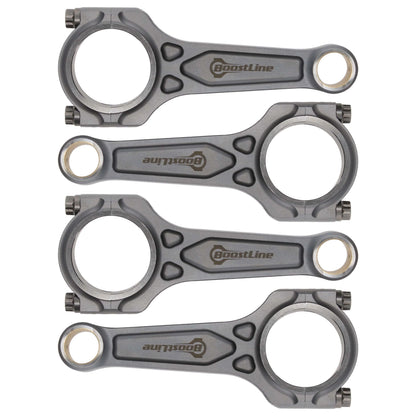

BoostLine VW 2.0T TSI Connecting Rod Set 144 mm Length - VW5669-866+

The BoostLine VW 2.0T TSI Connecting Rod Set is purpose-built for high-boost, nitrous, and extreme horsepower Volkswagen 2.0T TSI applications using a 22 mm wrist pin. Forged from ultra-strong 4340 steel, these I-beam rods feature BoostLine’s patented three-pocket design for the strength and stability needed in serious boosted builds. Rated for 1000+ horsepower capability, this rod set includes 3/8 x 1.600 in ARP 625+ custom aged fasteners, high-quality APMCO bronze pin bushings, and a 26-point detailed CMM inspection report for precision and confidence during assembly.

Key Features & Specs:

• Brand: BoostLine
• Part Number: VW5669-866+
• Engine Fitment: VW 2.0T TSI with 22 mm Pin
• Rod Type: I-Beam
• Material: Forged 4340 Steel
• Length Center Bore To Center Bore: 144.00 mm
• Weight: 617 g
• Wrist Pin Diameter: 22.00 mm
• Journal Size: 47.80 mm
• Big End Bore: 1.9925 in
• Big End Width: 21.89 mm
• Small End Width: 0.862 in
• Rod Bolts: ARP 625+ Custom Aged Fasteners
• Bolt Size: 3/8 x 1.600 in
• Bolt Part Number: BT61501-625
• Pin Bushing: APMCO Bronze
• Design: Patented Three-Pocket I-Beam
• Horsepower Capability: 1000+ HP

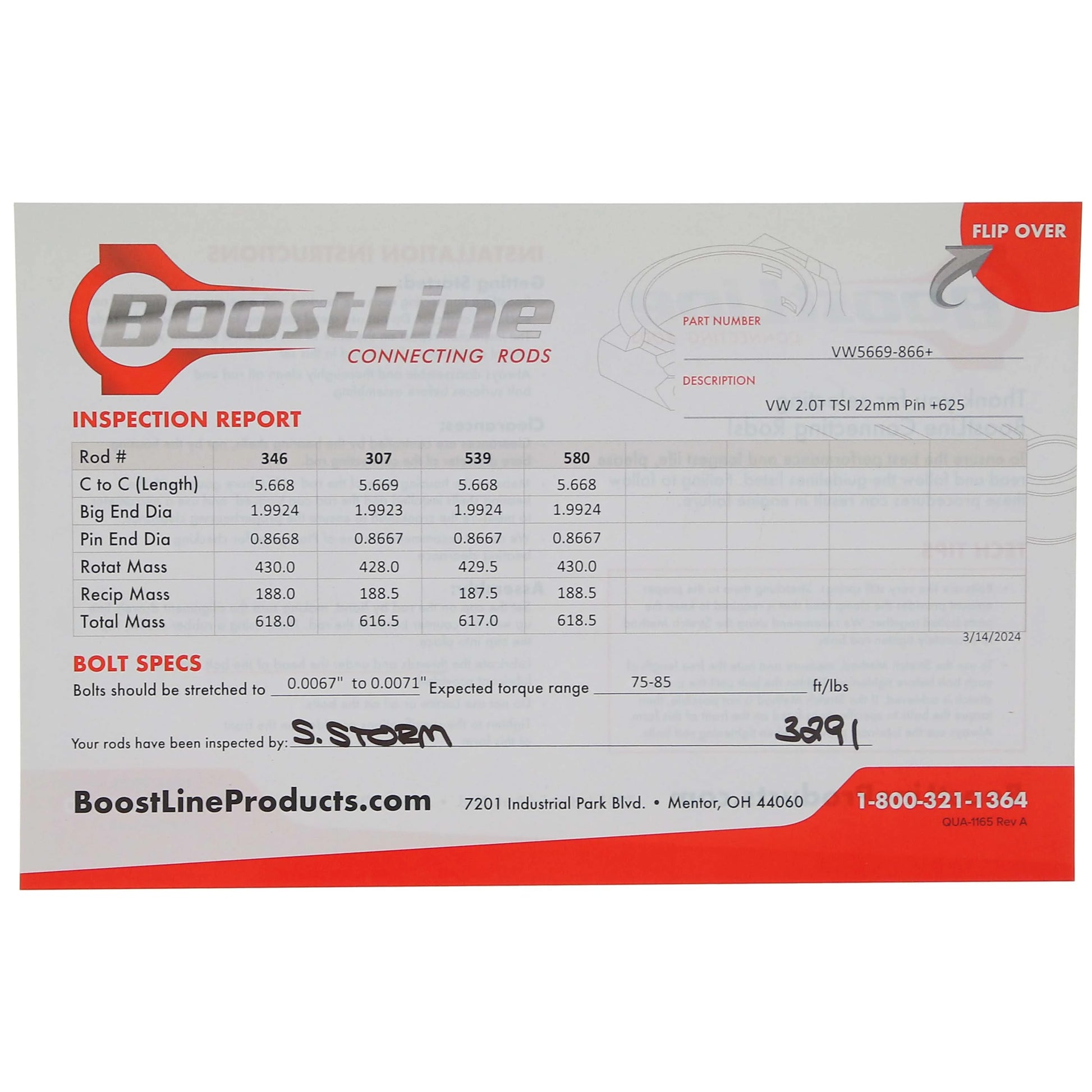

• Inspection: 26-Point Detailed CMM Inspection Report Included
• Emissions Code: 3
