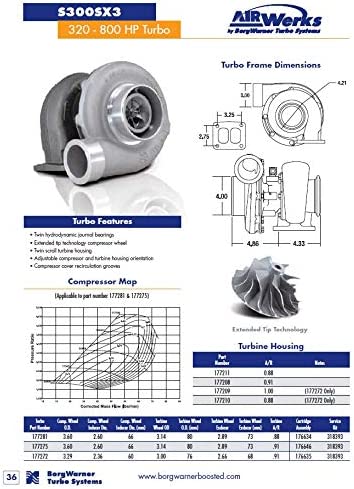

177275 - AKA S366 AKA 9180 AKA 66/73 AKA 66-73
Twin hydrodynamic journal bearings
Extended tip technology compressor wheel
Standard 3 pad thrust bearing, Optional 6 pad 360 degree
The bearing housings are not water-cooled and have a 1/4"NPT oil inlet. The oil drain is the standard T3-T4 with 3/8-16
Engineered specifically for drag racing, pulling and road racing, AirWerks turbochargers have earned a reputation as robust, brute-force induction systems. Looking for a no-frills replacement? Want to upgrade your turbocharger? Working with limited space? BorgWarner’s AirWerks turbochargers are the perfect go-to product for many applications.
With a twin hydrodynamic journal bearing design, AirWerks turbochargers feature an effective high-pressure ratio compressor stage, extended-tip technology and a high-efficiency turbine stage. The configuration provides ultra-fast response and more than 70 PSI of boost.
*Airwerks S300SX Series Features*
* Twin hydrodynamic journal bearings
* Extended tip technology compressor wheel
* Twin scroll turbine housing options available
* Adjustable compressor and turbine housing orientation
* Compressor cover recirculation grooves
* Optional 90 Degree Outlet Housing
Bearing Housing Material: Cast Iron
Comp Wheel Inducer (in): 2.6 (66mm)
Comp Wheel OD (in): 3.6
HP Range: 320-800
Turbine Housing A/R: 0.91
Turbine Housing Inlet: T4
Turbine Wheel Exducer (in): 2.89 (73mm)
Turbine Wheel OD (in): 3.14 (80mm)
NOT CARB-APPROVED. ILLEGAL TO USE OR INSTALL IN CALIFORNIA. IF YOU LIVE IN CA, WE CANNOT SHIP YOU THIS ITEM AND YOU WILL BE CHARGED A 10% CANCELLATION FEE IF YOU ORDER. PLEASE LOOK FOR OTHER PRODUCTS WITH CARB APPROVAL.
