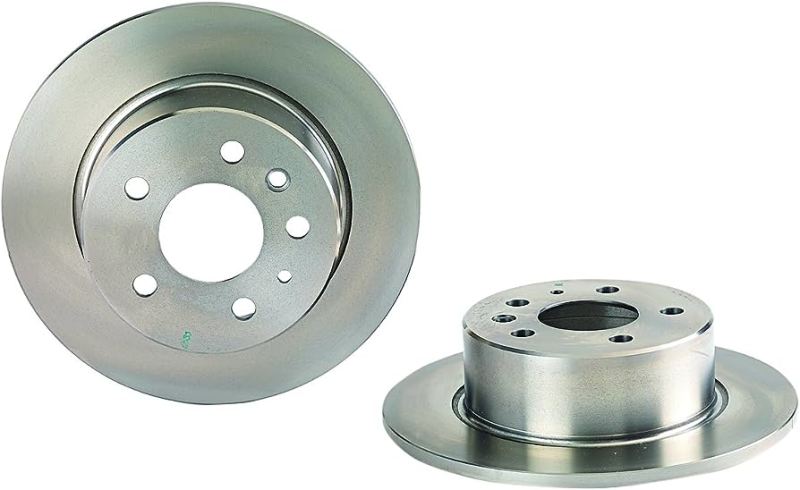

Brembo Prime UV Coated Rear Brake Rotor 303 x 10 mm - 08.C425.11

Rear Rotor | 303 x 10 mm | Mazda | CX-5 | MX-30 EV

The Brembo Prime 08.C425.11 UV coated rear rotor is a practical factory-style replacement for worn brakes on your Mazda CX-5 or MX-30 EV. It is a good choice for routine brake service when you want to keep the original brake setup and get your vehicle back on the road with an OE-equivalent disc. The UV coating helps resist corrosion on the hub and outer edges, keeping the visible areas cleaner through everyday exposure to moisture and road grime. The 303 x 10 mm dimensions, 68 mm center bore and 40 mm overall height are important checks when matching the existing rear brakes. For matching 303 x 10 mm solid rear brakes; trim and model-year details are listed below.

Key Features & Specs:

• Brand/series: Brembo Prime; OE-equivalent replacement design
• Part number: 08.C425.11
• Axle position: Rear
• UV coating: helps resist corrosion on the rotor hub and outer edges
• Outside diameter: 303 mm
• Nominal thickness: 10 mm
• Minimum/discard thickness: 8 mm
• Overall height: 40 mm
• Center bore: 68 mm
• Hat inside diameter: 142.8 mm
• Rotor type: Solid
• Braking surface: Smooth
• Braking surface material: Gray Cast Iron
• Construction: Full cast
• Rotor mounting hole count: 5
• ABS tone ring included: No
• Grade: Premium
• Rust-resistant coating: Yes
• Finish: Coated

Fitment:

• For matching 303 x 10 mm solid rear brakes; trim and model-year details are listed below.
• 2025 Mazda CX-5 — 2.5 Carbon Turbo; L4 2,488 cc
• 2022–2025 Mazda CX-5 — 2.5 S, 2.5 Turbo; L4 2,488 cc
• 2022–2024 Mazda CX-5 — 2.5 S Carbon Edition, 2.5 Turbo Signature; L4 2,488 cc
• 2021 Mazda CX-5 — Carbon Edition, Carbon Edition Turbo; L4 2,488 cc
• 2017 Mazda CX-5 — Grand Select; L4 2,488 cc
• 2013 Mazda CX-5 — Grand Touring, Touring; L4 1,998 cc
• 2014–2021 Mazda CX-5 — Grand Touring, Touring; L4 2,488 cc
• 2019–2021 Mazda CX-5 — Grand Touring Reserve, Signature; L4 2,488 cc
• 2019 Mazda CX-5 — Signature; L4 2,191 cc
• 2013–2016 Mazda CX-5 — Sport; L4 1,998 cc
• 2015–2021 Mazda CX-5 — Sport; L4 2,488 cc
• 2022–2023 Mazda MX-30 EV — Base, Premium Plus
• 2013–2021 Mazda CX-5 — Grand Touring, Sport, Touring

Match the part number, rotor dimensions and factory brake package before ordering. Replace brake rotors in axle pairs and follow the vehicle manufacturer’s installation and bedding instructions.
