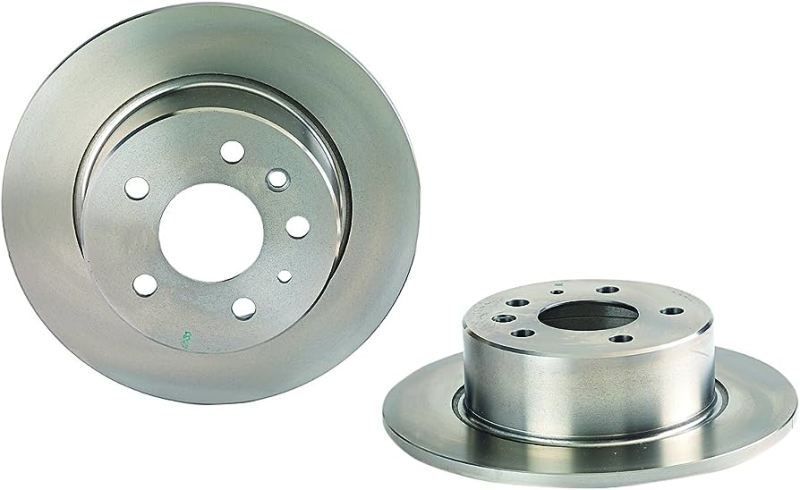

Brembo Prime UV Coated Rear Brake Rotor 320 x 20 mm - 09.C938.11

Rear Rotor | 320 x 20 mm | Volvo | S60 | S90 | XC60 | XC90

The Brembo Prime 09.C938.11 UV coated rear rotor is a practical factory-style replacement for worn brakes on your Volvo sedan, wagon or SUV. It is a good choice for routine brake service when you want to keep the original brake setup and get your vehicle back on the road with an OE-equivalent disc. The UV coating helps resist corrosion on the hub and outer edges, keeping the visible areas cleaner through everyday exposure to moisture and road grime. The 320 x 20 mm dimensions, 64 mm center bore and 43 mm overall height are important checks when matching the existing rear brakes. For matching 320 x 20 mm vented rear brakes; verify the vehicle brake package.

Key Features & Specs:

• Brand/series: Brembo Prime; OE-equivalent replacement design
• Part number: 09.C938.11
• Axle position: Rear
• UV coating: helps resist corrosion on the rotor hub and outer edges
• Outside diameter: 320 mm
• Nominal thickness: 20 mm
• Minimum/discard thickness: 17.5 mm
• Overall height: 43 mm
• Center bore: 64 mm
• Hat inside diameter: 141 mm
• Rotor type: Vented
• Braking surface: Smooth
• Braking surface material: Gray Cast Iron
• Construction: Full cast
• Rotor mounting hole count: 5
• ABS tone ring included: No
• Grade: Premium
• Finish: Coated

Fitment:

• For matching 320 x 20 mm vented rear brakes; verify the vehicle brake package.
• 2022 Volvo S60 — B5 Inscription, B5 Momentum, B5 R-Design
• 2021 Volvo S60 — Recharge R-Design
• 2019–2021 Volvo S60 — T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design
• 2019–2020 Volvo S60 — T8 Inscription, T8 R-Design
• 2020 Volvo S60 — T8 Polestar
• 2021–2022 Volvo S60 — T8 Recharge Inscription, T8 Recharge Polestar, T8 Recharge R-Design, T8 Recharge R-Design Expression
• 2022 Volvo S90 — B6 Inscription, B6 Momentum, B6 R-Design
• 2017 Volvo S90 — T5 Inscription
• 2017–2019 Volvo S90 — T5 Momentum
• 2017–2021 Volvo S90 — T6 Inscription, T6 Momentum
• 2020–2021 Volvo S90 — T6 R-Design
• 2018–2020 Volvo S90 — T8 Inscription
• 2018–2019 Volvo S90 — T8 Momentum
• 2020 Volvo S90 — T8 R-Design
• 2021–2022 Volvo S90 — T8 Recharge Inscription, T8 Recharge R-Design
• 2020–2021 Volvo V60 — T5 Inscription
• 2019–2021 Volvo V60 — T5 Momentum, T5 R-Design
• 2019 Volvo V60 — T6 Inscription, T6 Momentum, T6 R-Design
• 2020 Volvo V60 — T8 Polestar
• 2021–2022 Volvo V60 — T8 Recharge Polestar
• 2021–2022 Volvo V60 Cross Country — T5
• 2020 Volvo V60 Cross Country — T5 Inscription
• 2018–2021 Volvo V90 — T5 Inscription, T5 R-Design, T6 Inscription, T6 R-Design
• 2022 Volvo V90 Cross Country — B6
• 2018–2019 Volvo V90 Cross Country — T5, T6 Ocean Race
• 2017–2021 Volvo V90 Cross Country — T6
• 2022 Volvo XC60 — B5 Inscription, B5 Momentum, B5 R-Design, B6 Inscription, B6 R-Design
• 2018–2021 Volvo XC60 — T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design
• 2018–2020 Volvo XC60 — T8 Inscription, T8 Momentum, T8 R-Design
• 2020 Volvo XC60 — T8 Polestar
• 2021–2022 Volvo XC60 — T8 Recharge Inscription, T8 Recharge Inscription Expression, T8 Recharge Polestar, T8 Recharge R-Design
• 2016 Volvo XC90 — T5 Inscription, T6 First Edition
• 2016–2022 Volvo XC90 — T5 Momentum, T6 Inscription, T6 Momentum
• 2016–2021 Volvo XC90 — T5 R-Design, T6 R-Design
• 2017–2019 Volvo XC90 — T8 Excellence
• 2016–2020 Volvo XC90 — T8 Inscription, T8 R-Design
• 2016, 2018–2020 Volvo XC90 — T8 Momentum
• 2021–2022 Volvo XC90 — T8 Recharge Inscription, T8 Recharge Inscription Expression, T8 Recharge R-Design

Match the part number, rotor dimensions and factory brake package before ordering. Replace brake rotors in axle pairs and follow the vehicle manufacturer’s installation and bedding instructions.
