Brembo Prime UV Coated Rear Brake Rotor 360 x 26 mm - 09.A822.11

Rear Rotor | 360 x 26 mm | Mercedes-Benz | C63 AMG | CLS63 AMG | E63 AMG

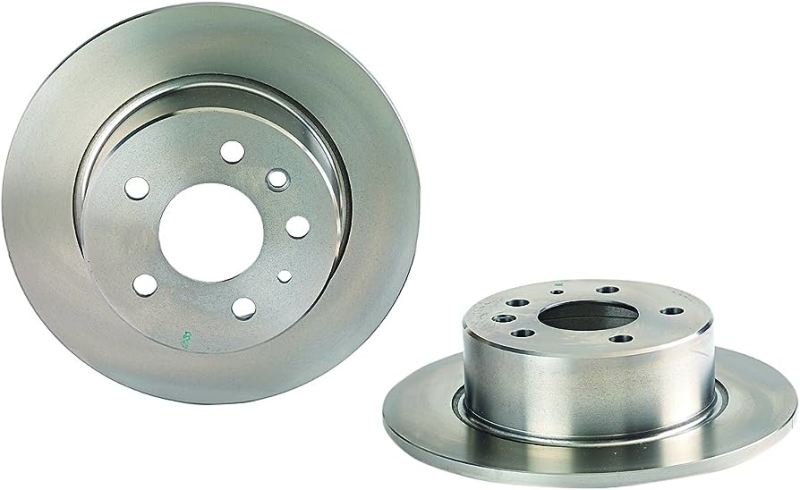

The Brembo Prime 09.A822.11 UV coated rear rotor is a practical factory-style replacement for worn brakes on your Mercedes-Benz AMG. It is a good choice for routine brake service when you want to keep the original brake setup and get your vehicle back on the road with an OE-equivalent disc. The UV coating helps resist corrosion on the hub and outer edges, keeping the visible areas cleaner through everyday exposure to moisture and road grime. Its high-carbon cast iron braking surface helps damp vibration for braking comfort. Pillar ventilation supports cooling and resistance to thermal cracking. The 360 x 26 mm dimensions, 67 mm center bore and 68 mm overall height are important checks when matching the existing rear brakes. Requires the matching 360 x 26 mm rear brake package; check the 68 mm overall height.

Key Features & Specs:

• Brand/series: Brembo Prime; OE-equivalent replacement design
• Part number: 09.A822.11
• Axle position: Rear
• UV coating: helps resist corrosion on the rotor hub and outer edges
• High-carbon cast iron: supports vibration damping and braking comfort
• PVT pillar ventilation: promotes cooling and resistance to thermal cracking
• Outside diameter: 360 mm
• Nominal thickness: 26 mm
• Minimum/discard thickness: 24 mm
• Overall height: 68 mm
• Center bore: 67 mm
• Rotor type: Vented
• Braking surface: Slotted and cross-drilled
• Braking surface material: High Carbon Cast Iron
• Construction: Full cast
• Rotor mounting hole count: 5
• Fastening screws included: Yes
• ABS tone ring included: No
• Grade: Premium
• Rust-resistant coating: Yes
• Finish: Coated

Fitment:

• Requires the matching 360 x 26 mm rear brake package; check the 68 mm overall height.
• 2012 Mercedes-Benz C63 AMG — Black Series
• 2014 Mercedes-Benz CLS63 AMG — 4Matic
• 2012–2013 Mercedes-Benz CLS63 AMG — Base
• 2014–2018 Mercedes-Benz CLS63 AMG S — 4Matic
• 2014–2015 Mercedes-Benz E63 AMG — 4Matic
• 2010–2013 Mercedes-Benz E63 AMG — Base
• 2014–2016 Mercedes-Benz E63 AMG S — 4Matic

Match the part number, rotor dimensions and factory brake package before ordering. Replace brake rotors in axle pairs and follow the vehicle manufacturer’s installation and bedding instructions.
