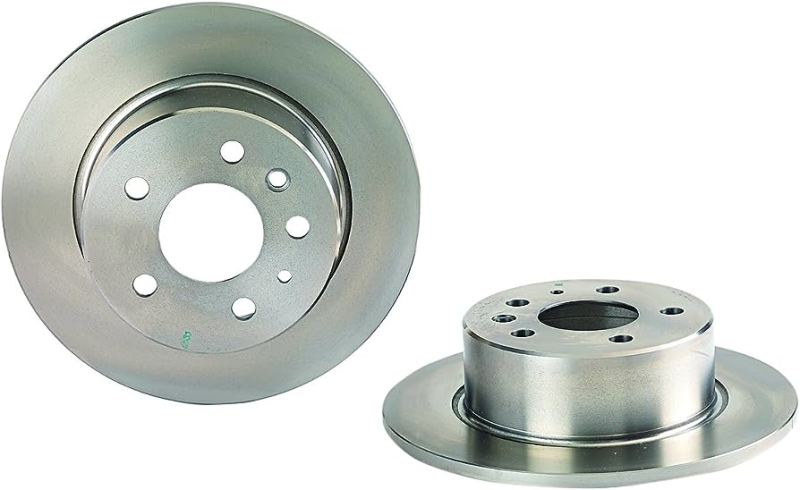

Brembo Prime OE Rear Brake Rotor 281 x 9.6 mm - 08.3441.24

Name: Brembo Prime OE Rear Brake Rotor 281 x 9.6 mm - 08.3441.24
Brand: Brembo OE
SKU: BRE08.3441.24
Price: 40.85 USD
Availability: InStock

$40.85 USD

Shipping calculated at checkout.

Brand: Brembo OE

SKU: BRE08.3441.24

Part Number: 08.3441.24

Availability: In stock

Product Type: Brake Rotors - OE

Rear Rotor | 281 x 9.6 mm | Volvo | 240 | 740 | 940 | 960 The Brembo Prime 08.3441.24 rear rotor is a straightforward factory-style replacement for worn...

Quantity

Free* Shipping on Orders Over $159

Easy 30 Days- No Hassle Returns

37,000+ 5 Star Reviews

MFG Fitment Guarantee

View full details

Description

Rear Rotor | 281 x 9.6 mm | Volvo | 240 | 740 | 940 | 960

The Brembo Prime 08.3441.24 rear rotor is a straightforward factory-style replacement for worn brakes on your classic Volvo. It is a practical choice for routine maintenance when you want to keep the existing brake setup and return the vehicle to regular road use. The gray cast iron braking surface and application-specific dimensions provide an OE-equivalent disc for the matching factory hardware. This version has an oiled finish, which protects the disc in storage and must be cleaned as directed during installation. The 281 x 9.6 mm dimensions, 68 mm center bore and 73 mm overall height are important checks when matching the existing rear brakes. For matching 281 x 9.6 mm solid rear brakes; exact model and trim years are listed below.

Key Features & Specs:

Brand/series: Brembo Prime; OE-equivalent replacement design
Part number: 08.3441.24
Axle position: Rear
Outside diameter: 281 mm
Nominal thickness: 9.6 mm
Minimum/discard thickness: 8.4 mm
Overall height: 73 mm
Center bore: 68 mm
Hat inside diameter: 160.1 mm
Hat outside diameter: 171.5 mm
Offset: 66.7 mm
Mounting bolt circle diameter: 108 mm
Mounting hole diameter: 16.5 mm
Rotor type: Solid
Braking surface: Smooth
Braking surface material: Gray Cast Iron
Construction: Composite
Rotor mounting hole count: 5
Fastening screws included: Yes
ABS tone ring included: No
Grade: Premium
Finish: Oiled
Manufacturer catalog tightening torque: 110 Nm; follow the vehicle service procedure for the relevant fasteners

Fitment:

For matching 281 x 9.6 mm solid rear brakes; exact model and trim years are listed below.
1975 Volvo 164 — Base
1974 Volvo 164 — E, S
1990–1993 Volvo 240 — Base
1990 Volvo 240 — DL
1992 Volvo 240 — GL
1991 Volvo 240 — SE
1976–1979 Volvo 242 — Base
1980–1984 Volvo 242 — DL
1975, 1981 Volvo 242 — GL
1981–1984 Volvo 242 — GLT
1981 Volvo 242 — Turbo
1976–1978, 1984 Volvo 244 — Base
1979–1982, 1984–1989 Volvo 244 — DL
1975, 1984–1989 Volvo 244 — GL
1985 Volvo 244 — Turbo
1976–1978, 1984–1985 Volvo 245 — Base
1979–1983, 1986–1989 Volvo 245 — DL
1986–1989 Volvo 245 — GL
1980 Volvo 262 — Base
1978–1979 Volvo 262 — C
1976, 1981 Volvo 262 — GL
1977 Volvo 264 — GL
1982 Volvo 264 — GLE
1977 Volvo 265 — GL
1989–1992 Volvo 740 — Base
1989–1990 Volvo 740 — GL
1985–1990 Volvo 740 — GLE
1991–1992 Volvo 740 — T
1985 Volvo 745 — GLE
1985, 1989–1990 Volvo 760 — Base
1983–1990 Volvo 760 — GLE
1987 Volvo 780 — Base
1993–1995 Volvo 940 — Base
1992 Volvo 940 — GL
1991 Volvo 940 — GLE, SE
1991–1995 Volvo 940 — T
1992–1997 Volvo 960 — Base

Match the part number, rotor dimensions and factory brake package before ordering. Replace brake rotors in axle pairs and follow the vehicle manufacturer’s installation and bedding instructions.
