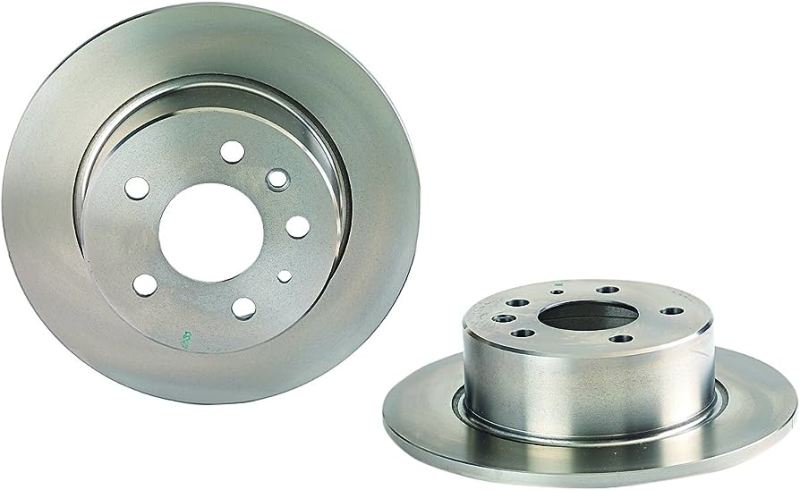

Brembo Prime OE Front Brake Rotor 263 x 22 mm - 09.4629.10

Name: Brembo Prime OE Front Brake Rotor 263 x 22 mm - 09.4629.10
Brand: Brembo OE
SKU: BRE09.4629.10
Price: 42.01 USD
Availability: InStock

$42.01 USD

Shipping calculated at checkout.

Brand: Brembo OE

SKU: BRE09.4629.10

Part Number: 09.4629.10

Availability: In stock

Product Type: Brake Rotors - OE

Front Rotor | 263 x 22 mm | Volvo | 240 | 242 | 244 | 245 The Brembo Prime 09.4629.10 front rotor is a straightforward factory-style replacement for worn...

Quantity

Free* Shipping on Orders Over $159

Easy 30 Days- No Hassle Returns

37,000+ 5 Star Reviews

MFG Fitment Guarantee

View full details

Description

Front Rotor | 263 x 22 mm | Volvo | 240 | 242 | 244 | 245

The Brembo Prime 09.4629.10 front rotor is a straightforward factory-style replacement for worn brakes on your classic Volvo 200-series. It is a practical choice for routine maintenance when you want to keep the existing brake setup and return the vehicle to regular road use. The gray cast iron braking surface and application-specific dimensions provide an OE-equivalent disc for the matching factory hardware. This version has an oiled finish, which protects the disc in storage and must be cleaned as directed during installation. The 263 x 22 mm dimensions, 68 mm center bore and 67 mm overall height are important checks when matching the existing front brakes. For matching 263 x 22 mm vented front brakes; solid-front brake applications require a different rotor.

Key Features & Specs:

Brand/series: Brembo Prime; OE-equivalent replacement design
Part number: 09.4629.10
Axle position: Front
Outside diameter: 263 mm
Nominal thickness: 22 mm
Minimum/discard thickness: 20.4 mm
Overall height: 67 mm
Center bore: 68 mm
Hat inside diameter: 139 mm
Hat outside diameter: 149.5 mm
Offset: 60.8 mm
Mounting bolt circle diameter: 108 mm
Mounting hole diameter: 16.5 mm
Rotor type: Vented
Braking surface: Smooth
Braking surface material: Gray Cast Iron
Construction: Full cast
Rotor mounting hole count: 5
Fastening screws included: Yes
ABS tone ring included: No
Grade: Premium
Finish: Oiled
Manufacturer catalog tightening torque: 110 Nm; follow the vehicle service procedure for the relevant fasteners

Fitment:

For matching 263 x 22 mm vented front brakes; solid-front brake applications require a different rotor.
1990–1993 Volvo 240 — Base
1990 Volvo 240 — DL
1992 Volvo 240 — GL
1991 Volvo 240 — SE
1976–1979 Volvo 242 — Base
1980–1984 Volvo 242 — DL
1975, 1981 Volvo 242 — GL
1981–1982, 1984 Volvo 242 — GLT
1981 Volvo 242 — Turbo
1976–1978 Volvo 244 — Base
1979–1989 Volvo 244 — DL
1975, 1982–1989 Volvo 244 — GL
1982–1983 Volvo 244 — GLT
1985 Volvo 244 — Turbo
1975–1978, 1984–1985 Volvo 245 — Base
1979–1983, 1986–1989 Volvo 245 — DL
1982–1983, 1986–1989 Volvo 245 — GL
1981–1983 Volvo 245 — GLT
1980 Volvo 262 — Base
1978–1979 Volvo 262 — C
1976, 1981 Volvo 262 — GL
1976–1981 Volvo 264 — GL
1980–1982 Volvo 264 — GLE
1976 Volvo 265 — Base
1977–1979 Volvo 265 — GL
1980–1981 Volvo 265 — GLE

Match the part number, rotor dimensions and factory brake package before ordering. Replace brake rotors in axle pairs and follow the vehicle manufacturer’s installation and bedding instructions.
