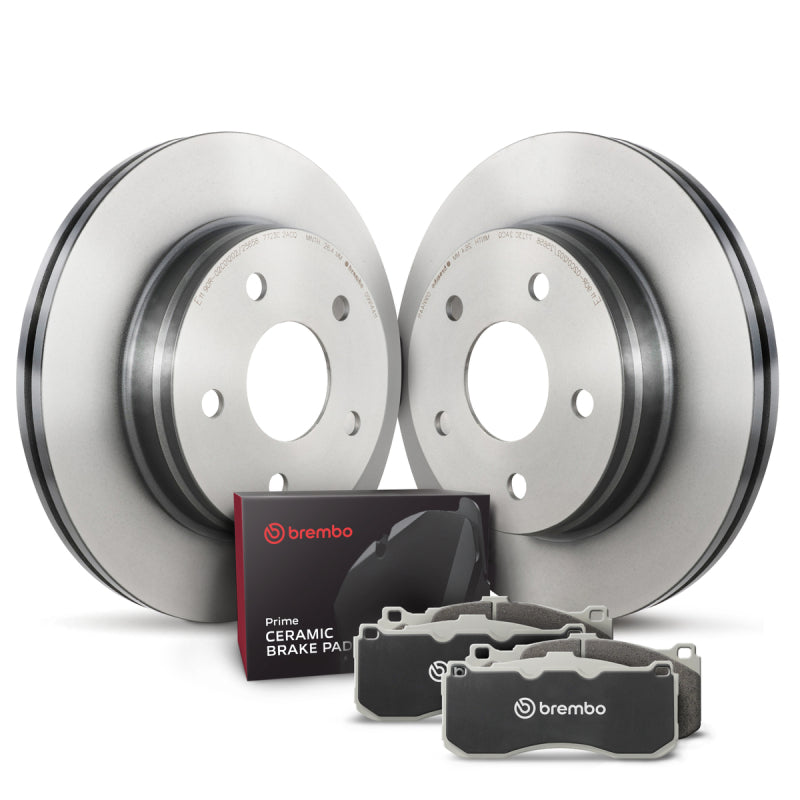

Brembo Prime Rear Rotor & Ceramic Pad Kit 310 x 22 mm - KT00825

Rear Brake Kit | 310 x 22 mm | Audi S3 | Q3 | VW Arteon | Golf R

The Brembo KT00825 rear rotor and ceramic pad kit is a practical way to refresh worn factory brakes on your Audi or Volkswagen with the matching brake package. It brings the rotor and pad information together for an OE-equivalent replacement, making it easier to check the parts needed for routine brake service. The 310 x 22 mm vented rotor uses high-carbon cast iron, while the supplied pad specification lists ceramic friction material and shims. The UV coating helps protect the rotor hub and outer edges from corrosion and keeps those visible areas looking cleaner. The Teves brake-system designation is a key fitment detail, so match the existing calipers and pad shape as well as the vehicle year and trim. Requires the 310 x 22 mm vented rear rotor package and matching Teves pad/caliper system.

Key Features & Specs:

• Brand/series: Brembo Prime; OE-equivalent replacement design
• Part number: KT00825
• Axle position: Rear
• Rotor component: 09.A200.11; pad component: P85124N
• UV coating: helps resist corrosion on the rotor hub and outer edges
• High-carbon cast iron: supports vibration damping and braking comfort
• Outside diameter: 310 mm
• Nominal thickness: 22 mm
• Minimum/discard thickness: 20 mm
• Overall height: 48 mm
• Center bore: 65 mm
• Hat inside diameter: 169.1 mm
• Rotor type: Vented
• Braking surface: Smooth
• Braking surface material: High Carbon Cast Iron
• Construction: Full cast
• Rotor mounting hole count: 5
• Fastening screws included: Yes
• ABS tone ring included: No
• Grade: Premium
• Rust-resistant coating: Yes
• Finish: Coated
• Manufacturer catalog tightening torque: 120 Nm; follow the vehicle service procedure for the relevant fasteners
• Chamfered Edges: No
• Pad Quantity: 4
• Prepared For Pad Wear Sensor: No
• Pad Shim Color: Black
• Outer Pad Height: 61.30 mm
• Inner Pad Height: 56.40 mm
• Outer Pad Width: 123.00 mm
• Inner Pad Width: 123.00 mm
• Outer Pad Overall Thickness: 16.40 mm
• Inner Pad Overall Thickness: 16.40 mm
• Pad/caliper brake system: Teves
• Pad Wear Sensor Included: No
• Pad friction material: Ceramic
• Pad grade: Premium
• Pad Shims Included: Yes
• Brake Lubricant Included: Yes
• FMSI Number: 8996-D1761

Fitment:

• Requires the 310 x 22 mm vented rear rotor package and matching Teves pad/caliper system.
• 2015–2020 Audi A3 Quattro — Premium, Premium Plus
• 2015–2019 Audi A3 Quattro — Prestige
• 2019–2023 Audi Q3 — Premium, Premium Plus
• 2019 Audi Q3 — Prestige
• 2020–2022 Audi Q3 — S-Line Premium, S-Line Premium Plus
• 2020 Audi Q3 — S-Line Prestige
• 2020 Audi S3 — Premium
• 2015–2020 Audi S3 — Premium Plus
• 2015–2019 Audi S3 — Prestige
• 2021–2022 Audi TT RS Quattro — Base
• 2022 Audi TT RS Quattro — Heritage Edition
• 2016–2023 Audi TTS Quattro — Base
• 2019–2021 Volkswagen Arteon — SE
• 2019, 2022–2023 Volkswagen Arteon — SE R-Line
• 2019–2020 Volkswagen Arteon — SEL
• 2019 Volkswagen Arteon — SEL Premium
• 2019–2023 Volkswagen Arteon — SEL Premium R-Line, SEL R-Line
• 2018 Volkswagen Atlas — Launch Edition
• 2018–2020 Volkswagen Atlas — S, SE, SEL, SEL Premium
• 2019 Volkswagen Atlas — SE R-Line
• 2019–2020 Volkswagen Atlas — SEL R-Line
• 2020 Volkswagen Atlas Cross Sport — S, SE, SE R-Line, SEL, SEL Premium, SEL Premium R-Line, SEL R-Line
• 2015–2019 Volkswagen Golf R — Base

Match the part number, rotor dimensions and factory brake package before ordering. Replace brake rotors in axle pairs and follow the vehicle manufacturer’s installation and bedding instructions.
