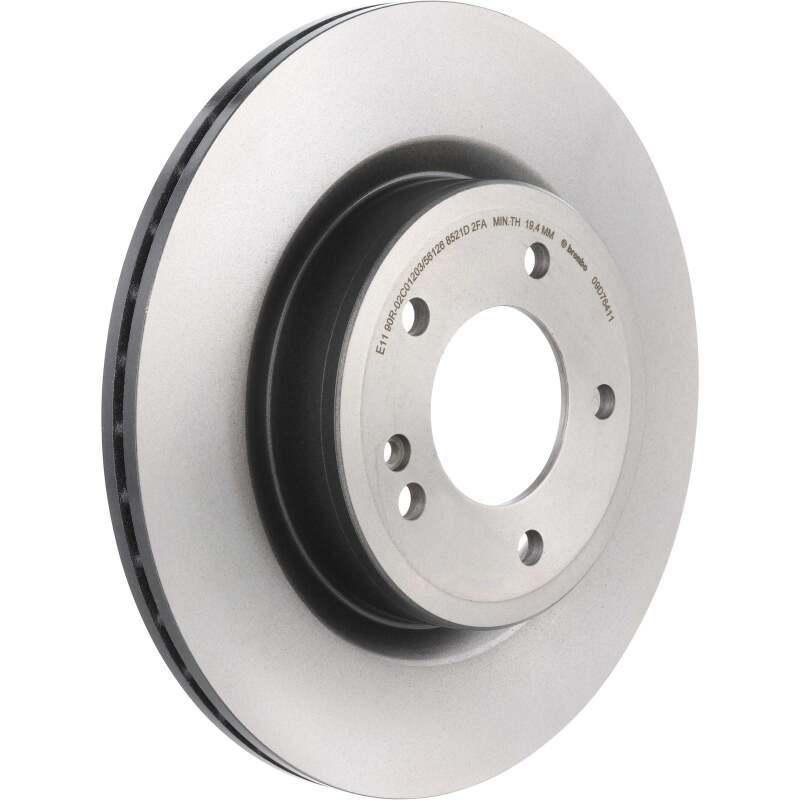

Brembo Prime UV Coated Rear Brake Rotor 345 x 22 mm - 09.D764.11

Rear Rotor | 345 x 22 mm | Mercedes-Benz | G550

The Brembo Prime 09.D764.11 UV coated rear rotor is a practical factory-style replacement for worn brakes on your Mercedes-Benz G550. It is a good choice for routine brake service when you want to keep the original brake setup and get your vehicle back on the road with an OE-equivalent disc. The UV coating helps resist corrosion on the hub and outer edges, keeping the visible areas cleaner through everyday exposure to moisture and road grime. Its high-carbon cast iron braking surface helps damp vibration for braking comfort. The 345 x 22 mm dimensions, 85 mm center bore and 56 mm overall height are important checks when matching the existing rear brakes. For matching 345 x 22 mm rear brakes; engine variants and years are listed below.

Key Features & Specs:

• Brand/series: Brembo Prime; OE-equivalent replacement design
• Part number: 09.D764.11
• Axle position: Rear
• UV coating: helps resist corrosion on the rotor hub and outer edges
• High-carbon cast iron: supports vibration damping and braking comfort
• Outside diameter: 345 mm
• Nominal thickness: 22 mm
• Minimum/discard thickness: 19.4 mm
• Overall height: 56 mm
• Center bore: 85 mm
• Rotor type: Vented
• Braking surface: Smooth
• Braking surface material: High Carbon Cast Iron
• Construction: Full cast
• Rotor mounting hole count: 5
• Fastening screws included: Yes
• ABS tone ring included: No
• Grade: Premium
• Rust-resistant coating: Yes
• Finish: Coated

Fitment:

• For matching 345 x 22 mm rear brakes; engine variants and years are listed below.
• 2025 Mercedes-Benz G550 — Base; L6 2,999 cc
• 2019–2024 Mercedes-Benz G550 — Base; V8 3,982 cc

Match the part number, rotor dimensions and factory brake package before ordering. Replace brake rotors in axle pairs and follow the vehicle manufacturer’s installation and bedding instructions.
