Brian Crower Nissan TB48 5.20L Lightweight Stroker Kit - BC0255LW (ProHD I-Beam)

Key Features & Specs:

• Brand: Brian Crower
• Part Number: BC0255LW
• Engine Platform: Nissan TB48
• Part Type: Lightweight stroker kit / rotating assembly
• Displacement: 5.20L
• Crankshaft Part Number: BC5259LW-110
• Crankshaft Material: 4340 billet lightweight crank
• Stroke: 110mm
• Connecting Rod Part Number: BC6258
• Connecting Rods: ProHD I-beam rods
• Rod Length: 6.436 in. center-to-center
• Rod Fasteners: 7/16 in. bolts
• Piston Part Number: BC7259
• Pistons: Custom pistons
• Piston Options: Choice of bore and compression ratio
• Wrist Pins: 9310 pins
• Bearings: ACL Race bearings available separately
• Application: High-performance Nissan TB48 engine builds

Fitment:

• Nissan TB48 Engines

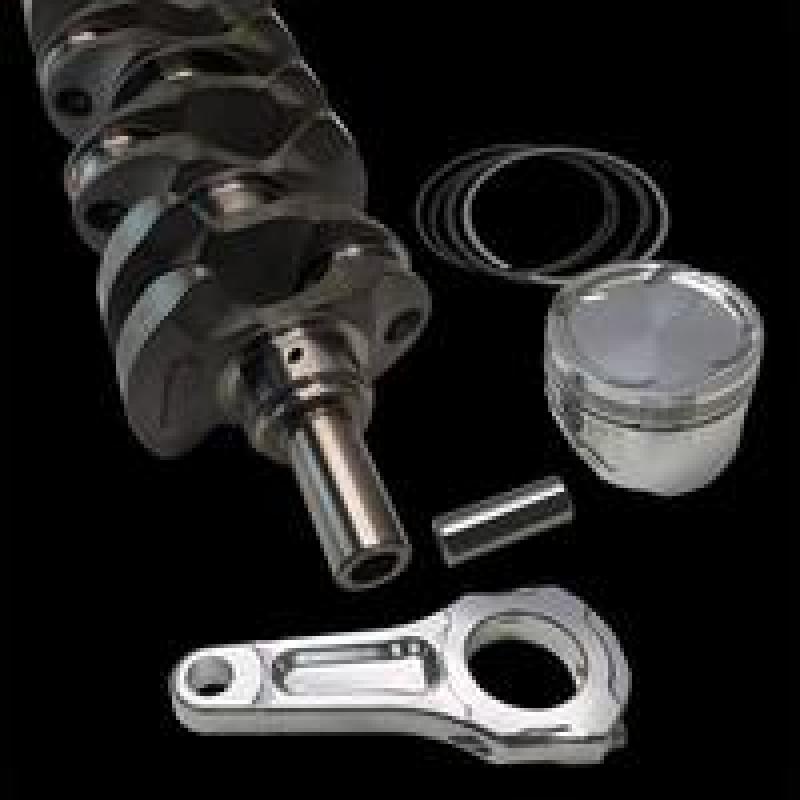

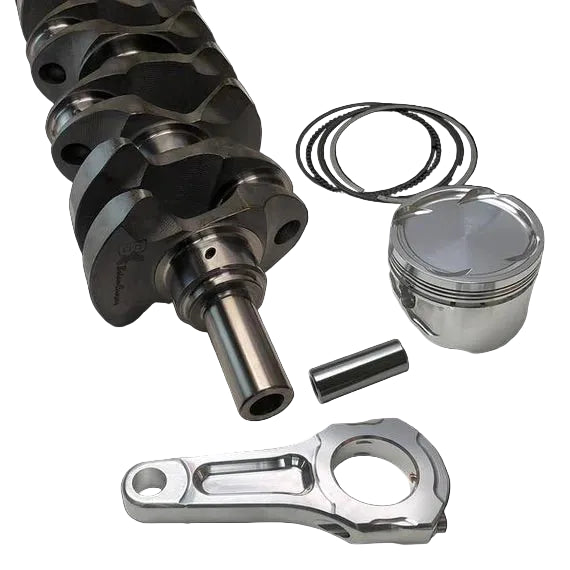

The Brian Crower BC0255LW stroker kit is designed for Nissan TB48 engine builds requiring increased displacement, reduced crankshaft weight, and strong rotating assembly components. This 5.20L package includes a 4340 billet lightweight crankshaft with a 110mm stroke, ProHD I-beam connecting rods with 7/16 inch fasteners, and custom pistons available in your choice of bore size and compression ratio. Built for high-performance TB48 applications, this stroker kit provides the strength and flexibility needed for serious turbocharged, high-torque, and racing engine builds. ACL Race bearings are available separately.
