COBB Stage 2 Redline Power Package for 2021-2023 Ford F-150 Raptor Silver FMIC - FOR0100020SL-RED

Upgrade your 2021-2023 Ford F-150 Raptor with the COBB FOR0100020SL-RED Stage 2 Redline Carbon Fiber Intake Power Package featuring the full-size Silver Front Mount Intercooler. This complete package combines the COBB Accessport V3 with ECU and TCM flashing capability, Redline Carbon Fiber Intake System with HydroCarbon Trap, large Silver front mount intercooler, and COBB vehicle badge.

The included COBB Accessport V3 provides ECU calibration management, TCM flashing, real-time vehicle monitoring, map storage, and access to supported COBB Off The Shelf calibrations. Supported transmission maps can adjust shift points, shift firmness, skip-shift behavior, torque limits, and related transmission parameters. The Accessport can monitor up to six parameters simultaneously and store up to 100 calibrations. The ECU does not need to be mailed in for this supported application.

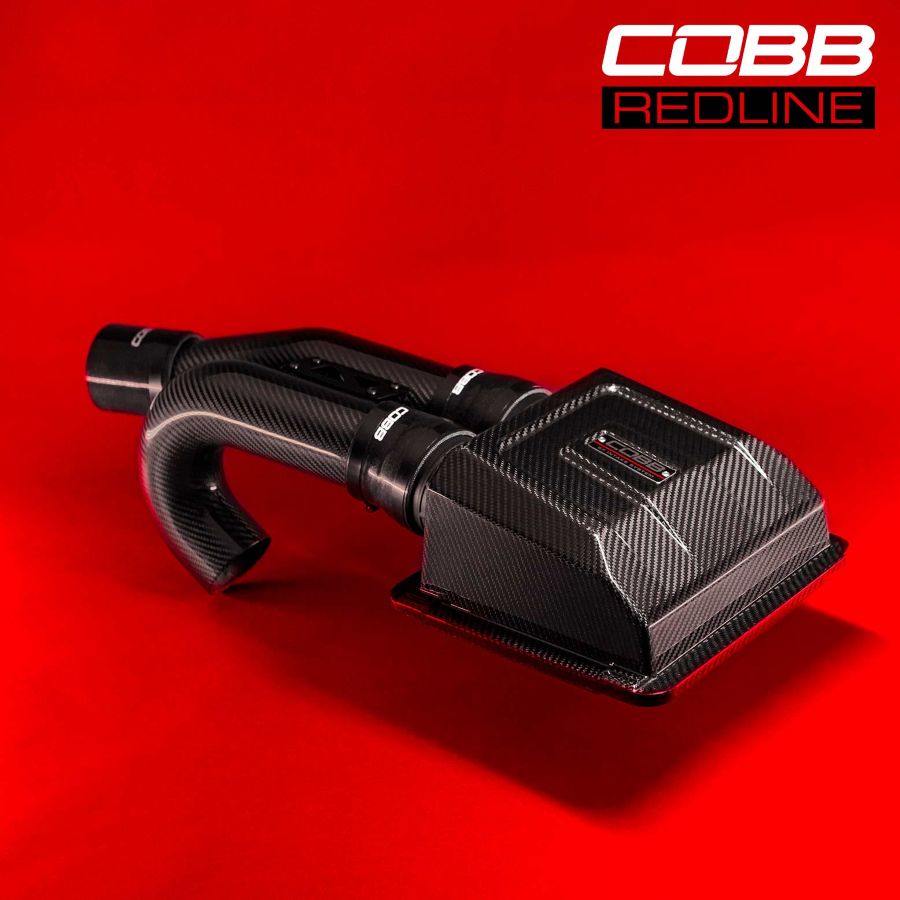

The Redline Carbon Fiber Intake System uses 3K tow carbon fiber in a 2x2 twill weave with a gloss clear coat. Factory airbox piping is replaced with 3-inch tubing incorporating the HydroCarbon Trap emissions component. A carbon fiber airbox lid supports COBB's reusable dual-inlet high-flow filter, which provides 165% more surface area than the factory filter. Black 4-ply silicone couplers and black e-coated stainless steel clamps complete the intake system.

This package includes the larger Silver COBB Front Mount Intercooler rather than the factory-location intercooler. Its 24-inch wide x 14-inch tall x 3.5-inch thick core provides substantially increased intercooler volume compared with the stock unit. Installation requires minor trimming on the back side of the grille while retaining the factory Adaptive Cruise Control bracket when used with the stock bumper.

Key Features:

• Stage 2 Redline Power Package: Combines tuning, carbon fiber intake, and full-size front mount intercooler upgrades
• Accessport V3: Provides ECU tuning, monitoring, map management, and calibration storage
• TCM Flashing: Supports compatible transmission calibrations
• ECU Map Options: Stage 0, Stage 1 91/93 Octane, Stage 2 91/93 Octane, and Performance Tow 91/93 Octane
• TCM Map Options: Simulated Stock, OEM+, and Sport
• No ECU Mail-In Required: Supported ECU can be flashed without sending the module out
• Dynamic Pedal Control: Adjustable from -5 to 10 for reduced or increased accelerator response
• Valet Mode: Can limit throttle to approximately 25 percent when enabled
• Tire Size Adjustment: Allows supported tire-size correction for speedometer accuracy
• Auto Start-Stop: All supplied OTS maps have Auto Start-Stop disabled by default
• Redline Carbon Fiber Intake: 3K carbon fiber construction with 2x2 twill weave
• Gloss Clear Coat: Carbon fiber components feature a gloss clear-coated finish
• 3-Inch Intake Tubing: Replaces factory piping from the airbox
• HydroCarbon Trap: HCT emissions component is incorporated into the intake system
• High-Flow Dual-Inlet Filter: Reusable filter provides 165% more surface area than stock
• Carbon Fiber Airbox Lid: Replaces the factory airbox lid
• Silver Front Mount Intercooler: Large upgraded FMIC with silver finish
• Large FMIC Core: Measures 24 in x 14 in x 3.5 in
• Adaptive Cruise Control Retention: Retains the factory ACC bracket with the stock bumper
• Real-Time Monitoring: Accessport can display up to six vehicle parameters simultaneously
• Calibration Storage: Accessport can store up to 100 calibrations
• 50-State Legal: Legal for emissions-controlled vehicles when used according to COBB's application guide and applicable CARB Executive Orders
• COBB Vehicle Badge: Included with the package

Specifications:

• Brand: COBB Tuning
• Series: Stage 2 Redline
• Product Type: Performance Power Package
• Vehicle Platform: Ford F-150 Raptor
• Tuning Device: COBB Accessport V3
• ECU Flashing: Yes
• TCM Flashing: Yes
• Real-Time Monitoring: Up to 6 Parameters
• Calibration Storage: Up to 100 Calibrations
• Dynamic Pedal Control Range: -5 to 10
• Valet Mode: Yes
• Tire Size Adjustment: Yes
• ECU Maps: Stage 0 - Stage 1 91/93 Octane - Stage 2 91/93 Octane - Performance Tow 91/93 Octane
• TCM Maps: Simulated Stock - OEM+ - Sport
• Intake Series: Redline Carbon Fiber
• Intake Tube Diameter: 3 in
• Intake Material: Carbon Fiber
• Carbon Construction: 3K Tow - 2x2 Twill Weave
• Carbon Finish: Gloss Clear Coat
• HydroCarbon Trap: Yes
• Air Filter: Reusable Dual-Inlet High-Flow Filter
• Filter Surface Area: 165% More Than Stock
• Intercooler Type: Front Mount Intercooler
• Intercooler Core Width: 24 in
• Intercooler Core Height: 14 in
• Intercooler Core Thickness: 3.5 in
• Intercooler Finish: Silver
• Emissions: 50-State Legal When Used per COBB Application Guide
• CARB EO: D-660-135
• CARB EO: D-660-245
• CARB EO: D-660-289
• Primary Part Number: FOR0100020SL-RED

Vehicle Fitment:

• 2021-2023 Ford F-150 Raptor

Fitment & Installation Notes:

• If retaining the factory intake snorkel, add COBB Intake Snorkel Bracket 8G4625.
• COBB's Redline Carbon Fiber Air Scoop can replace the factory snorkel and includes the required snorkel bracket.
• This package includes the larger Silver Front Mount Intercooler, not the factory-location intercooler.
• Front mount intercooler installation requires minor trimming on the back side of the grille.
• The factory Adaptive Cruise Control bracket is retained when using the stock bumper.
• Use the Accessport with the correct COBB calibration for the vehicle, fuel octane, and installed hardware.
• All supplied OTS maps have the truck's Auto Start-Stop feature disabled by default.
• Dynamic Pedal Control settings below 0 reduce pedal response, while settings above 0 increase pedal response.
• Valet Mode limits throttle to approximately 25 percent when enabled and retains the setting through key cycles.
• 50-state emissions legality applies when installed and used according to COBB's application guide and applicable CARB Executive Orders.

What's Included:

• COBB Accessport V3 for 2021-2023 Ford F-150 Raptor - AP3-FOR-010
• COBB Silver Front Mount Intercooler - 7F2500-SL
• COBB Redline Carbon Fiber Intake System with HCT - 7F4160
• COBB Vehicle Badge - 800200
