Website Title: COBB Stage 2 Redline Power Package for 2021-2023 Ford F-150 Raptor Silver - FOR0100S20SL-RED

Upgrade your 2021-2023 Ford F-150 Raptor with the COBB FOR0100S20SL-RED Stage 2 Redline Carbon Fiber Intake Power Package featuring a Silver Factory Location Intercooler. This complete performance package combines the COBB Accessport V3 with ECU and TCM flashing capability, Redline Carbon Fiber Intake System with HydroCarbon Trap, upgraded factory-location intercooler, and COBB vehicle badge.

The included COBB Accessport V3 provides ECU calibration management, TCM flashing, real-time vehicle monitoring, and access to supported COBB Off The Shelf maps. Supported transmission calibrations can adjust shift points, shift firmness, skip-shift behavior, torque limits, and related parameters. The Accessport can monitor up to six parameters simultaneously and store up to 100 calibrations. The ECU does not need to be mailed in for this supported application.

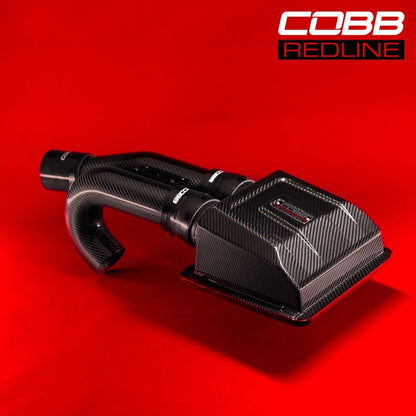

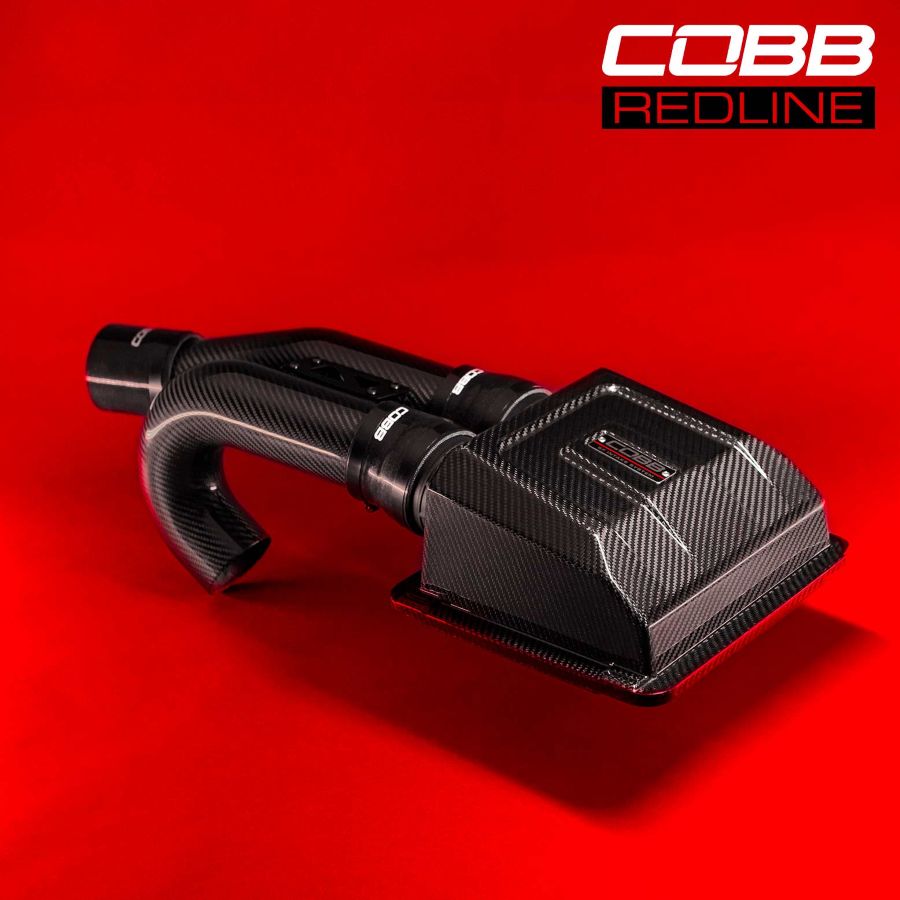

The Redline Carbon Fiber Intake System uses 3K tow carbon fiber in a 2x2 twill weave with a gloss clear coat. Factory piping from the airbox is replaced with 3-inch tubing incorporating the HydroCarbon Trap emissions component. A carbon fiber airbox lid supports COBB's reusable dual-inlet high-flow filter, which provides 165% more surface area than the factory filter. Black 4-ply silicone couplers and black e-coated stainless steel clamps complete the intake system.

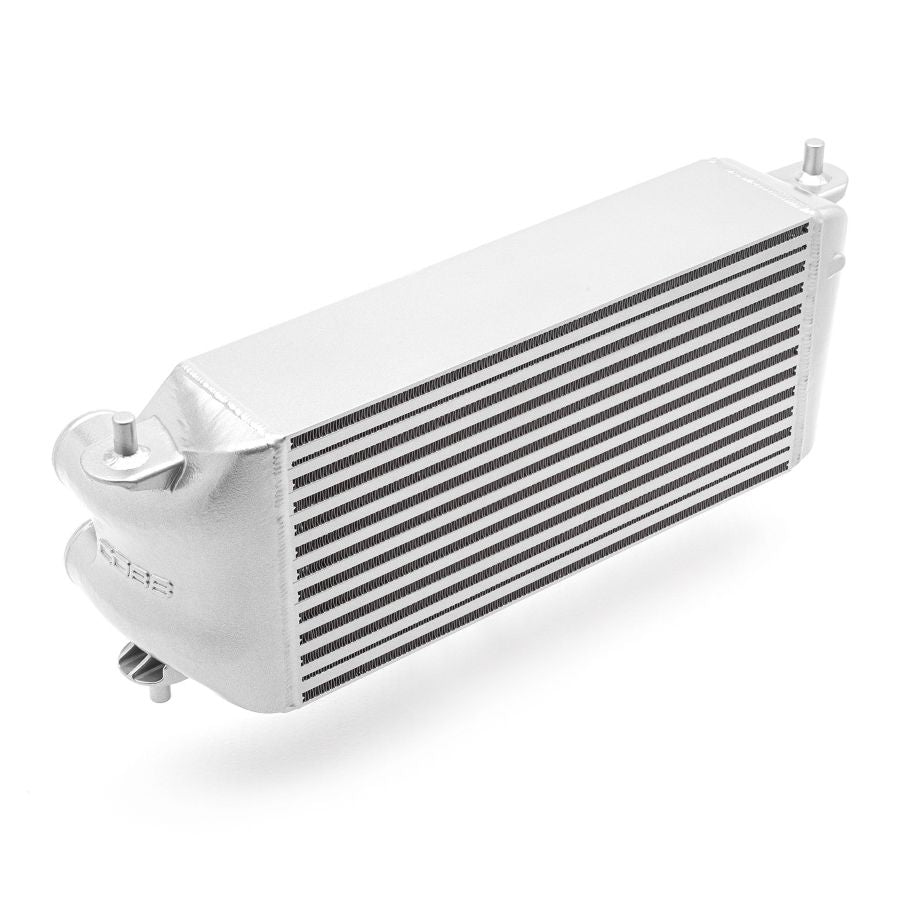

This package uses COBB's Silver Factory Location Front Mount Intercooler, providing an upgraded charge-air cooling solution while retaining the factory intercooler mounting location. This configuration offers a simpler installation path than COBB's larger alternate front mount intercooler system.

Key Features:

• Stage 2 Redline Power Package: Combines tuning, carbon fiber intake, and intercooler upgrades
• Accessport V3: Provides ECU tuning, monitoring, map management, and calibration storage
• TCM Flashing: Supports compatible transmission calibrations
• ECU Map Options: Stage 0, Stage 1 91/93 Octane, Stage 2 91/93 Octane, and Performance Tow 91/93 Octane
• TCM Map Options: Simulated Stock, OEM+, and Sport
• No ECU Mail-In Required: Supported ECU can be flashed without sending the module out
• Redline Carbon Fiber Intake: 3K carbon fiber construction with 2x2 twill weave
• Gloss Clear Coat: Carbon fiber components feature a gloss clear-coated finish
• 3-Inch Intake Tubing: Replaces factory piping from the airbox
• HydroCarbon Trap: HCT emissions component is incorporated into the intake system
• High-Flow Dual-Inlet Filter: Reusable filter provides 165% more surface area than stock
• Carbon Fiber Airbox Lid: Replaces the factory airbox lid
• Silver Factory Location Intercooler: Upgraded intercooler retains the factory mounting location
• Real-Time Monitoring: Accessport can display up to six parameters simultaneously
• Calibration Storage: Accessport can store up to 100 calibrations
• Auto Start-Stop: All supplied OTS maps have Auto Start-Stop disabled by default
• 50-State Legal: Legal for emissions-controlled vehicles when used according to COBB's application guide and applicable CARB Executive Orders
• COBB Vehicle Badge: Included with the package

Specifications:

• Brand: COBB Tuning
• Series: Stage 2 Redline
• Product Type: Performance Power Package
• Vehicle Platform: Ford F-150 Raptor
• Tuning Device: COBB Accessport V3
• ECU Flashing: Yes
• TCM Flashing: Yes
• Real-Time Monitoring: Up to 6 Parameters
• Calibration Storage: Up to 100 Calibrations
• ECU Maps: Stage 0 - Stage 1 91/93 Octane - Stage 2 91/93 Octane - Performance Tow 91/93 Octane
• TCM Maps: Simulated Stock - OEM+ - Sport
• Intake Series: Redline Carbon Fiber
• Intake Tube Diameter: 3 in
• Intake Material: Carbon Fiber
• Carbon Construction: 3K Tow - 2x2 Twill Weave
• Carbon Finish: Gloss Clear Coat
• HydroCarbon Trap: Yes
• Air Filter: Reusable Dual-Inlet High-Flow Filter
• Filter Surface Area: 165% More Than Stock
• Intercooler Type: Front Mount - Factory Location
• Intercooler Finish: Silver
• Emissions: 50-State Legal When Used per COBB Application Guide
• CARB EO: D-660-135
• CARB EO: D-660-245
• CARB EO: D-660-289
• Primary Part Number: FOR0100S20SL-RED

Vehicle Fitment:

• 2021-2023 Ford F-150 Raptor

Fitment & Installation Notes:

• If retaining the factory intake snorkel, add COBB Intake Snorkel Bracket 8G4625.
• COBB's Redline Carbon Fiber Air Scoop can replace the factory snorkel and includes the required snorkel bracket.
• This package includes the Silver Factory Location Front Mount Intercooler, not COBB's larger alternate front mount intercooler.
• Use the Accessport with the correct COBB calibration for the vehicle, fuel octane, and installed hardware.
• All supplied OTS maps have the truck's Auto Start-Stop feature disabled by default.
• 50-state emissions legality applies when installed and used according to COBB's application guide and applicable CARB Executive Orders.

What's Included:

• COBB Accessport V3 for 2021-2023 Ford F-150 Raptor - AP3-FOR-010
• COBB Silver Factory Location Front Mount Intercooler - 7F1527-SL
• COBB Redline Carbon Fiber Intake System with HCT - 7F4160
• COBB Vehicle Badge - 800200

Why Choose COBB?

COBB develops integrated vehicle-specific performance systems that combine ECU and transmission calibration tools with supporting airflow and charge-air cooling upgrades. The Accessport platform works alongside COBB intake and intercooler hardware to provide a coordinated upgrade path with supported maps, vehicle monitoring, and application-specific components designed around the same platform.
