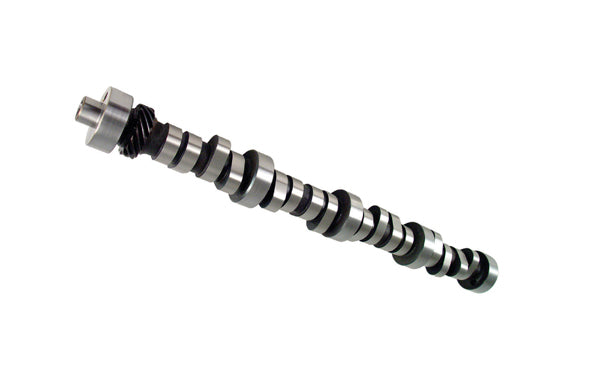

Comp Cams Part Number 35-302-8 is a Magnum Computer Controlled 220/224 hydraulic roller camshaft engineered for Ford 5.0L EFI engines (1985–2002). Designed for street/strip applications, this cam works best with performance upgrades such as mass-air conversion, 5-speed transmission or 2500 stall converter, aftermarket heads, intake, headers, and 3.55–3.73 gears. Provides a noticeable performance idle and strong midrange power while remaining compatible with factory computer controls.
Magnum Computer Controlled series for EFI 5.0L
Designed for engines with typical bolt-on performance upgrades
Strong midrange performance with street-friendly drivability
Works best with 5-speed or 2500-stall auto
1-bolt camshaft gear attachment
Ideal for mild street/strip Mustang and Ford 5.0L builds
| Specification | Value |
|---|---|
| Camshaft Type | Hydraulic Roller |
| Series | Magnum Computer Controlled |
| Engine Family | Ford 5.0L (1985–2002) |
| RPM Range | 2,000–5,500 |
| Advertised Duration (Int/Exh) | 281 / 284 |
| Duration @ .050" (Int/Exh) | 220 / 224 |
| Valve Lift (Int/Exh) | 0.512 / 0.533 |
| Lobe Lift (Int/Exh) | 0.320 / 0.334 |
| Lobe Separation Angle | 112° |
| Intake Centerline | 108° |
| Intake Open (BTDC) | 2° |
| Intake Close (ABDC) | 38° |
| Exhaust Open (BBDC) | 48° |
| Exhaust Close (ATDC) | -4° |
| Valve Timing @ .006" | Not specified |
| Gear Attachment | 1-Bolt |
| Usage | Street/Strip |
| Lifter Type | Hydraulic Roller |
| Warranty | 12 Months |
| UPC | 036584780519 |
| Emissions Code | Not specified |
| Make | Ford |
| California Proposition 65 | Cancer and Reproductive Harm (P65Warnings.ca.gov) |
Make: Ford
Engine Family: 5.0L EFI (1985–2002)
Cam Gear Style: 1-bolt
