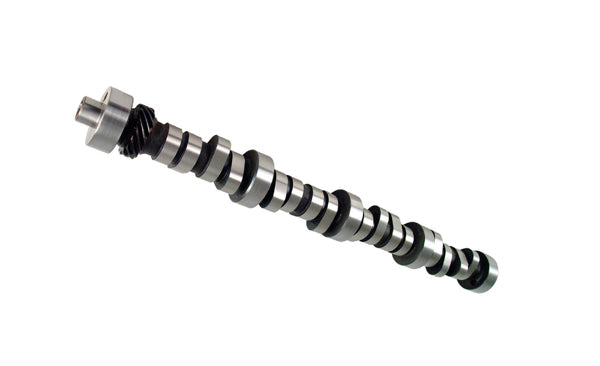

Comp Cams Part Number 35-324-8 is an Xtreme Energy Computer Controlled 218/224 hydraulic roller camshaft engineered specifically for Ford 5.0L EFI engines (1985–2002). Designed to work with factory computer controls, this cam improves throttle response, midrange torque, and overall drivability. Ideal for mild performance builds running 1.7:1 rockers, 3.20–3.73 gears, larger throttle body and mass air systems, and upgraded heads and intake manifolds.
This cam is intended for 1985–1995 5.0L engines originally equipped with a hydraulic roller cam.
Xtreme Energy Computer Controlled series for EFI Ford 5.0L
Optimized for use with 1.7:1 rocker arms
Great for mild performance upgrades with improved airflow components
Strong midrange performance and responsive drivability
Compatible with factory computer systems
1-bolt camshaft gear attachment
| Specification | Value |
|---|---|
| Camshaft Type | Hydraulic Roller |
| Series | Xtreme Energy Computer Controlled |
| Engine Family | Ford 5.0L (1985–2002) |
| RPM Range | 1,800–5,800 |
| Advertised Duration (Int/Exh) | 270 / 276 |
| Duration @ .050" (Int/Exh) | 218 / 224 |
| Valve Lift (Int/Exh) | 0.544 / 0.544 |
| Lobe Lift (Int/Exh) | 0.321 / 0.321 |
| Lobe Separation Angle | 112° |
| Intake Centerline | 108° |
| Intake Open (BTDC) | 27° |
| Intake Close (ABDC) | 63° |
| Exhaust Open (BBDC) | 74° |
| Exhaust Close (ATDC) | 22° |
| Valve Timing @ .006" | Not specified |
| Gear Attachment | 1-Bolt |
| Usage | Street/Performance |
| Lifter Type | Hydraulic Roller |
| Warranty | 12 Months |
| UPC | 036584038160 |
| Emissions Code | Not specified |
| Make | Ford |
| California Proposition 65 | Cancer and Reproductive Harm (P65Warnings.ca.gov) |
Make: Ford
Engine Family: 5.0L EFI (1985–2002)
Cam Gear Style: 1-bolt
Note: Ideal for 1985–1995 engines with factory hydraulic roller camshafts
