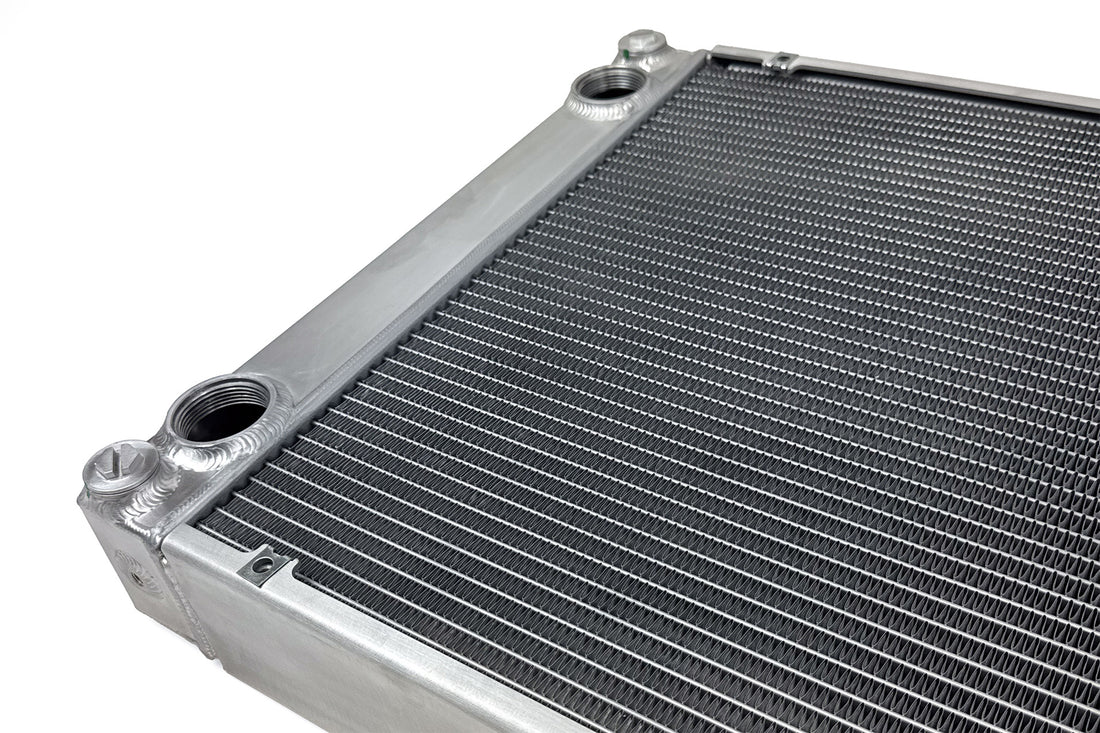

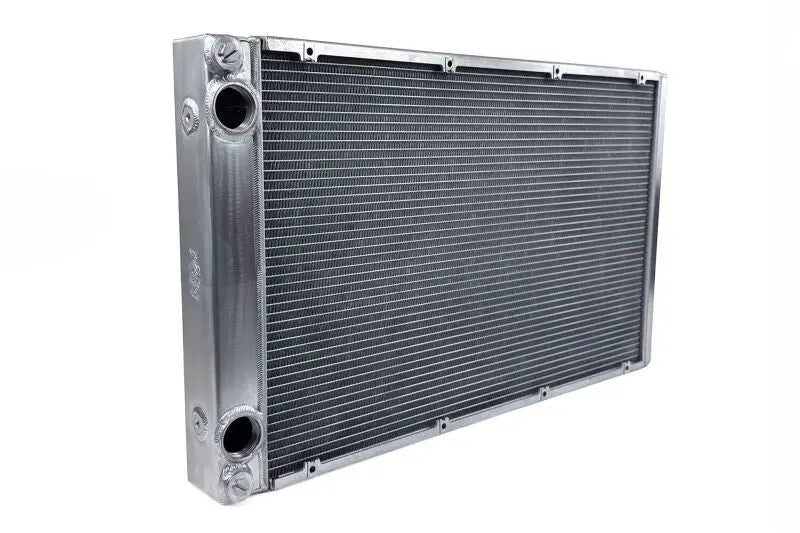

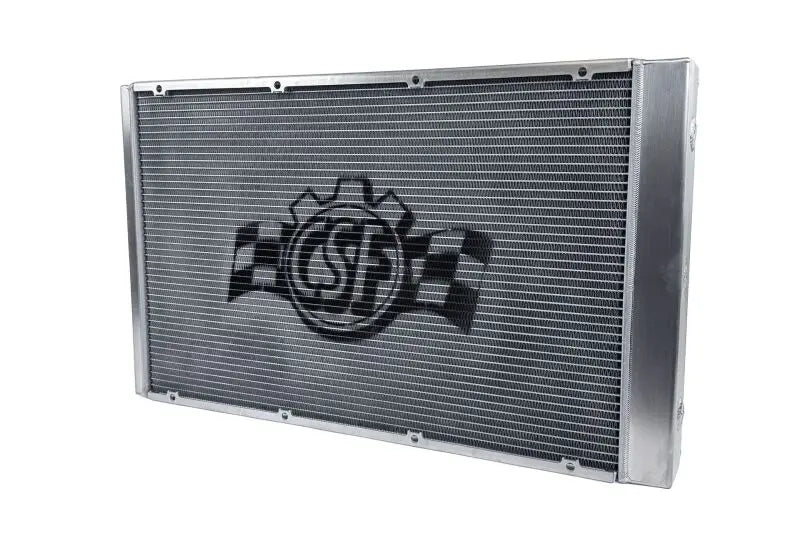

CSF Universal Dual-Pass Competition Radiator 68mm Core - 8378

Key Features & Specs:

• Part Number: CSF 8378
• Product Type: Universal dual-pass competition radiator
• Construction: 100% TIG-welded aluminum
• Core Design: 2-row, 68mm ultra-high-performance dual-pass core
• Core Dimensions: 27.75 inches long x 17.50 inches high
• Cooling Tubes: 44 rows with CSF B-Tube technology
• Fin Design: 45 rows of 8mm tall multi-louvered fins

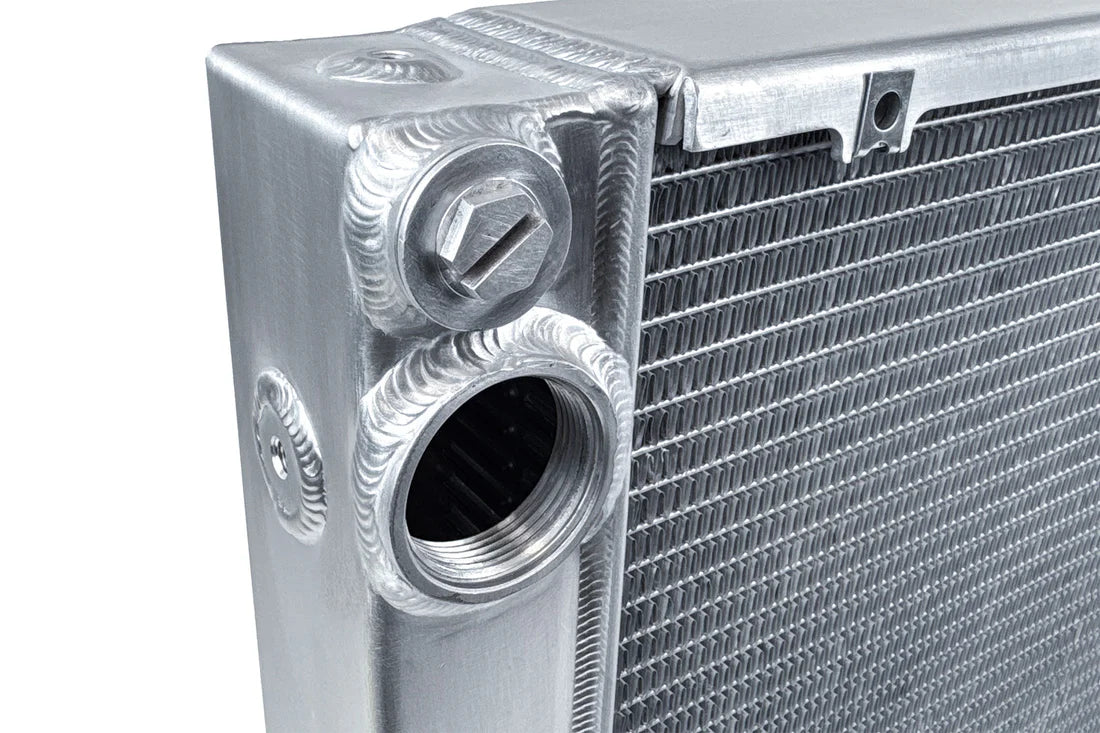

• Inlet / Outlet Connections: -20 AN female ORB bosses
• Fittings: Not included
• Sensor / Bleed Ports: Two -12 AN female ORB ports

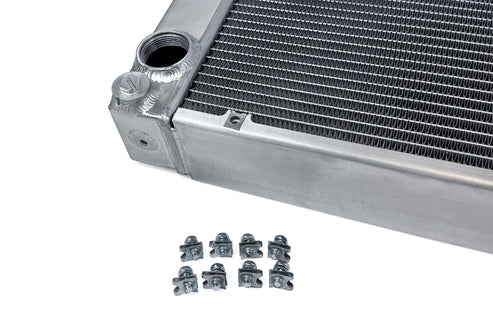

• Port Hardware: Port plugs included; fittings not included

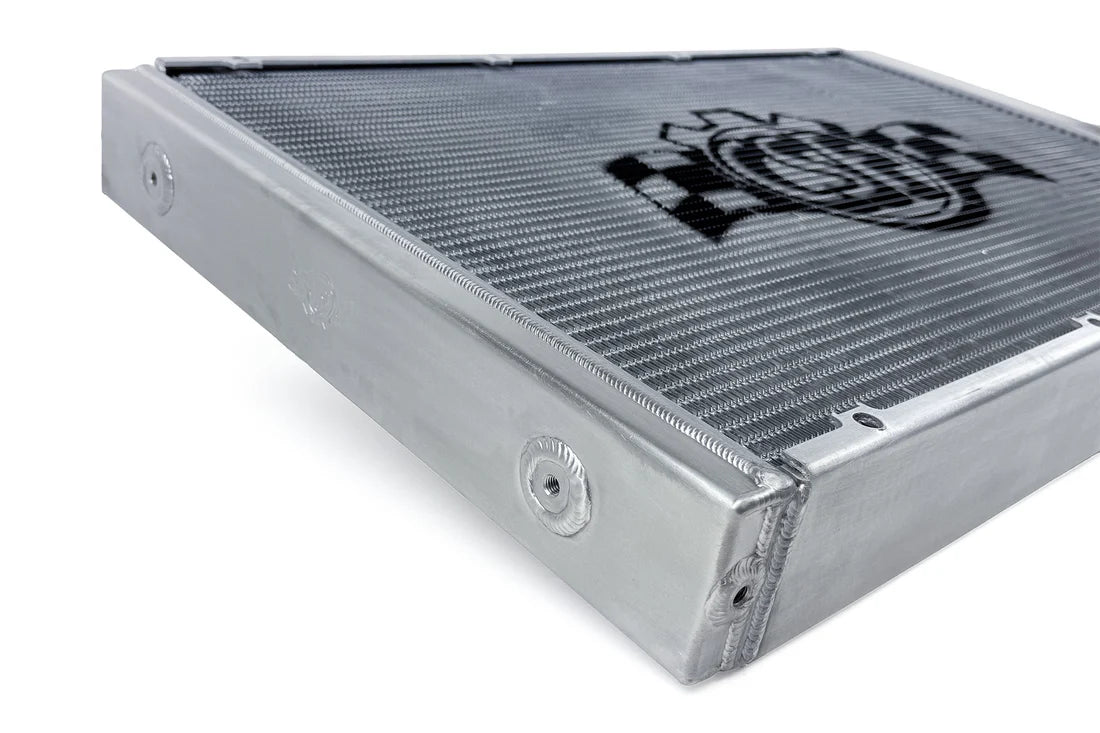

• Mounting Provisions: Eight M8 x 1.25 mounting bosses, four per tank
• Finish: Hand-brushed satin aluminum
• Testing: Individually leak and pressure tested
• Warranty: 2-year limited warranty
• Quantity: Sold individually

Fitment:

• Universal: Designed for custom race, drag, road course, off-road, and high-performance cooling-system builds.
• Installation Note: Requires custom mounting, -20 AN radiator fittings, hose routing, and vehicle-specific fabrication. Confirm available space and cooling-system requirements before ordering.

The CSF 8378 Dual-Pass Competition Radiator is built for custom high-performance, racing, and motorsport cooling systems requiring serious heat-rejection capability. Its 68mm two-row dual-pass core combines 44 rows of CSF B-Tube cooling tubes with 45 rows of 8mm multi-louvered fins for efficient coolant flow and heat transfer. TIG-welded aluminum construction, multiple mounting bosses, -20 AN connection provisions, and sensor or bleed ports give fabricators the flexibility needed for demanding custom installations.
