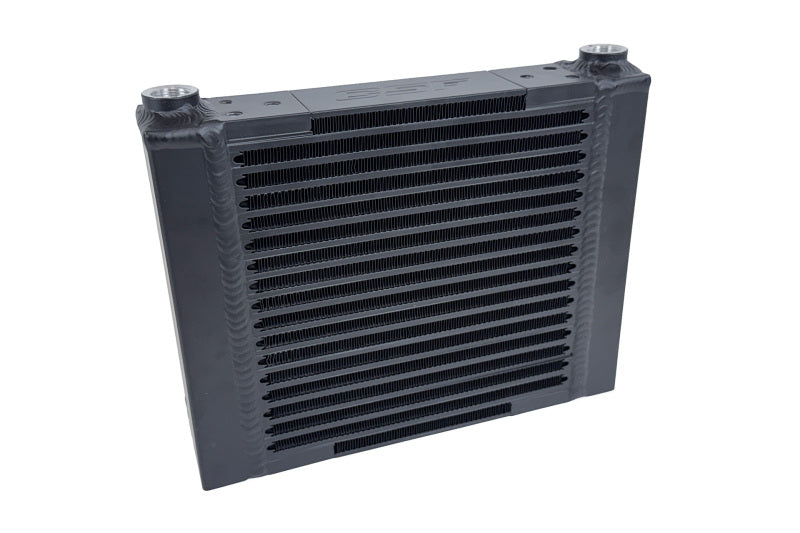

CSF Universal Large Single-Pass Oil Cooler M22 x 1.5 - 8371

Key Features & Specs:

• Part Number: CSF 8371
• Product Type: Universal single-pass oil cooler
• Core Design: High-efficiency bar-and-plate core
• Flow Design: Single-pass
• Bar Design: Aero-Flow bars for strength, flow, and reduced weight
• Connection Size: M22 x 1.5 inlet and outlet
• Sensor / Bleed Ports: Two 1/8-inch NPT ports per tank

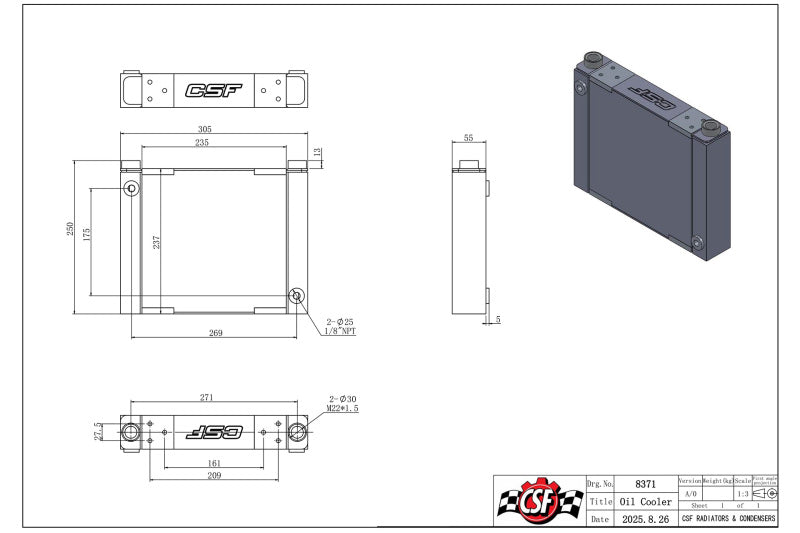

• Overall Dimensions: 12.0 in. L x 9.85 in. H x 2.36 in. W
• Core Dimensions: 9.25 in. L x 9.33 in. H x 2.16 in. W
• Fluid Capacity: 1.5 liters / 1.6 quarts
• Finish: Satin black
• Testing: Pressure tested to 120 psi
• Warranty: 2-year limited warranty

Fitment:

• Universal: Custom oil-cooling installations requiring M22 x 1.5 connections
• Installation Note: Custom brackets, plumbing, fittings, and system-specific mounting hardware may be required.

The CSF 8371 Universal Large Single-Pass Oil Cooler is engineered for custom performance cooling systems that require substantial fluid capacity, high flow, and rugged durability. Its efficient bar-and-plate core uses an Aero-Flow bar design to balance strength, lightweight construction, and coolant flow. With M22 x 1.5 inlet and outlet connections, four 1/8-inch NPT ports, a corrosion-resistant satin black finish, and 120 psi pressure testing, it is a versatile choice for fabricated oil-cooling applications.
