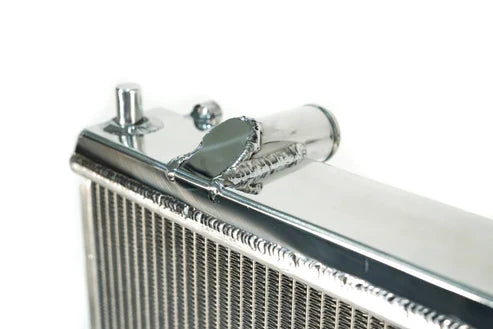

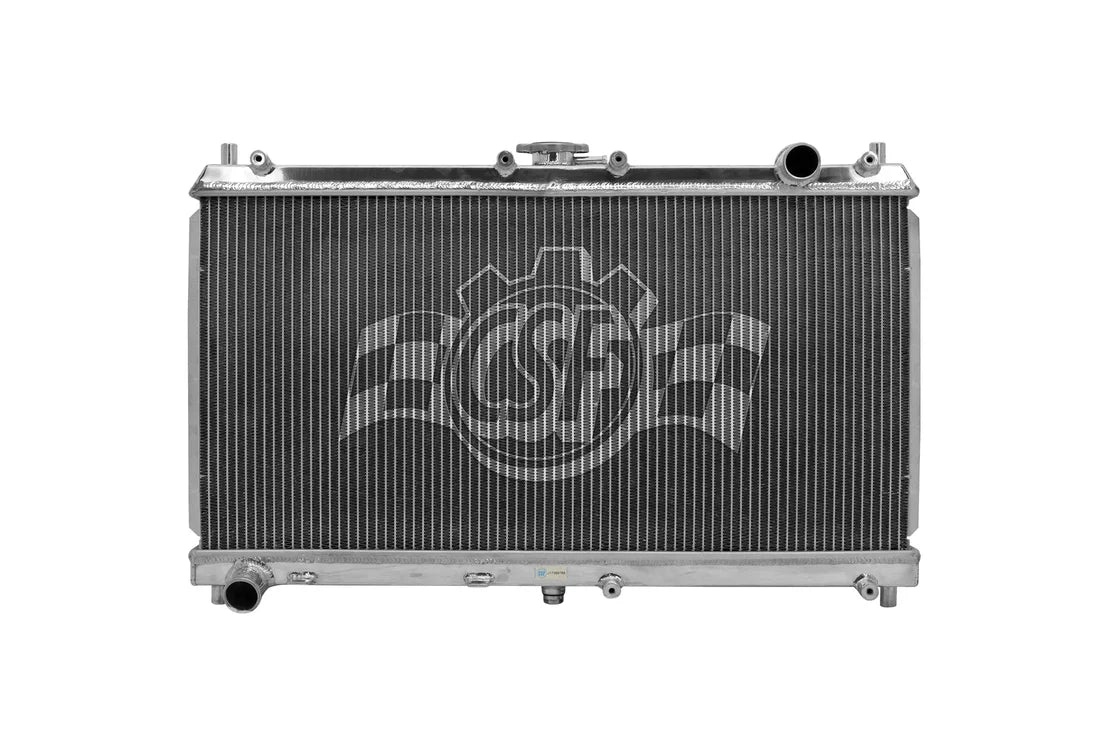

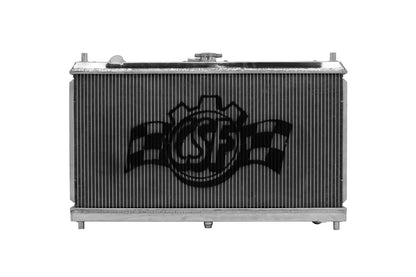

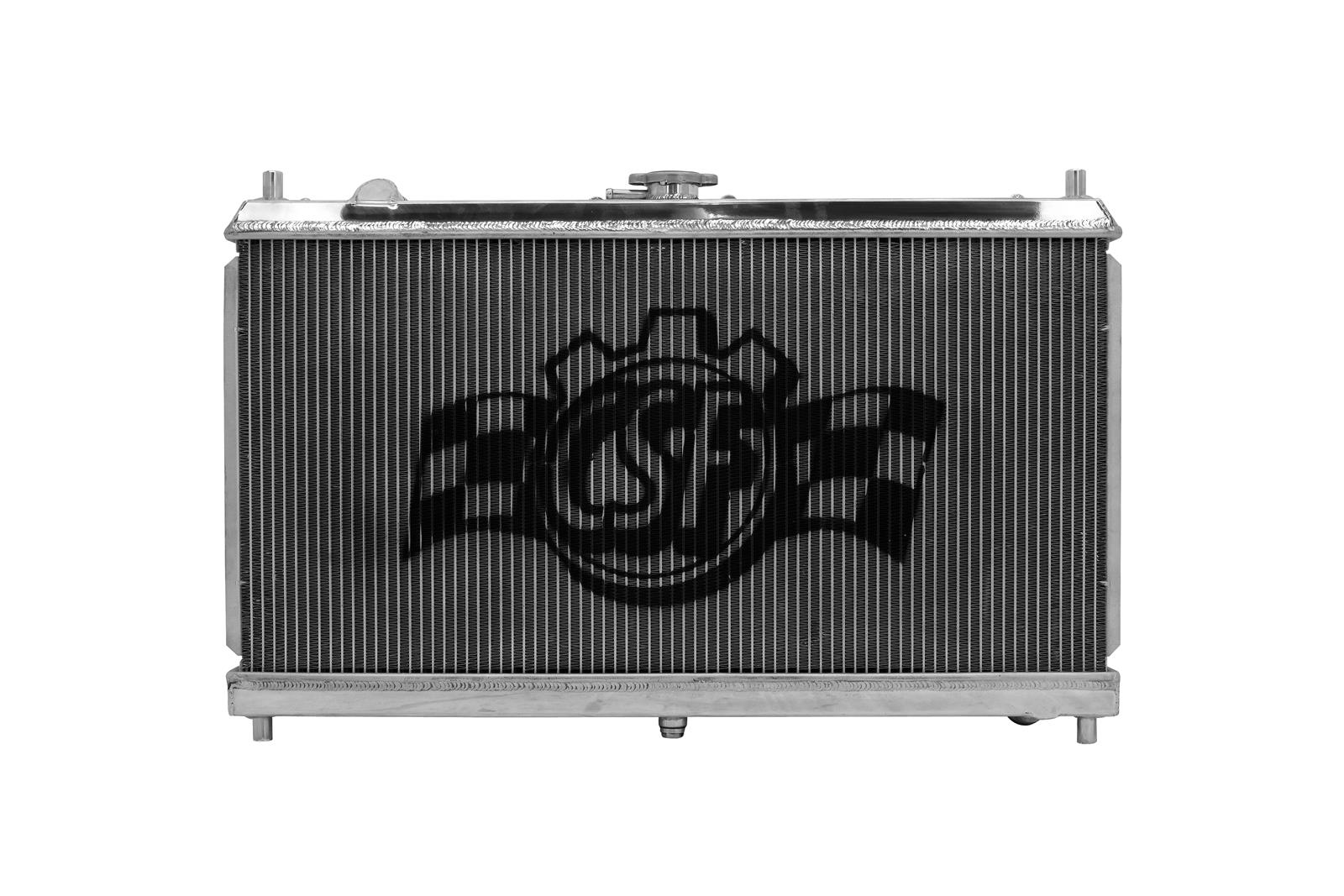

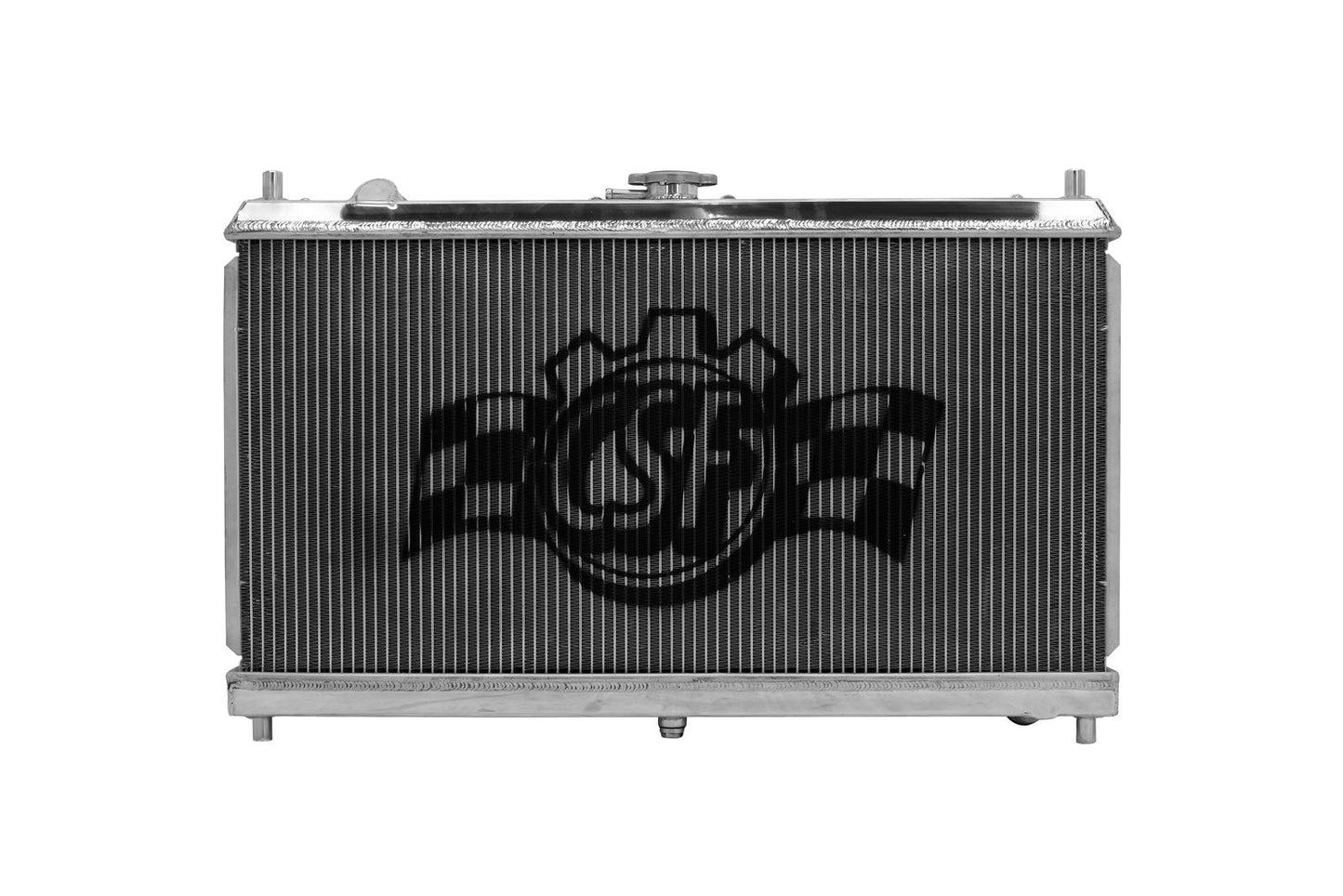

CSF Performance Radiator for 1999-2005 Mazda Miata NB Manual - 2863

Key Features & Specs:

• Part Number: CSF 2863
• Product Type: High-performance all-aluminum radiator
• Core Design: 2-row, 42mm dual-core configuration
• Tube Technology: CSF exclusive B-Tube technology
• Fin Design: 6.5mm tall multi-louvered fins
• Radiator Style: Downflow
• Construction: All-aluminum performance construction
• Finish: 1-hour hand-polished mirror finish

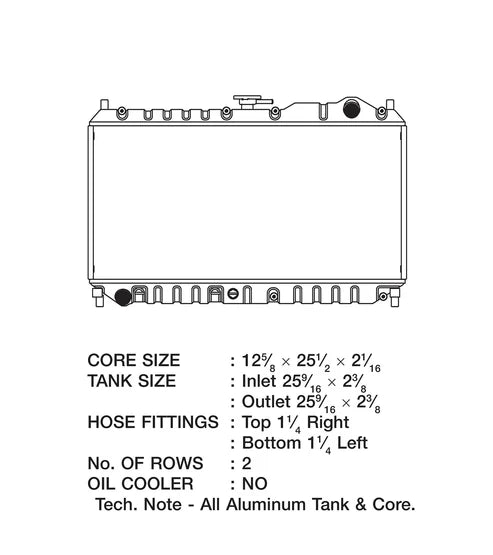

• Core Width: 25.38 inches
• Core Height: 12.63 inches
• Core Thickness: 1.63 inches
• Inlet Location: Upper passenger side
• Outlet Location: Lower driver side
• Inlet Size: 1.250 inches
• Outlet Size: 1.250 inches
• Connections: CNC-machined inlet and outlet fittings
• Mounting: CNC-machined brackets and fittings
• Drain Plug: All-aluminum race-style drain plug
• Transmission Cooler: No

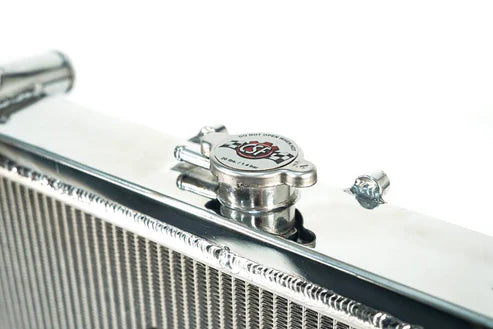

• Radiator Cap: Included
• Fan Included: No
• Installation: Direct drop-in fit; no modifications required
• OEM Compatibility: Accepts compatible OEM hoses, A/C condenser, mounting brackets, and fan shroud
• Replaces OEM Number: Mazda BP4W-15-200A
• Quantity: Sold individually

Fitment:

• 1999-2005 Mazda Miata NB 1.8L L4 Manual

Upgrade cooling performance in your NB Mazda Miata with the CSF 2863 High-Performance All-Aluminum Radiator. Designed as a direct-fit replacement for 1.8L manual-transmission models, this radiator features a 42mm two-row core with CSF exclusive B-Tube technology and 6.5mm multi-louvered fins for efficient heat dissipation. CNC-machined fittings, TIG-welded aluminum construction, and a hand-polished finish make it a durable upgrade for street, autocross, track, and modified Miata builds.
