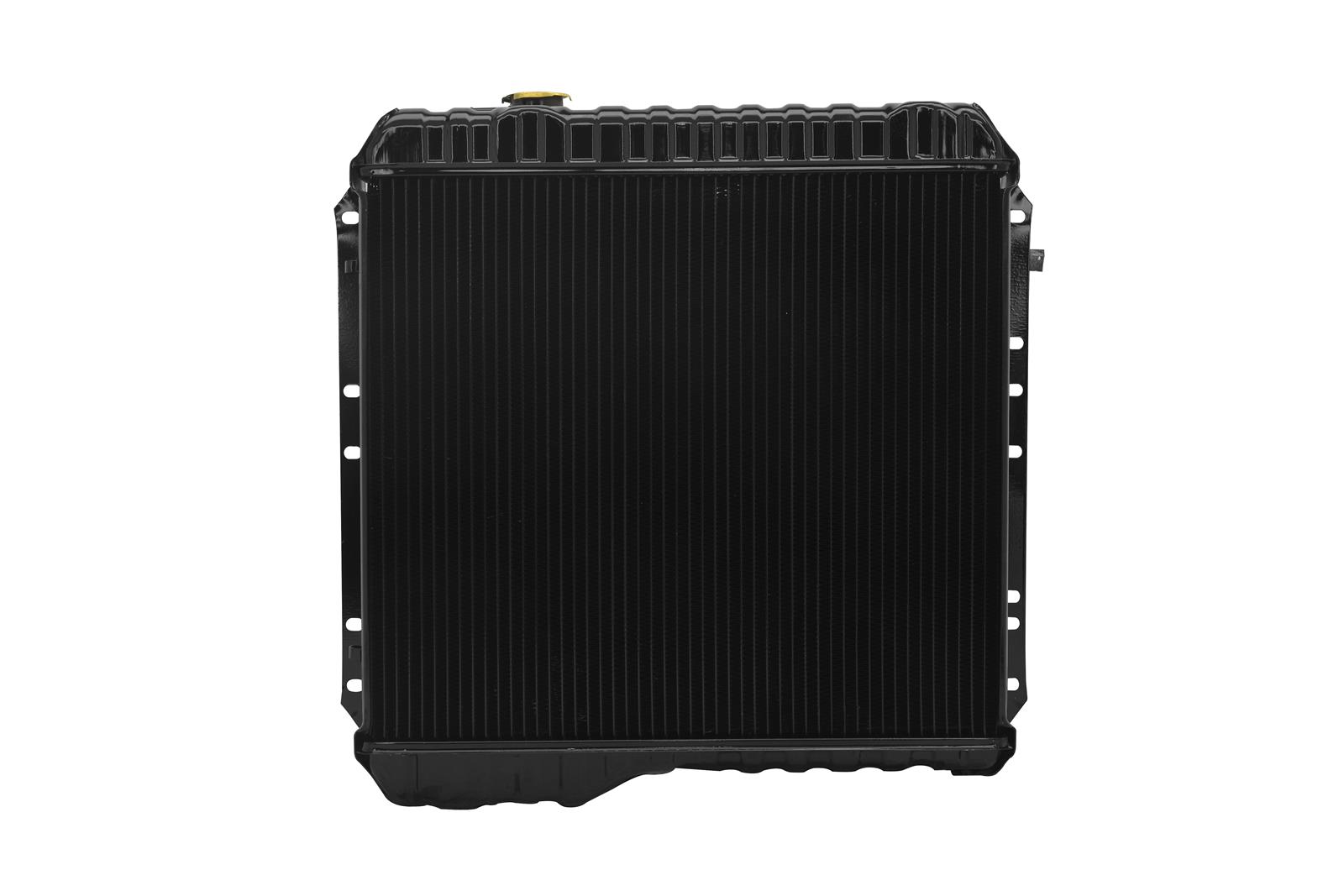

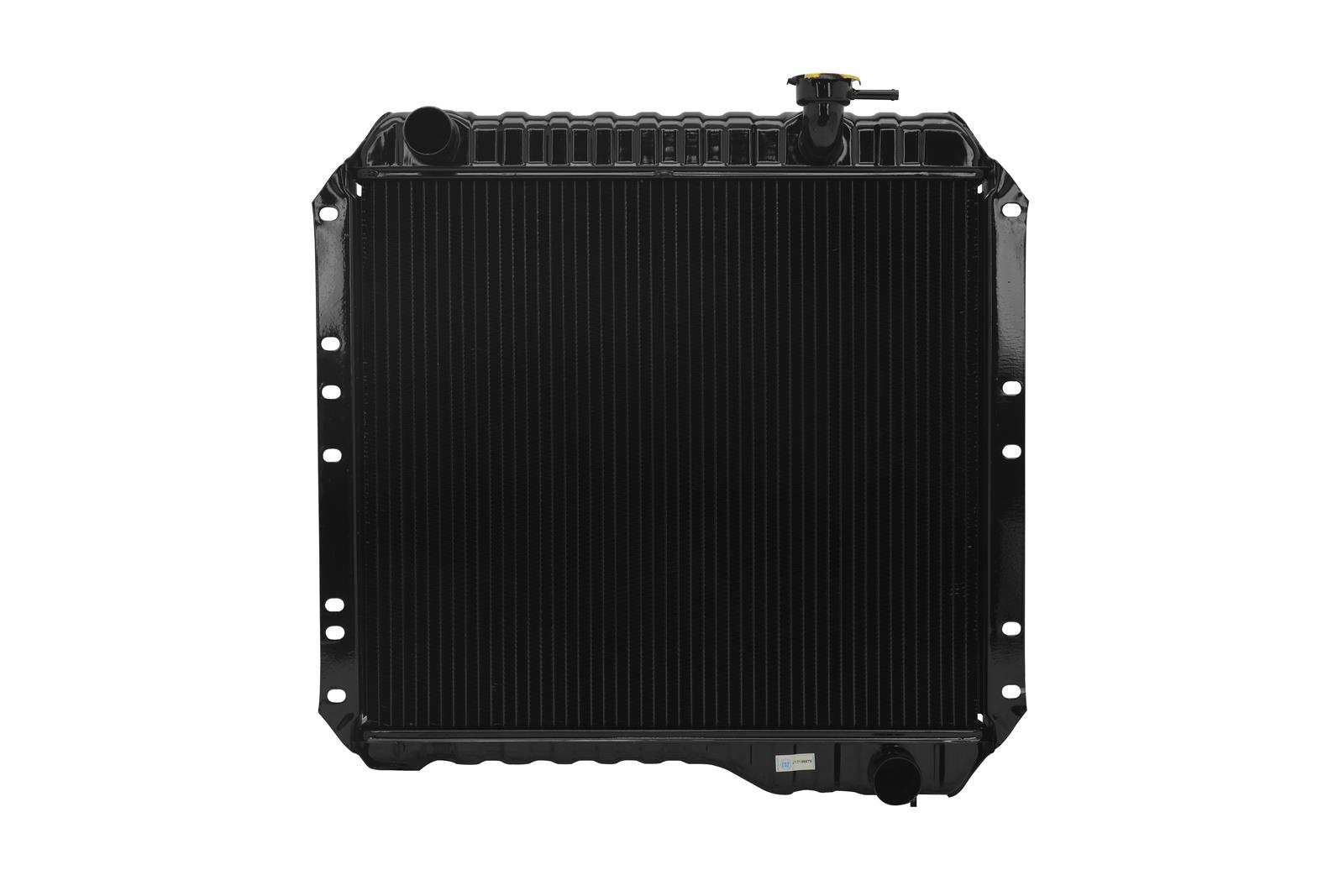

CSF 4-Row Copper/Brass Radiator for 1970-1980 Toyota Land Cruiser J40 - 2888

Key Features & Specs:

• Part Number: CSF 2888
• Product Type: OE-style replacement radiator
• Construction: Copper/brass core with deep-drawn brass tanks
• Radiator Style: Downflow
• Core Design: 4-row
• Finish: Black

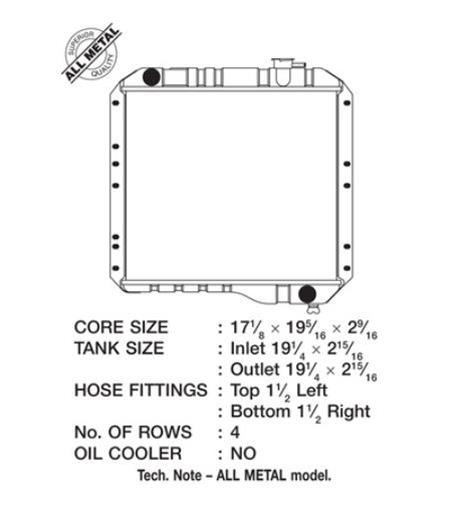

• Core Width: 19.21 inches
• Core Height: 17.13 inches
• Core Thickness: 2.28 inches
• Inlet Location: Upper driver side
• Outlet Location: Lower passenger side
• Inlet / Outlet Size: 1.500 inches
• Tank Design: Single-piece ribbed brass tanks for added strength
• Tube Construction: Coated double-lock seam joints
• Fin Design: OEM-style multi-louvered fins
• Side Channels: Coated steel
• Connection Design: Reinforced thru-pipe inlet and outlet connections
• Transmission Cooler: No
• Fan Included: No
• Radiator Cap Included: No
• Testing: Leak tested at 150% of operating pressure
• Installation: Direct-fit replacement
• Quantity: Sold individually
• OEM References: Toyota 16400-60011, 16400-60012, 16400-61020

Fitment:

• 1970-1974 Toyota Land Cruiser J40 3.9L L6
• 1975-1980 Toyota Land Cruiser J40 4.2L L6

Restore durable, OE-style cooling in your classic Toyota Land Cruiser with the CSF 2888 4-Row Copper/Brass Radiator. Designed for J40 Land Cruiser models with 3.9L or 4.2L inline-six engines, this downflow radiator uses a repairable copper/brass core, deep-drawn brass tanks, reinforced hose connections, and multi-louvered fins. Its four-row design provides dependable cooling capacity for restored, off-road, and regularly driven vintage Land Cruiser applications.
