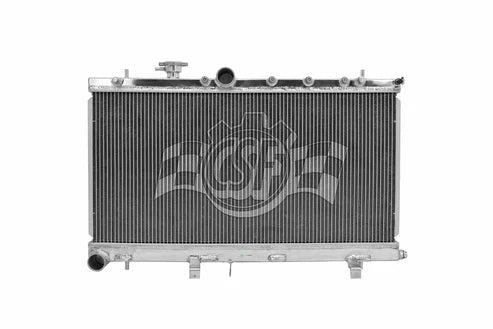

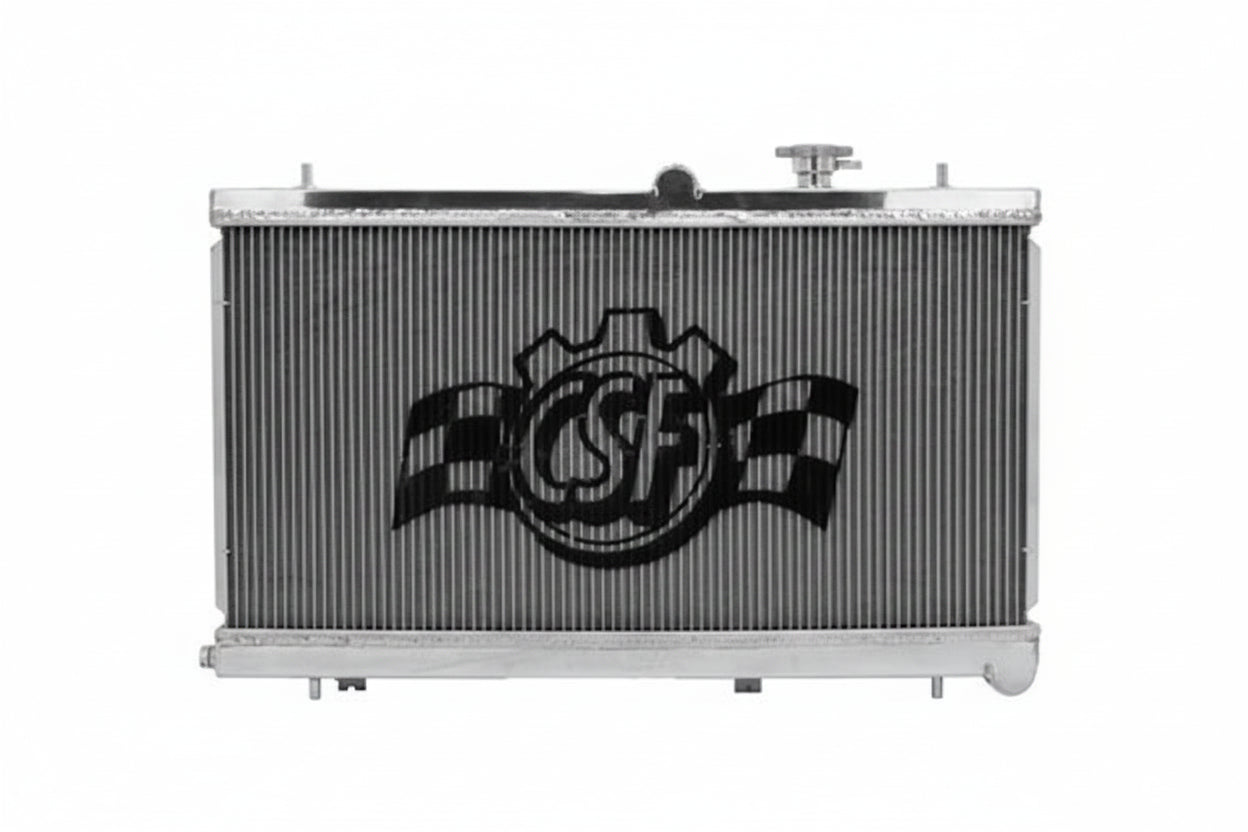

CSF All-Aluminum Radiator for 2002-2007 Subaru WRX/STI & 2004-2006 Baja - 3076

Key Features & Specs:

• Part Number: CSF 3076
• Product Type: High-performance all-aluminum radiator
• Core Design: 2-row, 42mm dual-core
• Tube Technology: CSF exclusive B-Tube technology
• Fin Design: 6.5mm tall multi-louvered fins
• Radiator Style: Downflow
• Finish: 1-hour hand-polished mirror finish

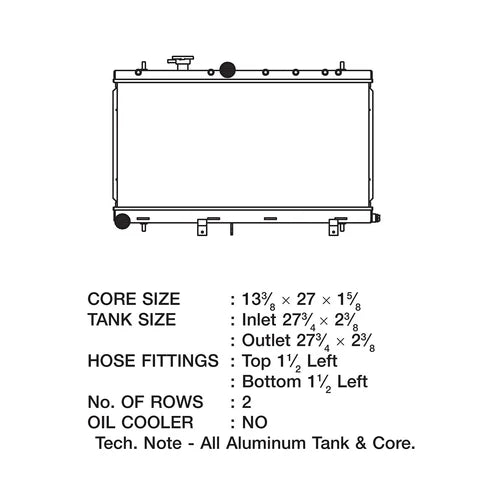

• Core Width: 27.00 inches
• Core Height: 13.38 inches
• Core Thickness: 1.63 inches
• Inlet Location: Center upper
• Outlet Location: Lower driver side
• Inlet Size: 1.500 inches
• Outlet Size: 1.500 inches
• Connections: CNC-machined quick-connect inlet and outlet fittings
• Mounting: CNC-machined brackets and fittings
• Drain Plug: All-aluminum race-style drain plug
• Filler Neck: Included
• Radiator Cap: Included
• Transmission Cooler: No
• Fan Included: No
• Installation: Direct drop-in fit; no modifications required
• OEM Component Compatibility: Accepts compatible OEM hoses, A/C condenser, brackets, and fan shroud
• Transmission Note: Manual-transmission applications only
• Replaces OEM Numbers: Subaru 45111FE000, 45119FE000

Fitment:

• 2002-2005 Subaru Impreza WRX 2.0L Turbo Manual
• 2004-2007 Subaru Impreza WRX STI 2.5L Turbo Manual
• 2006-2007 Subaru Impreza WRX 2.5L Turbo Manual
• 2004-2006 Subaru Baja 2.5L Manual

Upgrade cooling performance with the CSF 3076 High-Performance All-Aluminum Radiator for select 2002-2007 Subaru Impreza WRX, WRX STI, and 2004-2006 Subaru Baja manual-transmission models. This direct-fit radiator features a 42mm two-row dual core with CSF exclusive B-Tube technology and 6.5mm multi-louvered fins to support efficient heat dissipation. CNC-machined fittings, a race-style drain plug, integrated filler neck, and hand-polished finish deliver a durable cooling solution for street, track, and modified turbo Subaru builds.
