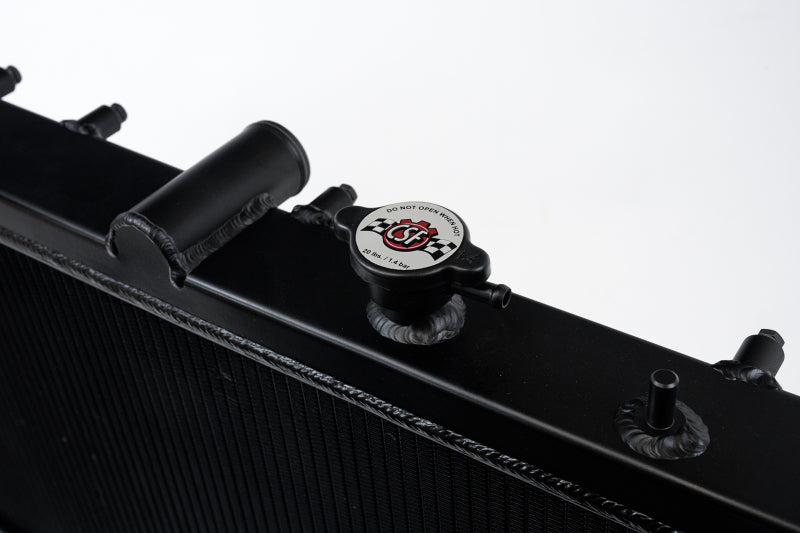

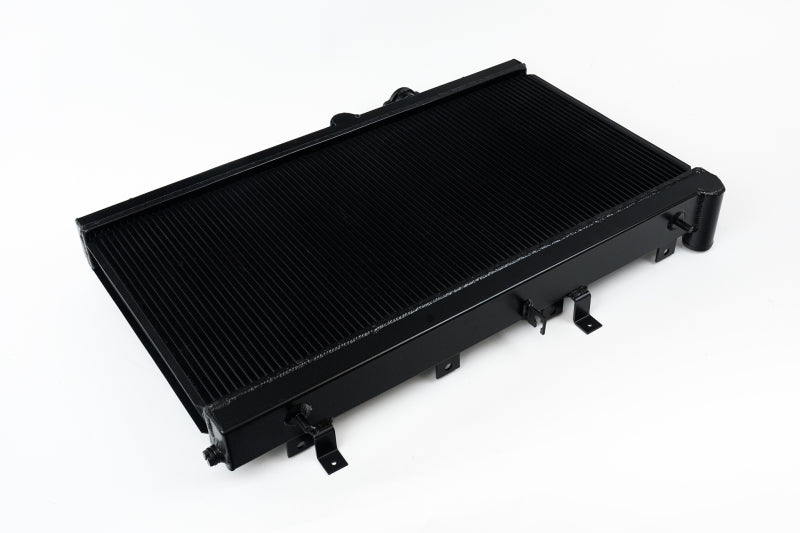

CSF Black Radiator for 2002-2007 Subaru WRX/STI & 2004-2006 Baja - 3076B

Key Features & Specs:

• Part Number: CSF 3076B
• Product Type: High-performance all-aluminum radiator
• Core Design: 2-row, 42mm dual-core configuration
• Tube Technology: CSF exclusive B-Tube technology
• Fin Design: 6.5mm tall multi-louvered fins
• Construction: All-aluminum construction
• Radiator Style: Downflow
• Finish: Black stealth finish
• Core Width: 27.00 inches
• Core Height: 13.38 inches
• Core Thickness: 1.63 inches
• Overall Width: 27.75 inches
• Overall Thickness: 2.38 inches
• Inlet Location: Center upper
• Outlet Location: Lower driver side
• Inlet Size: 1.500 inches
• Outlet Size: 1.500 inches
• Connections: CNC-machined quick-connect inlet and outlet fittings
• Mounting: CNC-machined brackets and fittings
• Drain Plug: All-aluminum race-style drain plug
• Filler Neck: Included
• Radiator Cap: Included
• Transmission Cooler: No
• Fan Included: No
• Installation: Direct drop-in fit; no modifications required
• OEM Compatibility: Accepts compatible OEM hoses, A/C condenser, mounting brackets, and fan shroud
• Transmission Note: Manual-transmission applications only
• Replaces OEM Numbers: Subaru 45111FE000, 45119FE000

Fitment:

• 2002-2005 Subaru Impreza WRX 2.0L Turbo Manual
• 2004-2007 Subaru Impreza WRX STI 2.5L Turbo Manual
• 2004-2006 Subaru Baja 2.5L Manual
• 2006-2007 Subaru Impreza WRX 2.5L Turbo Manual

Upgrade your turbo Subaru cooling system with the CSF 3076B Black High-Performance All-Aluminum Radiator. Designed for compatible 2002-2007 Subaru Impreza WRX and WRX STI models plus 2004-2006 Baja manual applications, this direct-fit radiator combines a 42mm two-row core, CSF B-Tube technology, and multi-louvered fins for efficient heat dissipation. TIG-welded aluminum construction, CNC-machined fittings, an integrated filler neck, and a stealth black finish deliver reliable cooling with an OEM-plus appearance.
