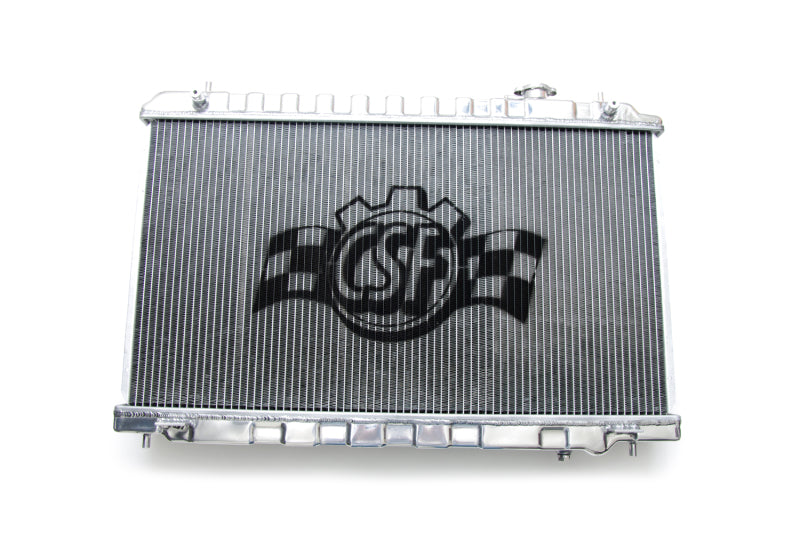

CSF Racing Radiator for 2003-2006 Nissan 350Z DE Manual - 3329

Key Features & Specs:

• Part Number: CSF 3329
• Product Type: High-performance all-aluminum racing radiator
• Application: Nissan 350Z Z33 with DE 3.5L V6 and manual transmission
• Core Design: 2-row, 42mm dual core with CSF B-Tube technology
• Fin Design: 6.5mm tall multi-louvered cooling fins
• Construction: All-aluminum radiator with CNC-machined brackets and fittings
• Radiator Style: Downflow
• Finish: Hand-polished mirror finish
• Inlet Location: Upper passenger side
• Outlet Location: Lower driver side
• Inlet Size: 1.375 inches
• Outlet Size: 1.375 inches
• Core Width: 28.69 inches
• Core Height: 15.75 inches
• Core Thickness: 2.06 inches
• Connections: CNC-machined quick-connect inlet and outlet fittings
• Drain Plug: All-aluminum race-style drain plug
• Transmission Cooler: No
• Fan Included: No
• Radiator Cap: Included
• Installation: Direct-fit; accepts OE hoses, A/C condenser, fan shroud, and mounting components
• Quantity: Sold individually
• Replaces OEM Number: Nissan 21410-CD010

Fitment:

• 2003-2006 Nissan 350Z Z33 3.5L V6 Manual

Improve cooling capacity in your 2003-2006 Nissan 350Z with the CSF 3329 High-Performance All-Aluminum Racing Radiator. Designed for manual-transmission Z33 models with the DE 3.5L V6, this direct-fit upgrade features a 42mm dual-row B-Tube core, 6.5mm multi-louvered fins, CNC-machined quick-connect hose fittings, and a polished finish. It accepts factory quick-connect hoses, A/C condenser, mounting brackets, and fan shroud for a no-modification installation.
