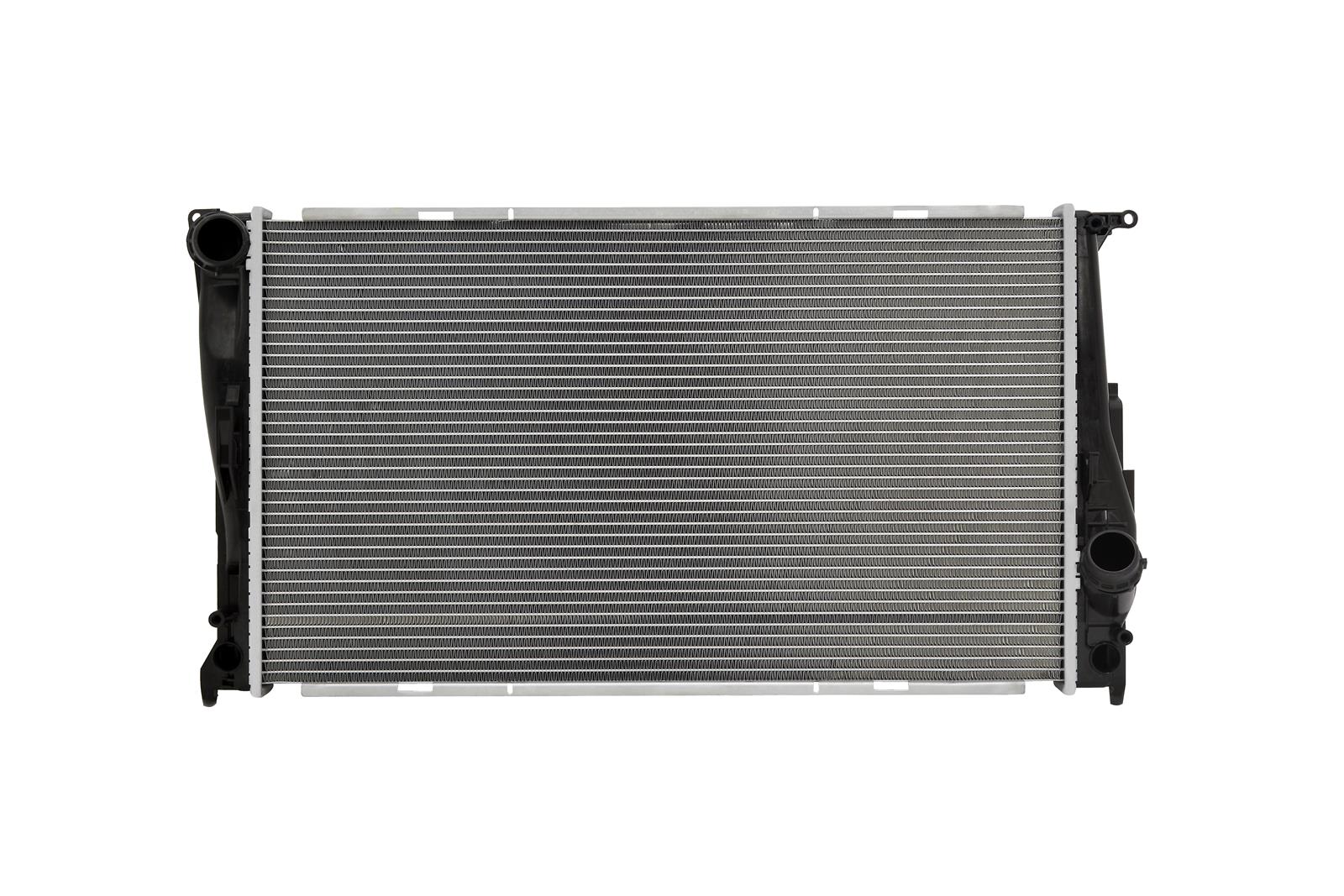

CSF Radiator for 2007-2016 BMW 135i, 335i, X1 & Z4 - 3717

Key Features & Specs:

• Part Number: CSF 3717
• Product Type: OE-style replacement radiator
• Construction: Aluminum core with plastic tanks
• Radiator Style: Crossflow
• Core Design: 1-row
• Finish: Natural

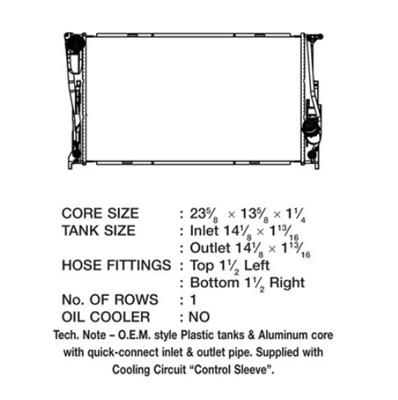

• Core Width: 13.63 inches
• Core Height: 23.63 inches
• Core Thickness: 1.25 inches
• Inlet Location: Upper driver side
• Outlet Location: Lower passenger side
• Inlet Size: 1.500 inches
• Outlet Size: 1.500 inches
• Connection Type: Quick-connect inlet and outlet design
• Cooling System Control Sleeve: Included
• Transmission Cooler: No
• Fan Included: No
• Radiator Cap Included: No
• Quantity: Sold individually

Fitment:

• 2008-2012 BMW 135i 3.0L Turbo
• 2007-2012 BMW 335i 3.0L Turbo
• 2009-2012 BMW 335i xDrive 3.0L Turbo
• 2007-2008 BMW 335xi 3.0L Turbo
• 2011-2012 BMW 335is 3.0L Turbo
• 2012-2015 BMW X1 2.0L Turbo
• 2013-2015 BMW X1 3.0L Turbo
• 2009-2016 BMW Z4 3.0L

Restore reliable OE-style cooling with the CSF 3717 radiator for select BMW 1 Series, 3 Series, X1, and Z4 models. This direct-replacement aluminum-core, plastic-tank radiator is designed for vehicles with quick-connect inlet and outlet connections. It includes the cooling system control sleeve and uses factory-style mounting and hose locations for a straightforward replacement on compatible BMW turbocharged and naturally aspirated applications.
