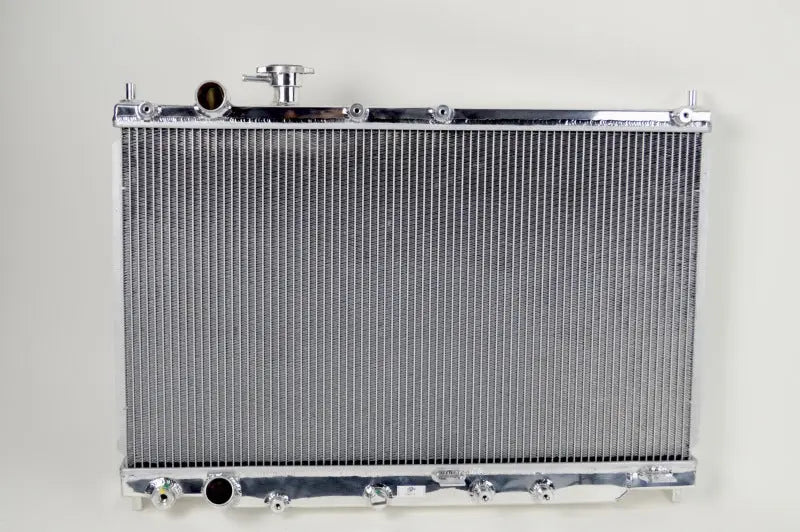

CSF All-Aluminum Radiator for 2000-2009 Honda S2000 AP1/AP2 - 7009

Key Features & Specs:

• Part Number: CSF 7009
• Product Type: High-performance all-aluminum radiator
• Core Design: 2-row, 42mm dual-core configuration
• Tube Technology: CSF exclusive B-Tube technology
• Fin Design: 6.5mm tall multi-louvered fins
• Radiator Style: Downflow
• Construction: All-aluminum construction
• Finish: 1-hour hand-polished mirror finish
• Core Width: 25.38 inches
• Core Height: 14.75 inches
• Core Thickness: 1.63 inches
• Inlet Location: Upper driver side
• Outlet Location: Lower driver side
• Inlet Size: 1.250 inches
• Outlet Size: 1.250 inches
• Connections: CNC-machined quick-connect inlet and outlet fittings
• Mounting: CNC-machined brackets and fittings
• Drain Plug: All-aluminum race-style drain plug
• Transmission Cooler: No
• Radiator Cap: Included
• Fan Included: No
• Installation: Direct drop-in fit; no modifications required
• OEM Compatibility: Accepts compatible OEM hoses, A/C condenser, mounting brackets, and fan shroud
• Replaces OEM Numbers: Honda 19010-PCX-013, 19010-PZX-A01

Fitment:

• 2000-2003 Honda S2000 AP1 2.0L L4
• 2004-2009 Honda S2000 AP2 2.2L L4

Upgrade cooling performance in your Honda S2000 with the CSF 7009 High-Performance All-Aluminum Radiator. Designed as a direct-fit replacement for AP1 and AP2 models, this radiator features a 42mm two-row core with CSF exclusive B-Tube technology and 6.5mm multi-louvered fins for efficient heat dissipation. CNC-machined fittings, TIG-welded aluminum construction, a race-style drain plug, and a hand-polished finish provide a durable cooling upgrade for street, track, and performance-focused S2000 builds.
