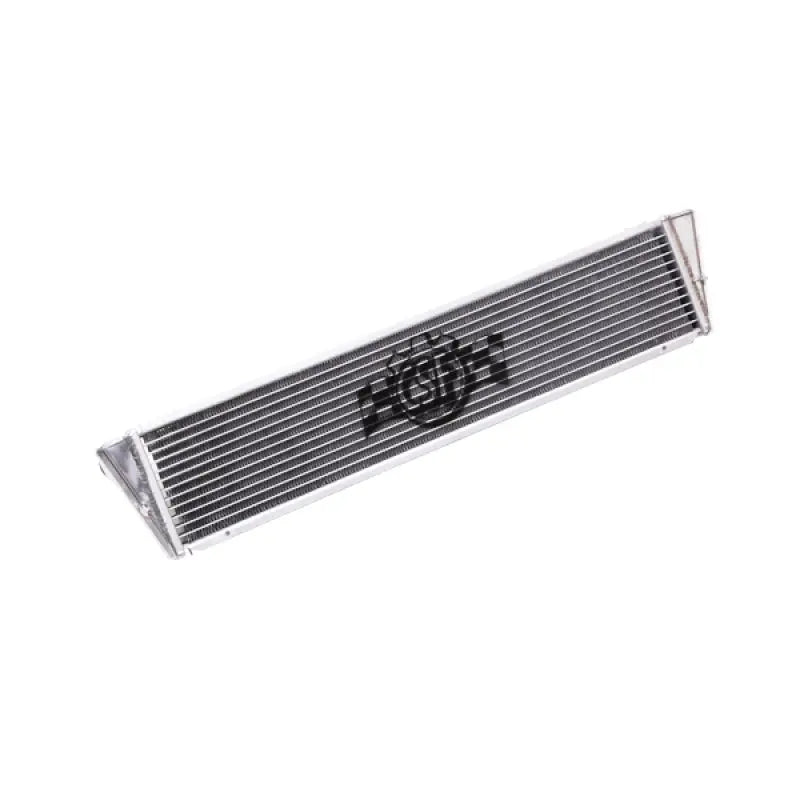

CSF Center Performance Radiator for 2005-2012 Porsche 911, Boxster & Cayman - 7049

Key Features & Specs:

• Part Number: CSF 7049
• Product Type: Center high-performance radiator
• Core Design: 2-row, 42mm core
• Tube Technology: CSF B-Tube technology
• Efficiency Claim: CSF states B-Tube technology provides up to 20% greater efficiency
• Fin Design: 6.5mm tall multi-louvered fins
• Construction: All-aluminum with 100% TIG-welded end tanks
• Radiator Style: Crossflow
• Finish: Smooth satin aluminum finish
• Core Width: 24.00 inches
• Core Height: 4.63 inches
• Core Thickness: 2.06 inches
• Inlet Location: Upper driver side
• Outlet Location: Upper passenger side
• Inlet / Outlet Size: 1.438 inches
• Connections: OEM-style machined inlet and outlet connections
• Mounting: CNC-machined brackets and fittings
• Installation: Direct-fit; no modifications required
• OE Component Compatibility: Accepts factory A/C condenser and fan shroud
• Transmission Cooler: No
• Fan Included: No
• Radiator Cap Included: No
• Position: Center radiator
• Testing: Individually leak and pressure tested
• Quantity: Sold individually
• OEM Reference: Porsche 99810603702

Fitment:

• 2005-2008 Porsche 911 Carrera 997 3.6L H6
• 2009-2012 Porsche 911 Carrera 997 3.6L H6
• 2007-2008 Porsche 911 Targa 4 997 3.6L H6
• 2009-2012 Porsche 911 Targa 4 997 3.6L H6
• 2007-2008 Porsche 911 Targa 4S 997 3.8L H6
• 2009-2012 Porsche 911 Targa 4S 997 3.8L H6
• 2005-2006 Porsche Boxster S 987 3.2L H6
• 2007-2012 Porsche Boxster S 987 3.4L H6
• 2005-2008 Porsche Boxster 987 2.7L H6
• 2009-2012 Porsche Boxster 987 2.9L H6
• 2011-2012 Porsche Boxster Spyder 987 3.4L H6
• 2007-2008 Porsche Cayman 987 2.7L H6
• 2009-2012 Porsche Cayman 987 2.9L H6
• 2007-2012 Porsche Cayman S 987 3.4L H6
• 2012 Porsche Cayman R 987 3.4L H6

Upgrade the center cooling circuit in your Porsche with the CSF 7049 High-Performance All-Aluminum Radiator. Designed for select 997-generation 911 Carrera and Targa models plus 987 Boxster, Boxster Spyder, Cayman, and Cayman R applications, this direct-fit center radiator features a 42mm two-row core with CSF B-Tube technology and 6.5mm multi-louvered fins. TIG-welded aluminum construction, CNC-machined mounts, and OEM-style connections provide a durable cooling upgrade for street, track, and replacement use.
