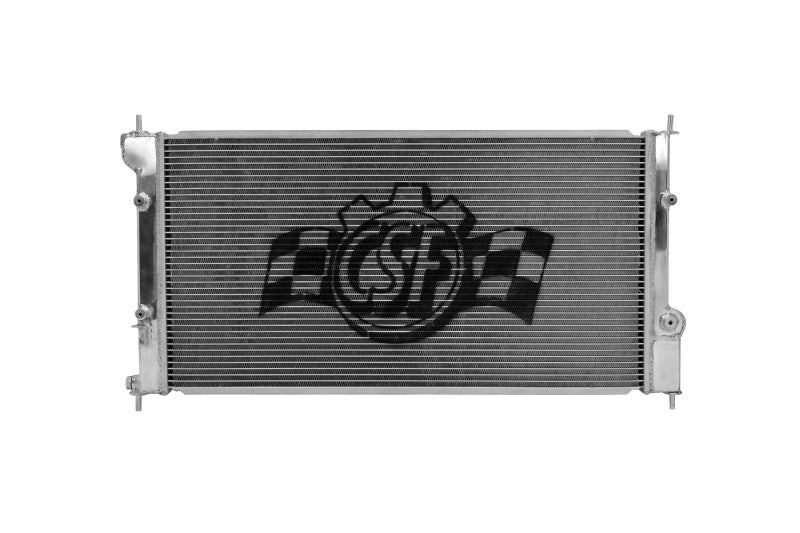

CSF High-Performance Radiator for 2013-2025 FR-S, BRZ, 86 & GR86 - 7050

Key Features & Specs:

• Part Number: CSF 7050
• Product Type: High-performance all-aluminum radiator
• Core Design: 2-row high-performance core
• Tube Technology: CSF exclusive B-Tube technology
• Fin Design: 6.5mm tall multi-louvered fins
• Radiator Style: Crossflow
• Construction: All-aluminum construction
• Finish: Polished smooth satin finish

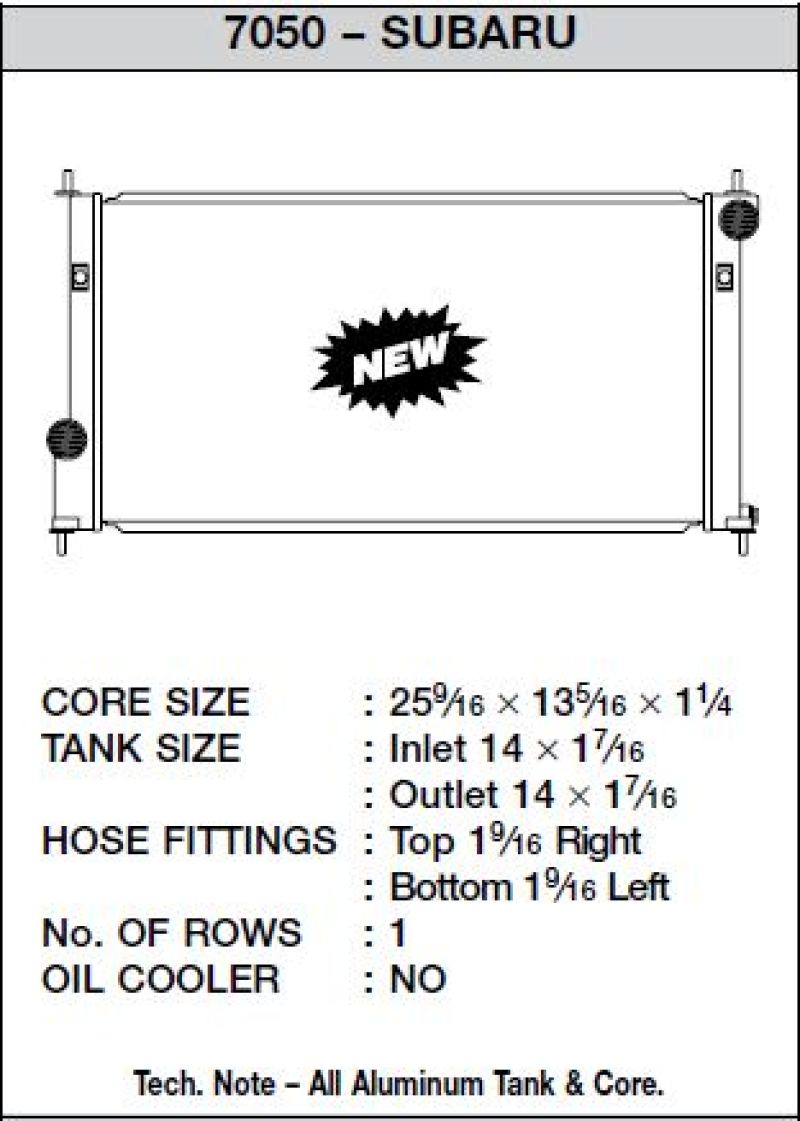

• Core Width: 25.56 inches
• Core Height: 13.31 inches
• Core Thickness: 1.25 inches
• Inlet Location: Upper passenger side
• Outlet Location: Lower driver side
• Inlet Size: 1.563 inches
• Outlet Size: 1.563 inches
• Connections: CNC-machined quick-connect inlet and outlet fittings
• Mounting: CNC-machined brackets and fittings
• Drain Plug: All-aluminum race-style drain plug
• Transmission Cooler: No
• Fan Included: No
• Radiator Cap Included: No
• Installation: Direct drop-in fit; no modifications required
• OEM Component Compatibility: Accepts compatible OEM hoses, A/C condenser, mounting brackets, and fan shroud
• Replaces OEM Numbers: Toyota SU00301172, SU00309077; Subaru 45111CA000, 45111CC000

Fitment:

• 2013-2016 Scion FR-S 2.0L H4
• 2013-2020 Subaru BRZ 2.0L H4
• 2017-2020 Toyota 86 2.0L H4
• 2022-2025 Subaru BRZ 2.4L H4
• 2024-2025 Subaru BRZ Limited 2.4L H4
• 2024-2025 Subaru BRZ Premium 2.4L H4
• 2024-2025 Subaru BRZ Sport-tech 2.4L H4
• 2022-2025 Toyota GR86 2.4L H4
• 2024-2025 Toyota GR86 Premium 2.4L H4
• 2024 Toyota GR86 TRUENO Edition 2.4L H4
• 2025 Toyota GR86 Hakone Edition 2.4L H4

Upgrade cooling performance with the CSF 7050 High-Performance All-Aluminum Radiator for Scion FR-S, Subaru BRZ, Toyota 86, and Toyota GR86 applications. This direct-fit radiator features a two-row core with CSF exclusive B-Tube technology and multi-louvered fins to support efficient heat transfer during daily driving, track use, and modified street builds. CNC-machined quick-connect fittings, brackets, and a race-style drain plug provide durable fitment, while the polished satin finish adds a premium engine-bay appearance without requiring modifications.
