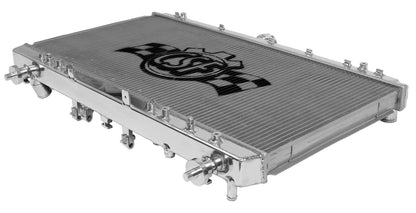

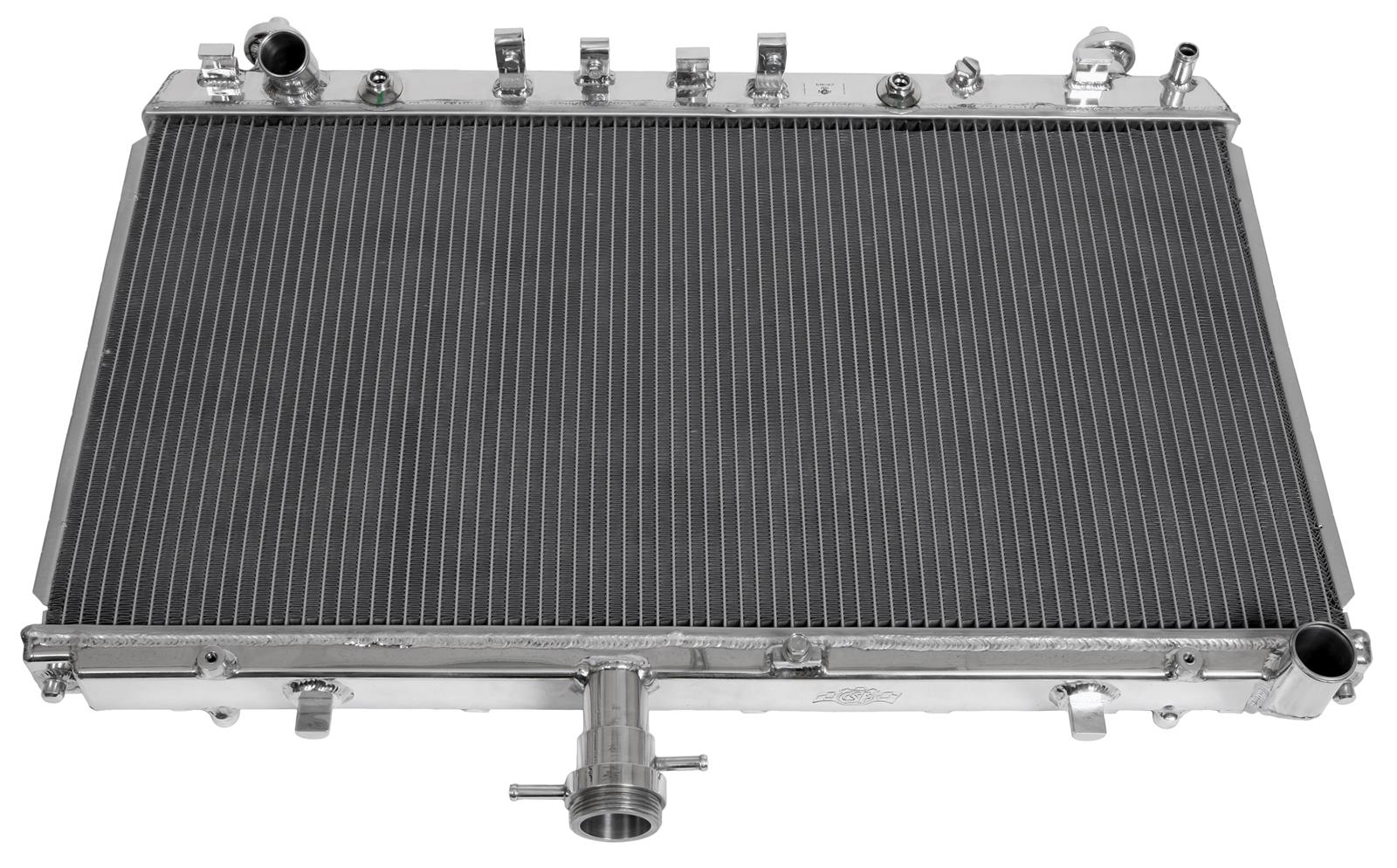

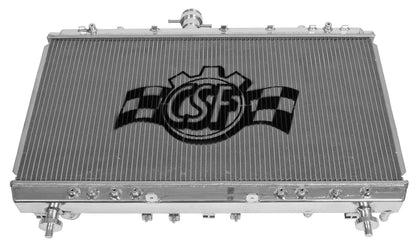

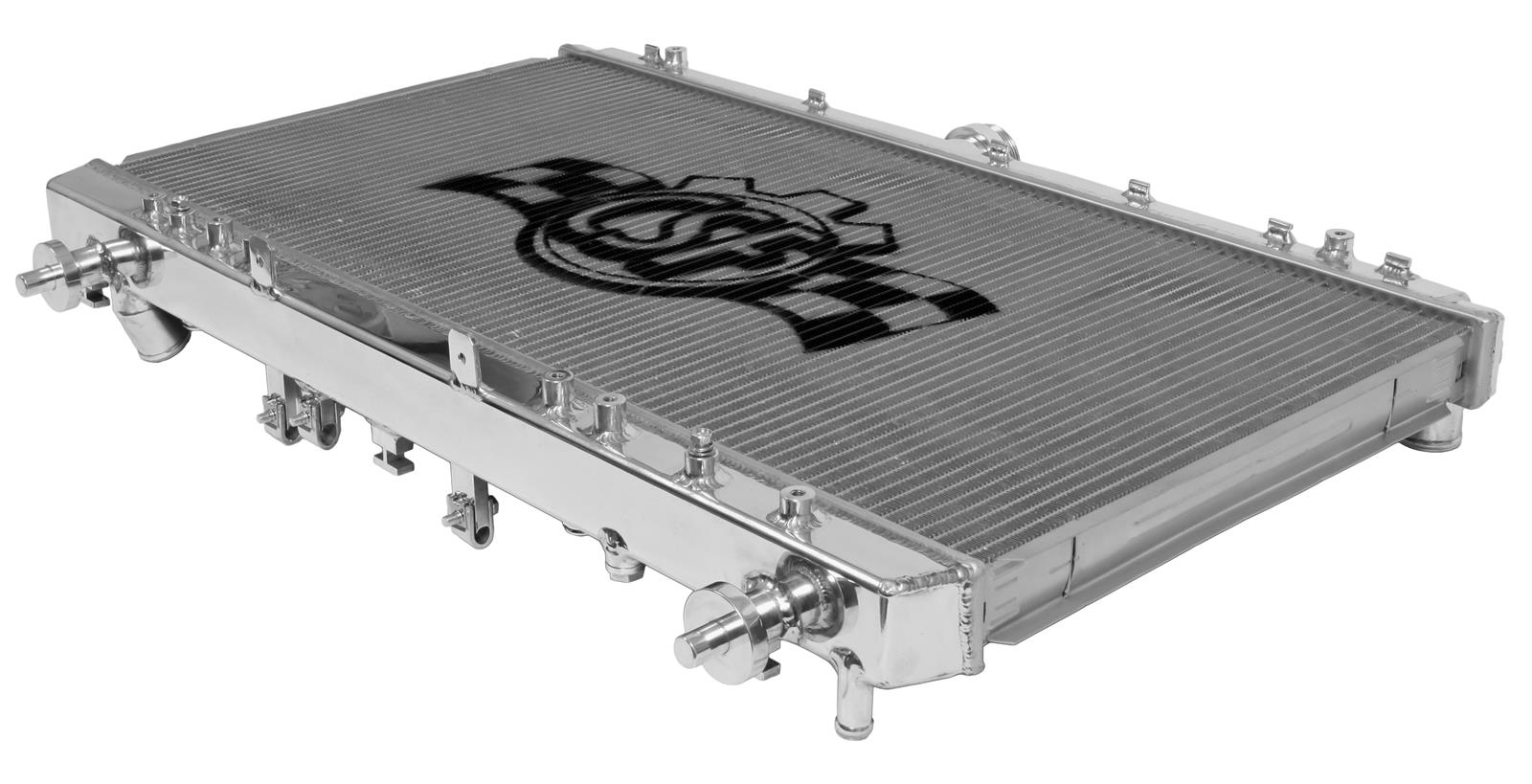

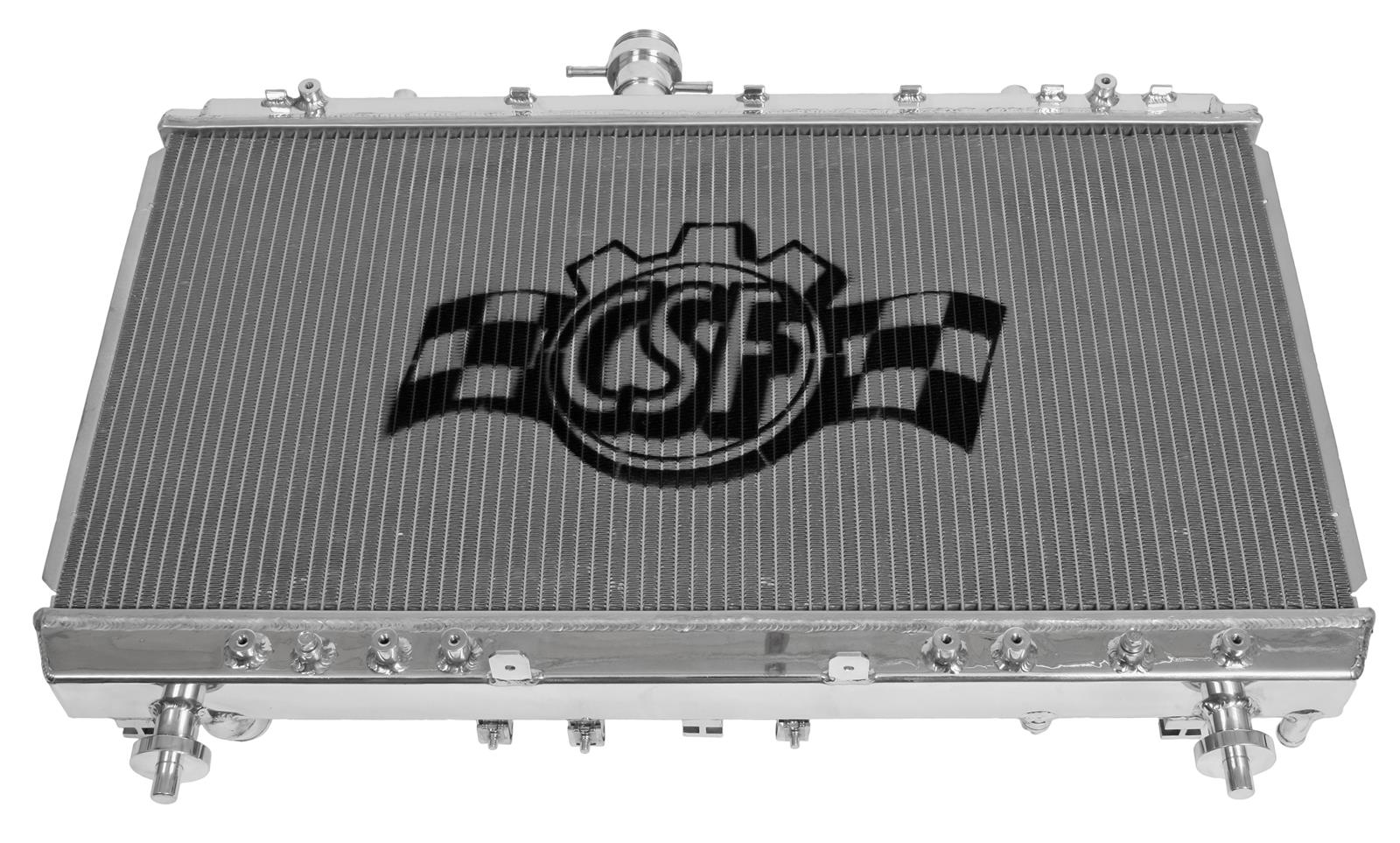

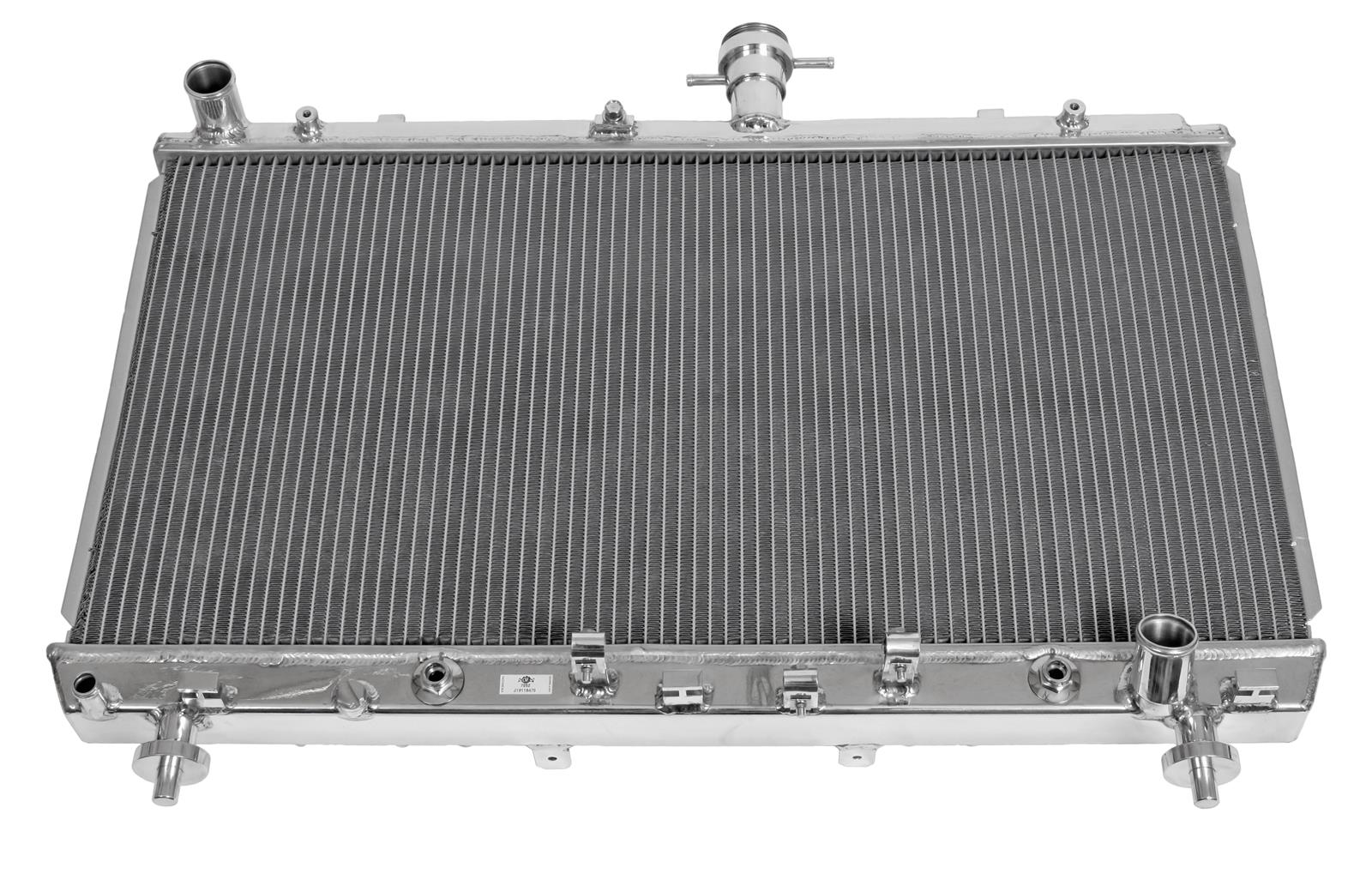

CSF All-Aluminum Radiator for 2012-2015 Chevrolet Camaro V6 & V8 - 7052

Key Features & Specs:

• Part Number: CSF 7052
• Product Type: High-performance all-aluminum radiator
• Core Design: 2-row, 42mm dual-core configuration
• Tube Technology: CSF exclusive B-Tube technology
• Fin Design: 6.5mm tall multi-louvered fins
• Radiator Style: Downflow
• Construction: All-aluminum performance construction
• Finish: 1-hour hand-polished mirror finish
• Core Width: 30.06 inches
• Core Height: 15.69 inches
• Core Thickness: 1.63 inches
• Connections: CNC-machined quick-connect inlet and outlet fittings
• Mounting: CNC-machined brackets and fittings
• Transmission Cooler: Built-in cooler included
• Transmission Cooler Connection: Quick-disconnect
• Transmission Cooler Adapter Fittings: Not included
• Drain Plug: All-aluminum race-style drain plug
• Radiator Cap: Included
• Fan Included: No
• Installation: Direct drop-in fit; no modifications required
• OEM Compatibility: Accepts compatible OEM hoses, A/C condenser, mounting brackets, and fan shroud
• Replaces OEM Numbers: Chevrolet 22786864, 22762595, 22879423

Fitment:

• 2012-2015 Chevrolet Camaro 3.6L V6 Manual
• 2012-2015 Chevrolet Camaro 6.2L V8 Manual
• 2012-2015 Chevrolet Camaro 6.2L V8 Automatic
• 2012-2015 Chevrolet Camaro ZL1 Supercharged 6.2L V8 Manual
• 2012-2015 Chevrolet Camaro ZL1 Supercharged 6.2L V8 Automatic
• 2014-2015 Chevrolet Camaro Z/28 7.0L V8 Manual

Upgrade cooling performance in your fifth-generation Chevrolet Camaro with the CSF 7052 High-Performance All-Aluminum Radiator. This direct-fit radiator uses a 42mm two-row core with CSF exclusive B-Tube technology and 6.5mm multi-louvered fins to support efficient heat dissipation in street, track, and high-output V6 and V8 applications. CNC-machined quick-connect fittings, a built-in transmission cooler, and hand-polished aluminum construction provide a durable OEM-compatible cooling upgrade with no modifications required.
