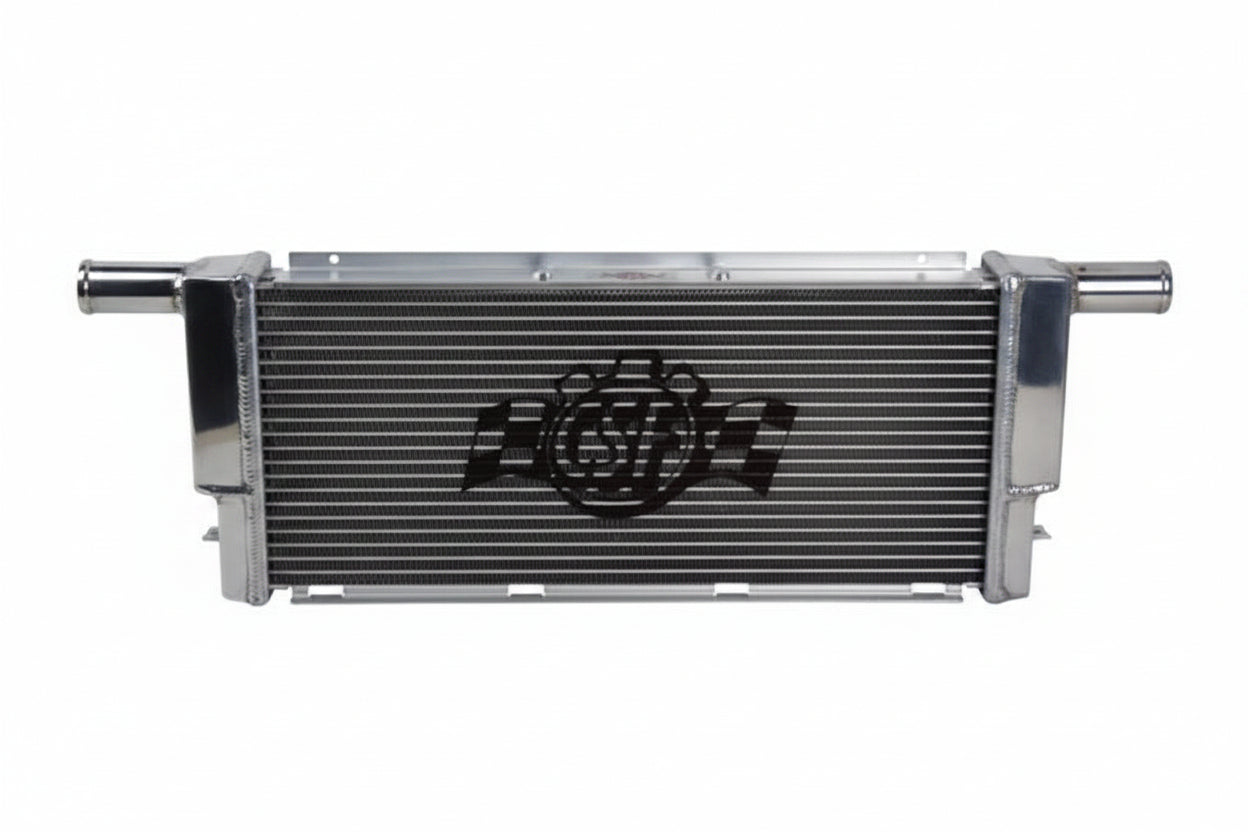

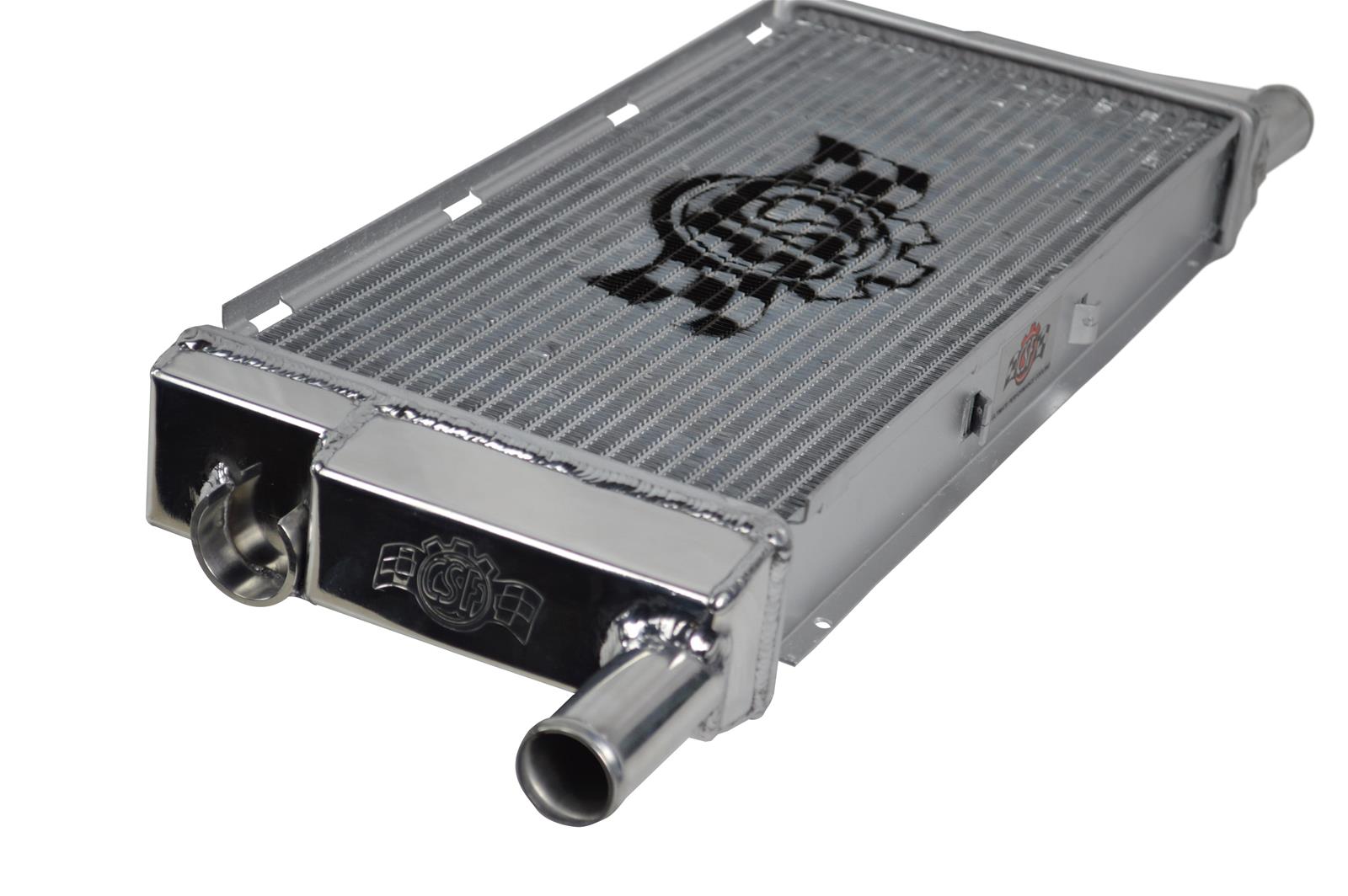

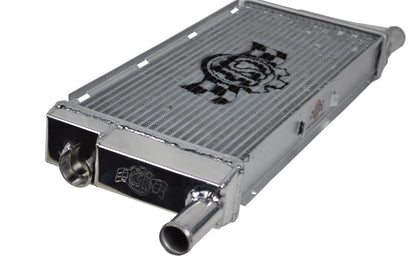

CSF Center Auxiliary Radiator for Porsche 911, Boxster & Cayman - 7060

Key Features & Specs:

• Part Number: CSF 7060
• Product Type: Center auxiliary radiator
• Core Design: 2-row, 42mm high-performance core
• Tube Technology: CSF B-Tube technology
• Efficiency Claim: CSF states B-Tube technology provides up to 20% greater efficiency
• Fin Design: 6.5mm tall multi-louvered fins
• Construction: All-aluminum radiator with TIG-welded end tanks
• Radiator Style: Downflow
• Finish: Smooth satin finish
• Core Width: 15.38 inches
• Core Height: 6.94 inches
• Core Thickness: 1.63 inches
• Inlet Location: Upper driver side
• Outlet Location: Lower driver side
• Inlet / Outlet Size: 1.125 inches
• Connections: OEM-style machined inlet and outlet connections
• Mounting: CNC-machined brackets and fittings
• Installation: Direct-fit; accepts the OE A/C condenser and fan shroud
• Transmission Cooler: No
• Fan Included: No
• Radiator Cap Included: No
• Testing: Individually leak and pressure tested
• Quantity: Sold individually
• Replaces OEM Numbers: Porsche 99110613701, 99110613702, 9P1121253

Fitment:

• 2012-2016 Porsche 911 Carrera 991.1 3.4L H6
• 2012-2016 Porsche 911 Carrera S 991.1 3.8L H6
• 2013-2016 Porsche 911 Carrera 4 991.1 3.4L H6
• 2013-2016 Porsche 911 Carrera 4S 991.1 3.8L H6
• 2015-2016 Porsche 911 Carrera GTS 991.1 3.8L H6
• 2015-2016 Porsche 911 Carrera 4 GTS 991.1 3.8L H6
• 2014-2016 Porsche 911 Targa 4 991.1 3.4L H6
• 2014-2016 Porsche 911 Targa 4S 991.1 3.8L H6
• 2016 Porsche 911 Targa 4 GTS 991.1 3.8L H6
• 2017-2019 Porsche 911 Carrera 991.2 3.0L Turbo
• 2017-2019 Porsche 911 Carrera S 991.2 3.0L Turbo
• 2017-2019 Porsche 911 Carrera 4 991.2 3.0L Turbo
• 2017-2019 Porsche 911 Carrera 4S 991.2 3.0L Turbo
• 2018-2019 Porsche 911 Carrera GTS 991.2 3.0L Turbo
• 2018-2019 Porsche 911 Carrera 4 GTS 991.2 3.0L Turbo
• 2018-2019 Porsche 911 Carrera T 991.2 3.0L Turbo
• 2017-2019 Porsche 911 Targa 4 991.2 3.0L Turbo
• 2017-2019 Porsche 911 Targa 4S 991.2 3.0L Turbo
• 2018-2019 Porsche 911 Targa 4 GTS 991.2 3.0L Turbo
• 2013-2016 Porsche Boxster 981 2.7L H6
• 2013-2016 Porsche Boxster S 981 3.4L H6
• 2015-2016 Porsche Boxster GTS 981 3.4L H6
• 2014-2016 Porsche Cayman 981 2.7L H6
• 2014-2016 Porsche Cayman S 981 3.4L H6
• 2015-2016 Porsche Cayman GTS 981 3.4L H6
• 2017-2022 Porsche 718 Boxster 982 2.0L Turbo
• 2017-2022 Porsche 718 Boxster S 982 2.5L Turbo
• 2018-2020 Porsche 718 Boxster GTS 982 2.5L Turbo
• 2020-2022 Porsche 718 Boxster T 982 2.0L Turbo
• 2021-2022 Porsche 718 Boxster GTS 4.0 982 4.0L H6
• 2017-2022 Porsche 718 Cayman 982 2.0L Turbo
• 2017-2022 Porsche 718 Cayman S 982 2.5L Turbo
• 2018-2020 Porsche 718 Cayman GTS 982 2.5L Turbo
• 2020-2022 Porsche 718 Cayman T 982 2.0L Turbo
• 2021-2022 Porsche 718 Cayman GTS 4.0 982 4.0L H6
• 2020-2022 Porsche 718 Spyder 982 4.0L H6

Upgrade the center auxiliary cooling circuit in your Porsche with the CSF 7060 High-Performance All-Aluminum Radiator. Designed for select 991.1/991.2 911, 981 Boxster/Cayman, and 982 718 Boxster/Cayman applications, this direct-fit unit features a 42mm two-row core with CSF B-Tube technology and multi-louvered fins for improved heat transfer. TIG-welded aluminum construction, CNC-machined mounts, and OEM-style connections provide a durable replacement or performance cooling upgrade without modifying the vehicle.
