CSF Performance Radiator for 1997-2003 BMW E39 M5 & 540i - 7064

Key Features & Specs:

• Part Number: CSF 7064
• Product Type: High-performance all-aluminum radiator
• Core Design: 2-row, 42mm dual-core configuration
• Tube Technology: CSF exclusive B-Tube technology
• Fin Design: 6.5mm tall multi-louvered fins
• Construction: All-aluminum performance construction
• Radiator Style: Crossflow
• Finish: Smooth satin-polished finish

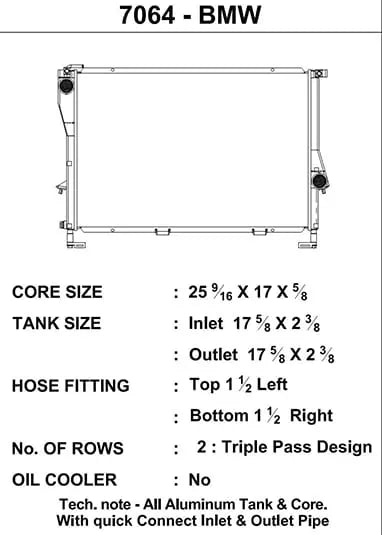

• Core Width: 25.56 inches
• Core Height: 17.00 inches
• Inlet Location: Upper driver side
• Outlet Location: Lower passenger side
• Inlet Size: 1.500 inches
• Outlet Size: 1.500 inches
• Connections: CNC-machined quick-connect inlet and outlet fittings
• Mounting: CNC-machined brackets and fittings
• Drain Plug: All-aluminum race-style drain plug
• Transmission Cooler: No integrated transmission cooler
• Fan Included: No
• Radiator Cap Included: No
• Installation: Direct-fit for compatible manual-transmission applications
• Automatic Fitment: Compatible with applicable automatic models after minor drain-plug modification
• Replaces OEM Numbers: BMW 17111436062, 17111436060
• Quantity: Sold individually

Fitment:

• 1997-2003 BMW 540i E39 4.4L V8 Manual — verify pre-09/1998 vehicle details
• 1997-2003 BMW 540i E39 4.4L V8 Automatic — after 09/1998; minor drain-plug modification required
• 1999-2003 BMW M5 E39 4.9L V8 Manual

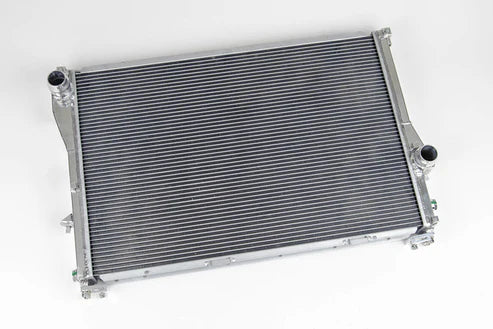

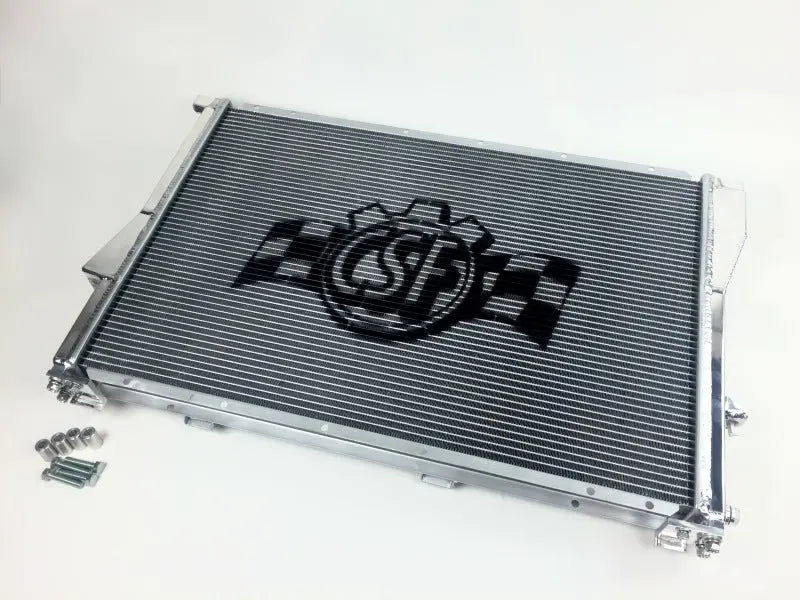

Upgrade cooling performance in your BMW E39 M5 or 540i with the CSF 7064 High-Performance All-Aluminum Radiator. Built around a two-row 42mm B-Tube core with multi-louvered fins, this radiator is engineered to improve heat dissipation for demanding street and performance driving. CNC-machined quick-connect fittings, race-style drain plug, and OEM-compatible mounting points provide a durable replacement that retains factory hoses, A/C condenser, fan shroud, and mounting hardware.
