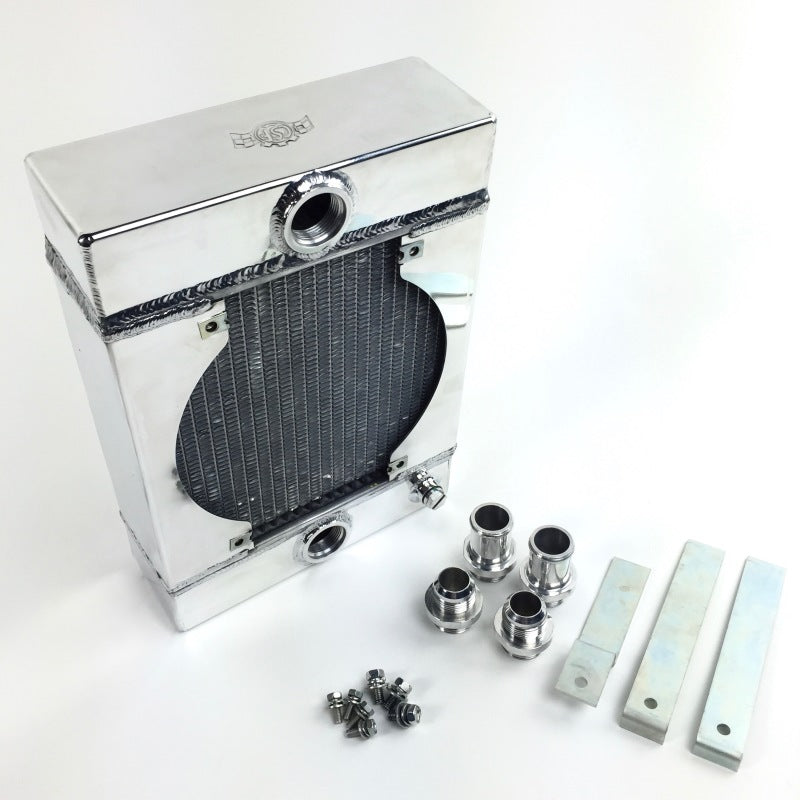

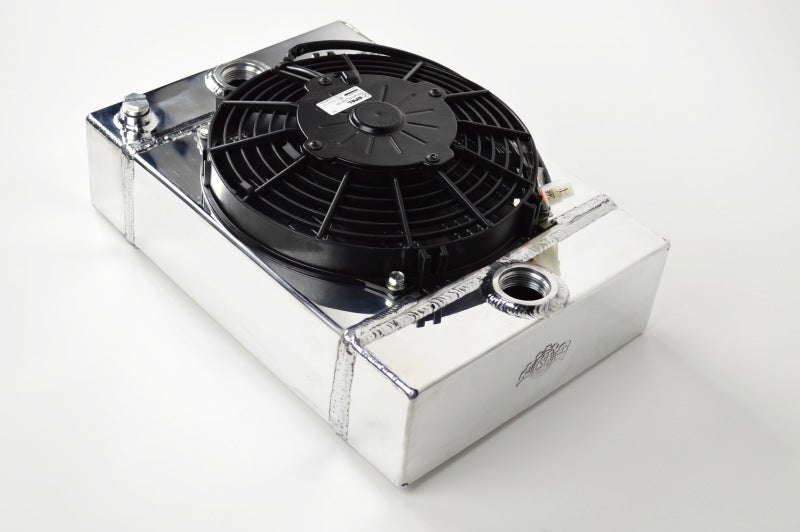

CSF KING Cooler Universal Drag Race Tuck Radiator with SPAL Fan - 7065

Key Features & Specs:

• Part Number: CSF 7065
• Product Type: Universal drag race / tuck radiator kit
• Core Design: 3.5-inch-thick, 2-row core with CSF B-Tube technology
• Construction: All-aluminum downflow radiator
• Finish: Hand-polished mirror finish
• Fan Included: Single 9-inch SPAL electric fan
• Fan Blade / Shroud: Black plastic fan blade and black plastic shroud
• Inlet / Outlet Connections: Threaded bungs accept 1.25-inch slip-on or -16 AN fittings
• Fittings Included: Two -16 AN fittings and two 1.25-inch nipple fittings
• Inlet Location: Center upper
• Outlet Location: Center
• Bung Thread Size: 1 5/16-inch x 12G
• Drain Plug Thread Size: M12 x 1.5
• Mounting: Universal installation brackets included
• Core Thickness: 3.50 inches
• Overall Dimensions: 14.5 inches high x 10.5 inches wide x 3.6 inches thick
• Overall Thickness with Fan: 5.65 inches
• Fluid Capacity: 2.95 liters / 0.78 gallon
• Weight: Approximately 8.0 lbs with fan and two fittings installed
• Transmission Cooler: No
• Radiator Cap: Not included
• Quantity: Sold individually

Fitment:

• Universal: Intended for custom drag race, compact engine-bay, and tucked-radiator applications
• Installation Note: Vehicle-specific mounting, hose routing, fan wiring, and cooling-system fabrication may be required. Confirm dimensions and connection requirements before ordering.

The CSF 7065 KING Cooler is a compact universal radiator engineered for drag racing, tucked engine bays, and custom cooling-system builds. Its 3.5-inch-thick two-row B-Tube core delivers high-capacity cooling in a compact package, while the included 9-inch SPAL electric fan, mounting brackets, and interchangeable inlet/outlet fittings help simplify installation. Finished in a hand-polished mirror finish, this all-aluminum downflow radiator is built for performance-focused custom applications where space and cooling efficiency are critical.
