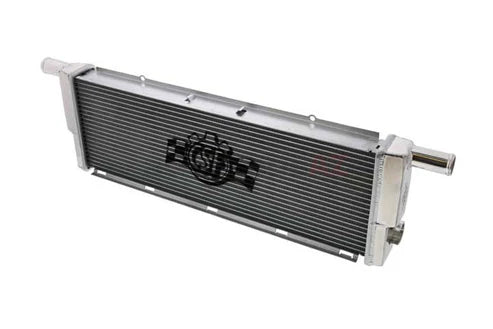

CSF Center Radiator for Porsche 991 Turbo/GT3 & 981/982 GT4 - 7068

Key Features & Specs:

• Part Number: CSF 7068
• Product Type: High-performance center radiator
• Core Design: 2-row, 42mm core
• Tube Technology: CSF exclusive B-Tube technology
• Cooling Efficiency: CSF-rated up to 20% greater efficiency
• Fin Design: 6.5mm tall multi-louvered fins
• Construction: All-aluminum radiator with TIG-welded end tanks
• Radiator Style: Crossflow
• Finish: Smooth satin-polished finish

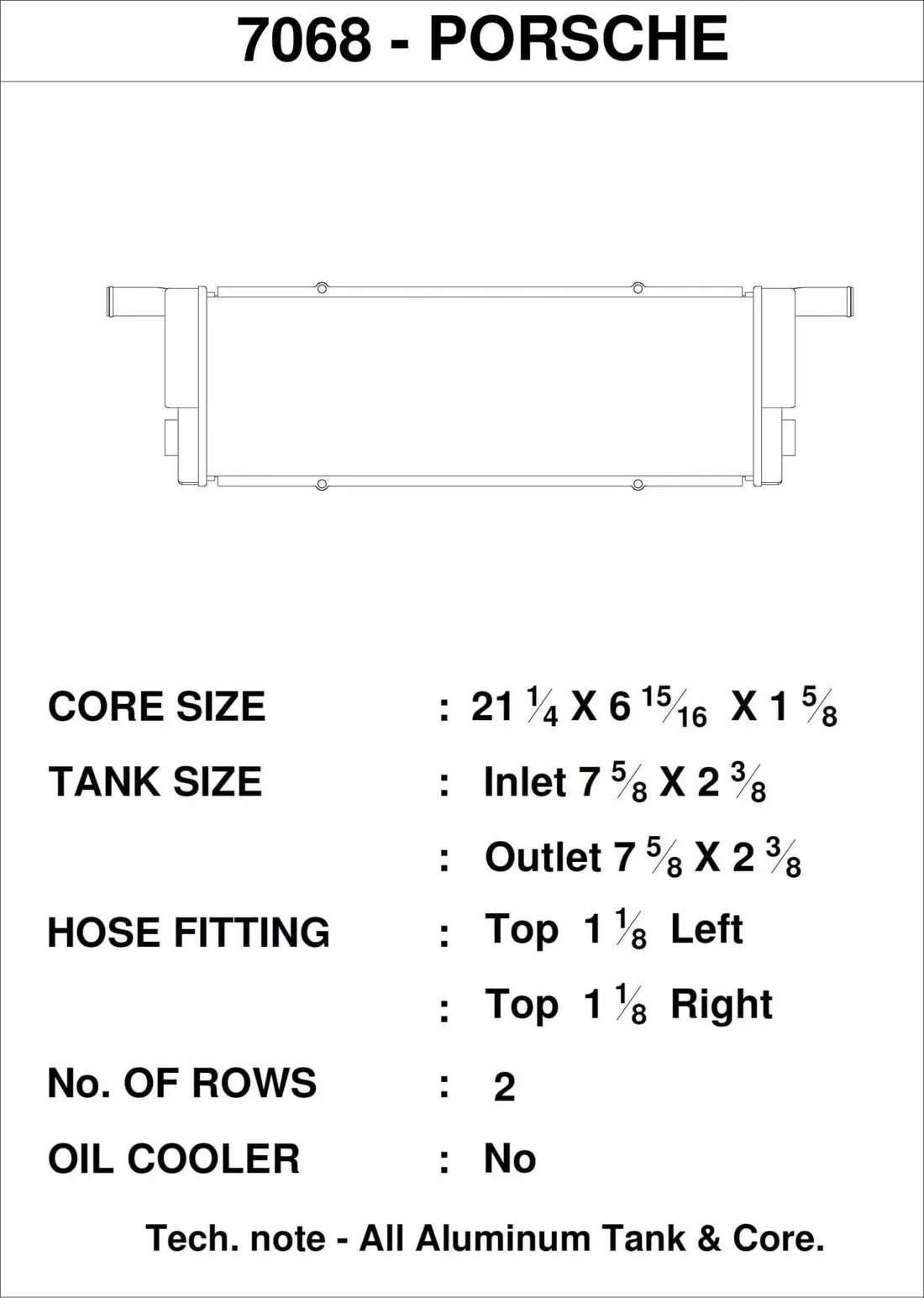

• Core Width: 21.25 inches
• Core Height: 6.94 inches
• Core Thickness: 1.63 inches
• Inlet Location: Upper driver side
• Outlet Location: Upper passenger side
• Connections: OEM-style machined inlet and outlet connections
• Mounting: CNC-machined brackets and fittings
• Installation: Plug-and-play drop-in fit; no modifications required
• OEM Component Compatibility: Accepts the OEM A/C condenser and fan shroud
• Transmission Cooler: No
• Fan Included: No
• Radiator Cap Included: No
• Testing: Individually leak and pressure tested
• Quantity: Sold individually
• Replaces OEM Numbers: Porsche 99110613802, 99110613801, 99110603890

Fitment:

• 2013-2016 Porsche 911 Turbo 991.1 3.8L Twin-Turbo
• 2013-2016 Porsche 911 Turbo S 991.1 3.8L Twin-Turbo
• 2014-2016 Porsche 911 GT3 991.1 3.8L H6
• 2016 Porsche 911 GT3 RS 991.1 4.0L H6
• 2016 Porsche 911 R 991.1 4.0L H6
• 2016 Porsche Boxster Spyder 981 3.8L H6
• 2016 Porsche Cayman GT4 981 3.8L H6
• 2017-2019 Porsche 911 Turbo 991.2 3.8L Twin-Turbo
• 2017-2019 Porsche 911 Turbo S 991.2 3.8L Twin-Turbo
• 2018-2019 Porsche 911 GT2 RS 991.2 3.8L Twin-Turbo
• 2019 Porsche 911 Speedster 991.2 4.0L H6
• 2020-2024 Porsche 718 Cayman GT4 982 4.0L H6
• 2020-2024 Porsche 718 Spyder 982 4.0L H6
• 2021-2025 Porsche 718 Cayman GTS 4.0 982 4.0L H6
• 2021-2025 Porsche 718 Boxster GTS 4.0 982 4.0L H6
• 2021-2022 Porsche 718 Boxster 25 Years 982 4.0L H6
• 2022-2025 Porsche 718 Cayman GT4 RS 982 4.0L H6
• 2024-2025 Porsche 718 Spyder RS 982 4.0L H6

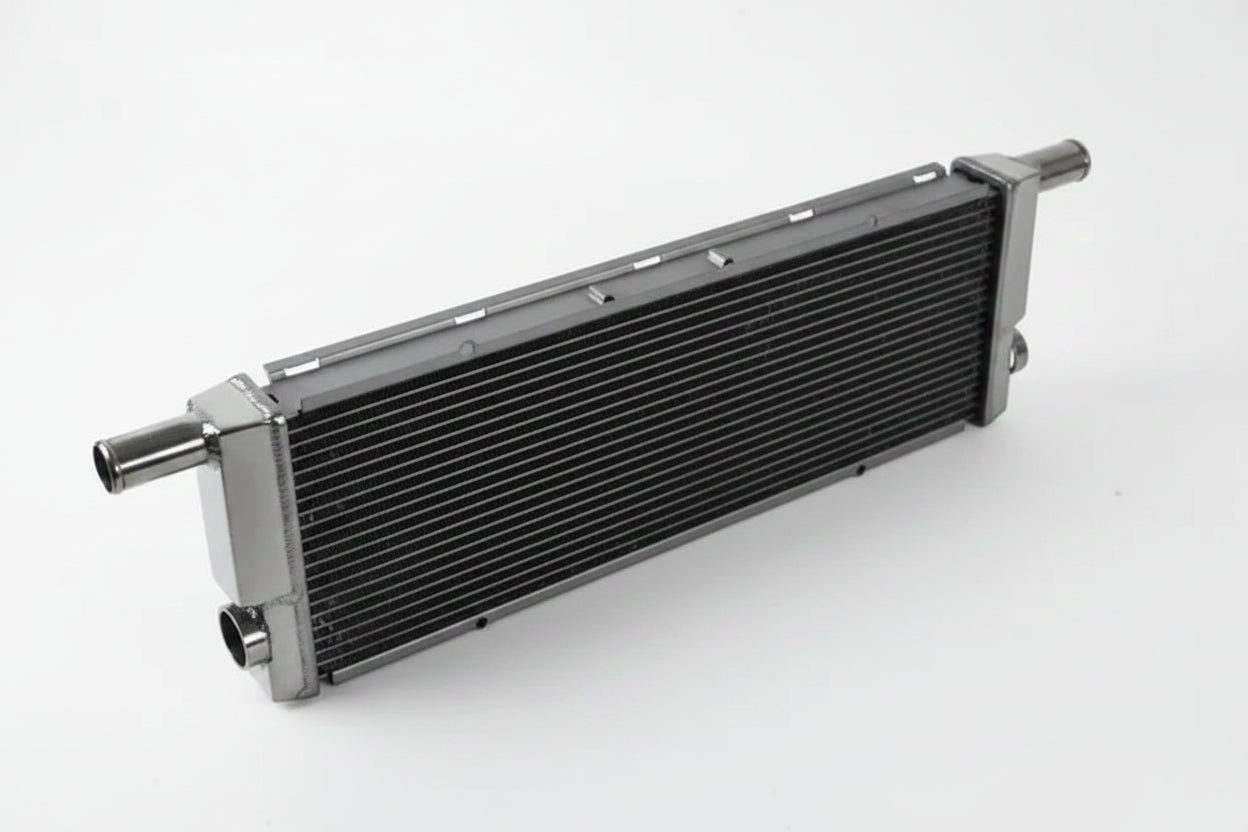

Upgrade center-radiator cooling performance with the CSF 7068 High-Performance All-Aluminum Center Radiator for select Porsche 911, Boxster, and Cayman models. This direct-fit radiator uses a 42mm two-row core with CSF B-Tube technology and multi-louvered fins to increase cooling surface area and heat transfer. TIG-welded aluminum end tanks, CNC-machined fittings, and OEM-style connections create a durable replacement for street, track, and professional racing applications while retaining compatibility with the factory A/C condenser and fan shroud.
