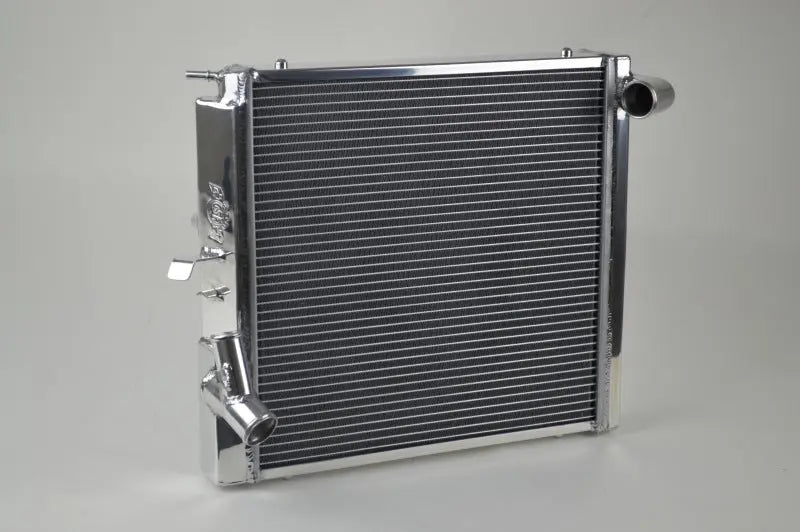

CSF Right-Side Performance Radiator for 2013-2019 Porsche 911 Turbo & GT3 - 7070

Key Features & Specs:

• Part Number: CSF 7070
• Product Type: Right-side high-performance radiator
• Core Design: 2-row, 42mm core
• Tube Technology: CSF B-Tube technology
• Efficiency Claim: CSF states B-Tube technology offers up to 20% greater efficiency
• Fin Design: 6.5mm tall multi-louvered fins
• Construction: All-aluminum with 100% TIG-welded end tanks
• Radiator Style: Crossflow
• Finish: Smooth satin aluminum finish
• Core Width: 14.25 inches
• Core Height: 14.31 inches
• Core Thickness: 1.63 inches
• Inlet Location: Upper passenger side
• Outlet Location: Lower driver side
• Connections: OEM-style machined inlet and outlet connections
• Mounting: CNC-machined brackets and fittings
• Installation: Direct-fit installation with no modifications required
• OE Component Compatibility: Accepts the factory A/C condenser and fan shroud
• Transmission Cooler: No
• Fan Included: No
• Radiator Cap Included: No
• Quantity: Sold individually
• Position: Right side only
• Testing: Individually leak and pressure tested
• OEM Reference: Porsche 99110614201

Fitment:

• 2013-2019 Porsche 911 Turbo 991 3.8L Turbo H6
• 2013-2019 Porsche 911 Turbo S 991 3.8L Turbo H6
• 2014-2016 Porsche 911 GT3 991 3.8L H6
• 2016 Porsche 911 GT3 RS 991 4.0L H6
• 2016 Porsche 911 R 991 4.0L H6

Upgrade the right-side cooling circuit of your Porsche 991 with the CSF 7070 High-Performance All-Aluminum Radiator. Designed for select 911 Turbo, Turbo S, GT3, GT3 RS, and 911 R applications, this direct-fit radiator features a 42mm two-row core with CSF B-Tube technology and 6.5mm multi-louvered fins for improved heat transfer. TIG-welded aluminum construction, CNC-machined fittings, and OEM-style connections provide a durable cooling solution for street, track, and high-performance builds.
