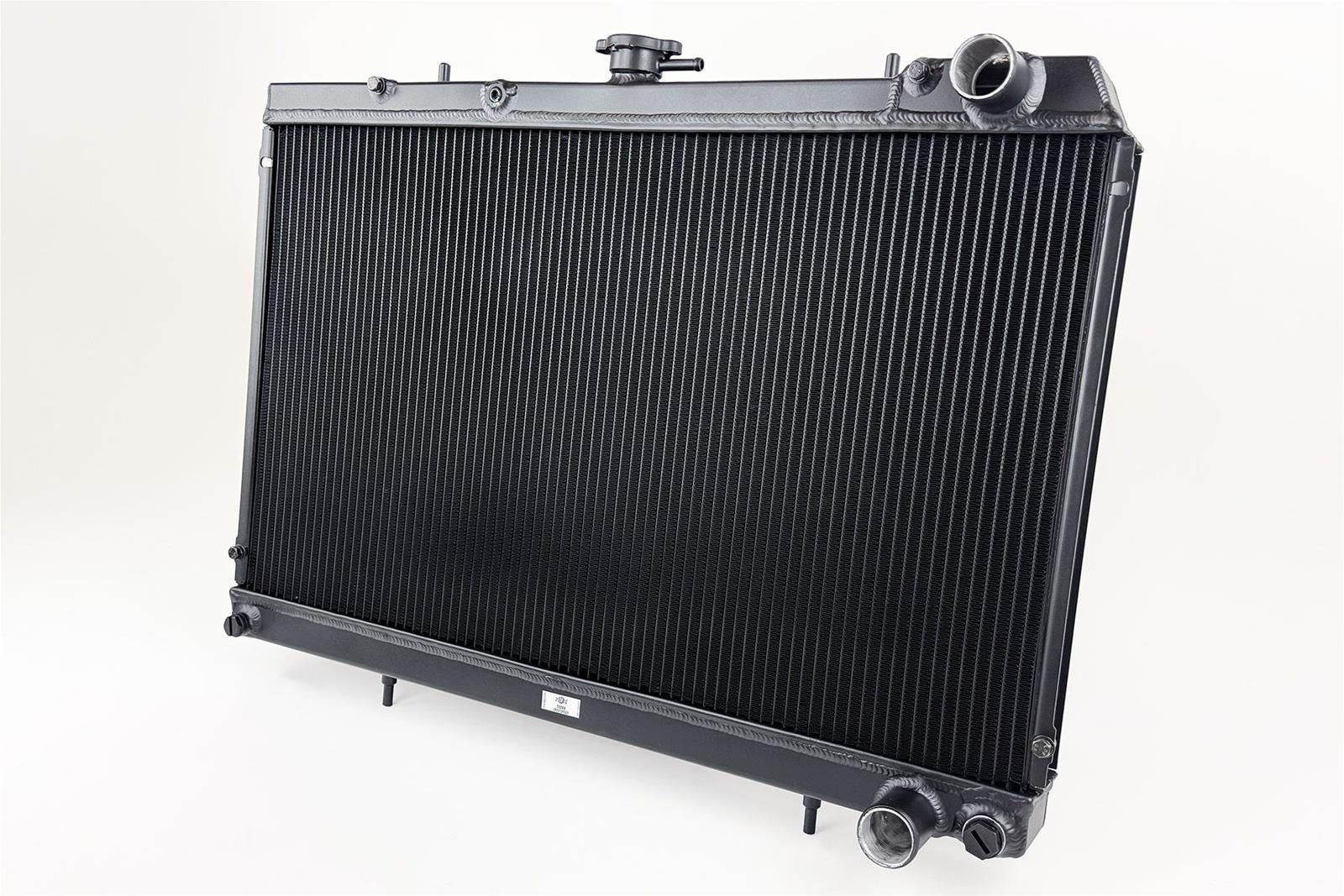

CSF Black Performance Radiator for 1989-1994 Nissan R32 Skyline - 7229B

Key Features & Specs:

• Part Number: CSF 7229B
• Product Type: High-performance all-aluminum radiator
• Core Design: 2-row, 42mm ultra-high-performance core
• Cooling Tubes: 75 CSF B-Tube cooling tubes
• Fin Design: 6.5mm tall multi-louvered fins
• Construction: 100% TIG-welded aluminum
• Radiator Style: Downflow
• Finish: Black
• Core Width: 25.35 inches
• Core Height: 17.72 inches
• Core Thickness: 1.65 inches
• Inlet Location: Upper driver-side and upper passenger-side connections
• Outlet Location: Lower passenger side
• Inlet / Outlet Size: 1.378 inches
• Temperature Sensor Ports: 1/8-inch NPT port plus M16 x 1.5 sensor port with pre-installed plug
• Mounting: CNC-machined mounting pins with OE fan-shroud mounting points
• Connections: OEM-style inlet and outlet connections
• Radiator Cap: CSF-logo 1.4-bar high-pressure cap included
• Transmission Cooler: No
• Fan Included: No
• Installation: Plug-and-play drop-in fit with no modifications required
• Testing: Individually leak and pressure tested
• Warranty: 2-year limited warranty
• OEM Reference: Nissan 21410-04U01
• Quantity: Sold individually

Fitment:

• 1989-1994 Nissan Skyline R32 GT-R L6
• 1989-1993 Nissan Skyline R32 GTE L6
• 1989-1993 Nissan Skyline R32 GTS L6
• 1989-1993 Nissan Skyline R32 GTS-25 L6
• 1989-1993 Nissan Skyline R32 GTS-4 L6
• 1989-1993 Nissan Skyline R32 GTS-t L6
• 1989-1993 Nissan Skyline R32 GXi L4
• 1990 Nissan Skyline R32 GT-R Nismo
• 1991-1993 Nissan Skyline R32 Autech Version

Upgrade cooling performance with the CSF 7229B Black High-Performance All-Aluminum Radiator for Nissan R32 Skyline applications. This direct-fit radiator features a 42mm two-row core with 75 CSF B-Tube cooling tubes and 6.5mm multi-louvered fins for efficient heat dissipation in street, track, and turbocharged builds. TIG-welded aluminum construction, OE-style fan-shroud mounting points, temperature-sensor provisions, and a 1.4-bar radiator cap provide a durable, plug-and-play cooling upgrade.
