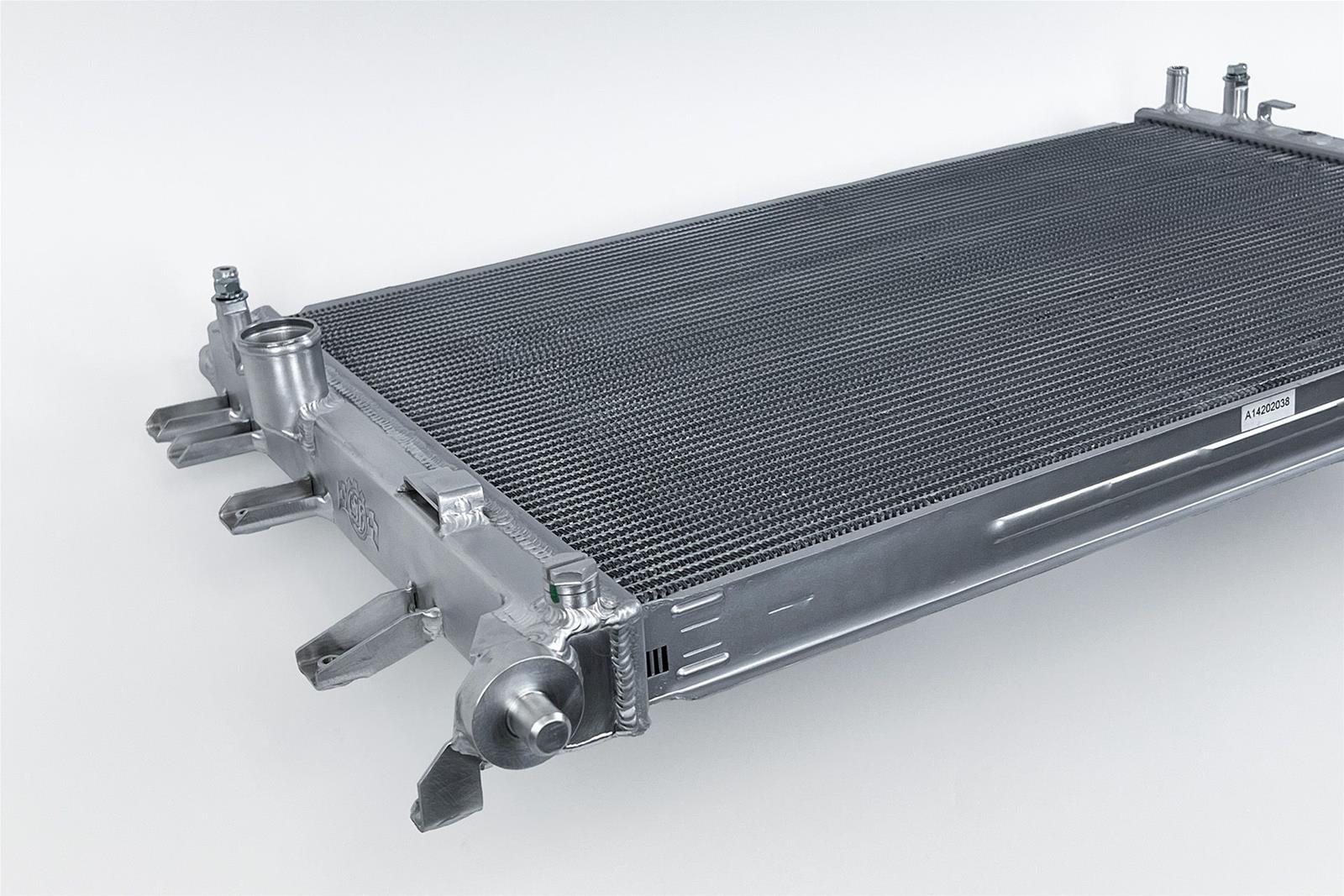

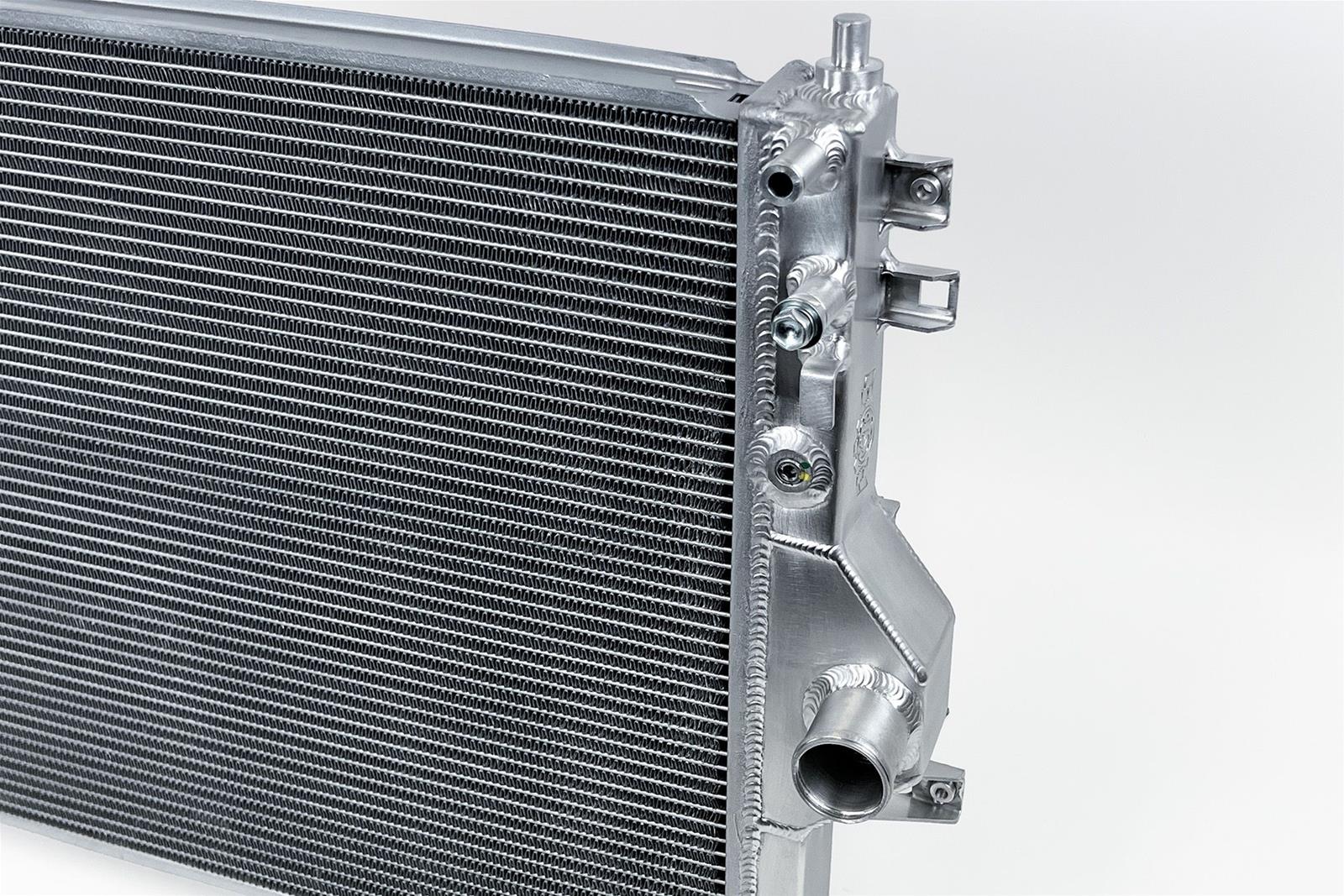

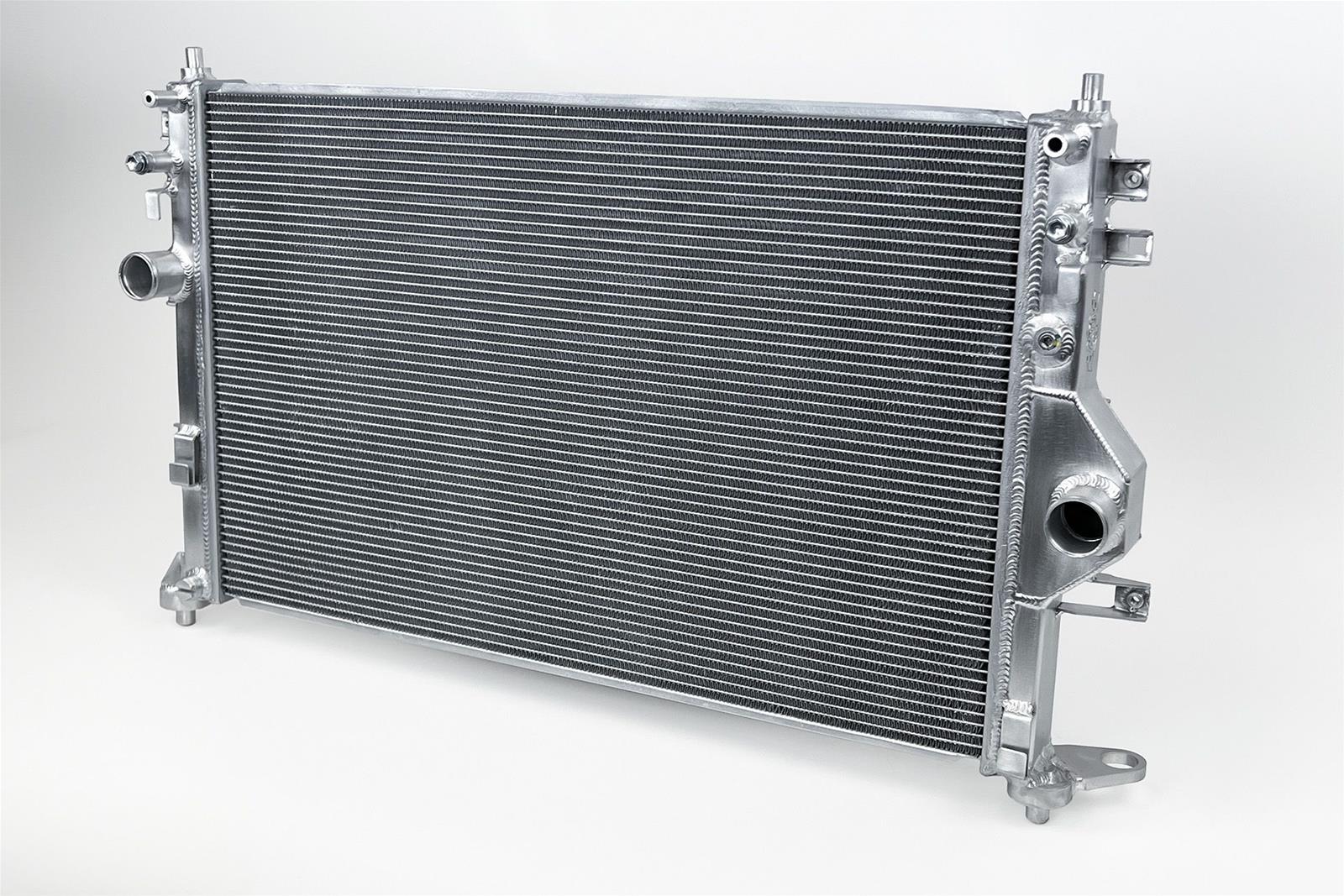

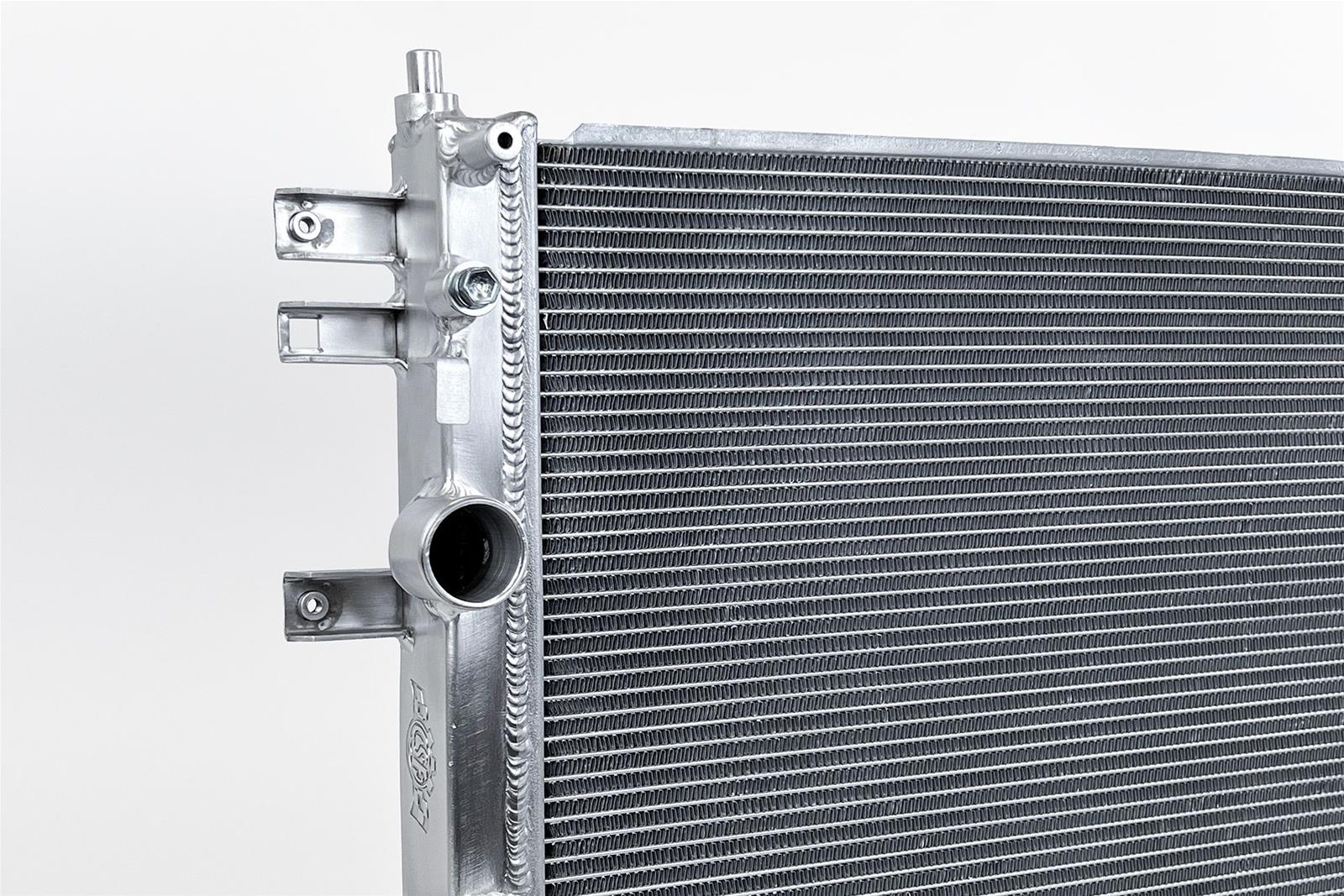

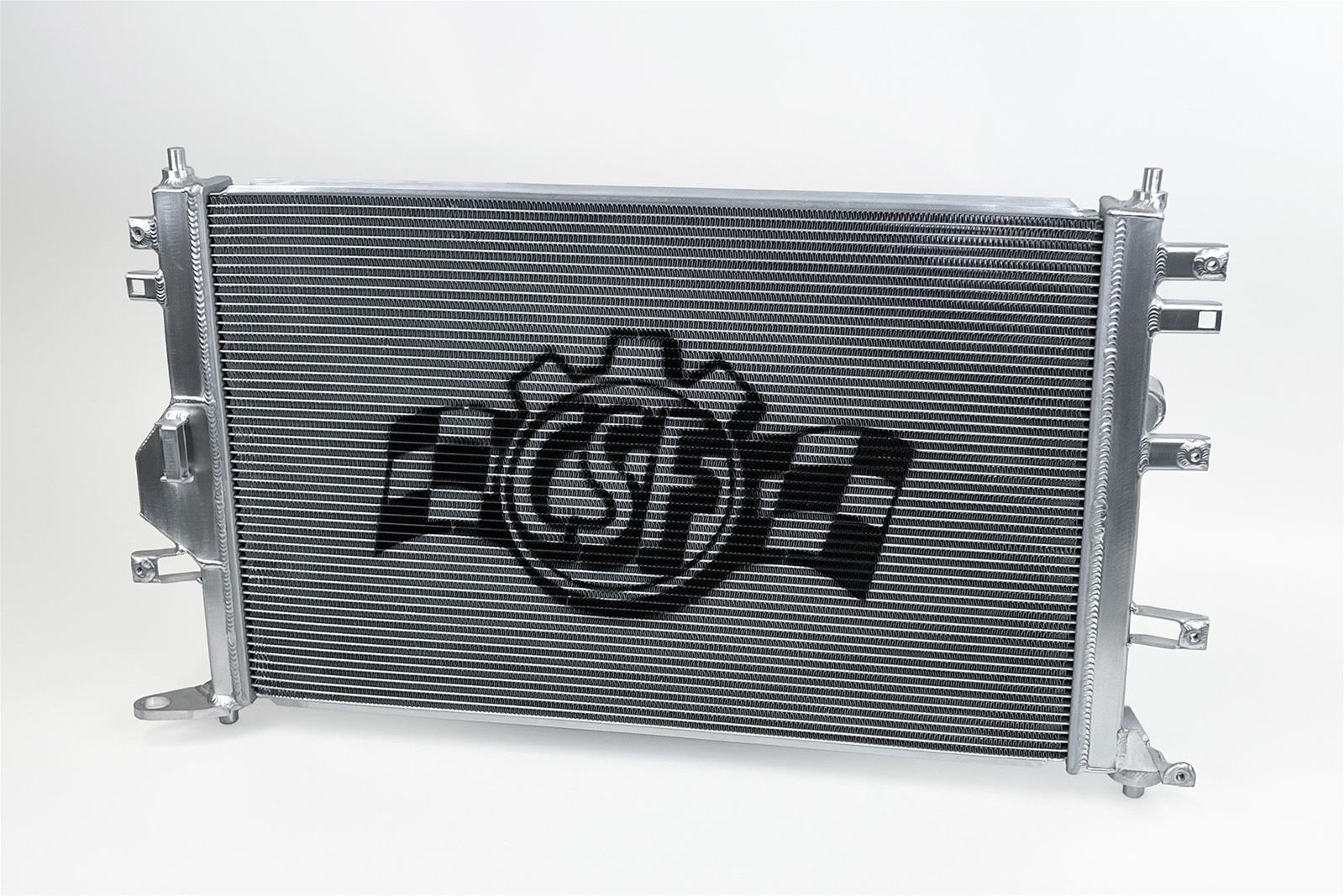

CSF High-Performance Radiator for 2020-2026 Toyota GR Yaris & GR Corolla - 7233

Key Features & Specs:

• Part Number: CSF 7233
• Product Type: High-performance all-aluminum radiator
• Core Design: 2-row, 42mm ultra-high-performance core
• Tube Technology: CSF exclusive B-Tube technology
• Fin Design: 5mm Track-Spec multi-louvered fins
• Construction: 100% TIG-welded aluminum construction
• Finish: Hand-brushed satin finish
• Connections: OEM-style inlet and outlet connections
• Mounting: CNC-machined mounting brackets
• Temperature Sensor Port: Pre-plugged 1/8-inch NPT port in right-side tank
• Sealing: Pre-installed foam strips on upper and lower end plates
• Intercooler Clearance: Recessed lower end tank supports clearance for the CSF x Jackson Racing intercooler and other larger aftermarket intercooler piping
• Installation: Plug-and-play drop-in fit; no modifications required
• Testing: Individually leak and pressure tested
• Warranty: 2-year limited warranty
• Replaces OEM Numbers: Toyota 16400-18060, 16400-18050

Fitment:

• 2020-2026 Toyota GR Yaris 1.6L Turbo
• 2023-2026 Toyota GR Corolla 1.6L Turbo

Upgrade cooling capacity in your Toyota GR Corolla or GR Yaris with the CSF 7233 High-Performance All-Aluminum Radiator. Built around a 42mm two-row core with CSF B-Tube technology and Track-Spec multi-louvered fins, this direct-fit radiator supports effective heat dissipation in demanding street, track, and modified turbocharged applications. TIG-welded aluminum construction, OEM-style connections, a pre-plugged temperature-sensor port, and added intercooler-pipe clearance provide a durable OEM-plus cooling solution with no modifications required.
