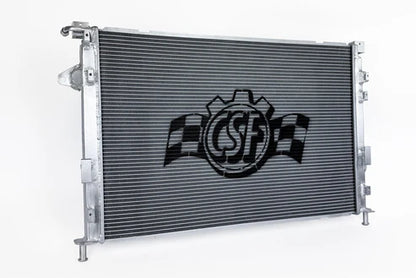

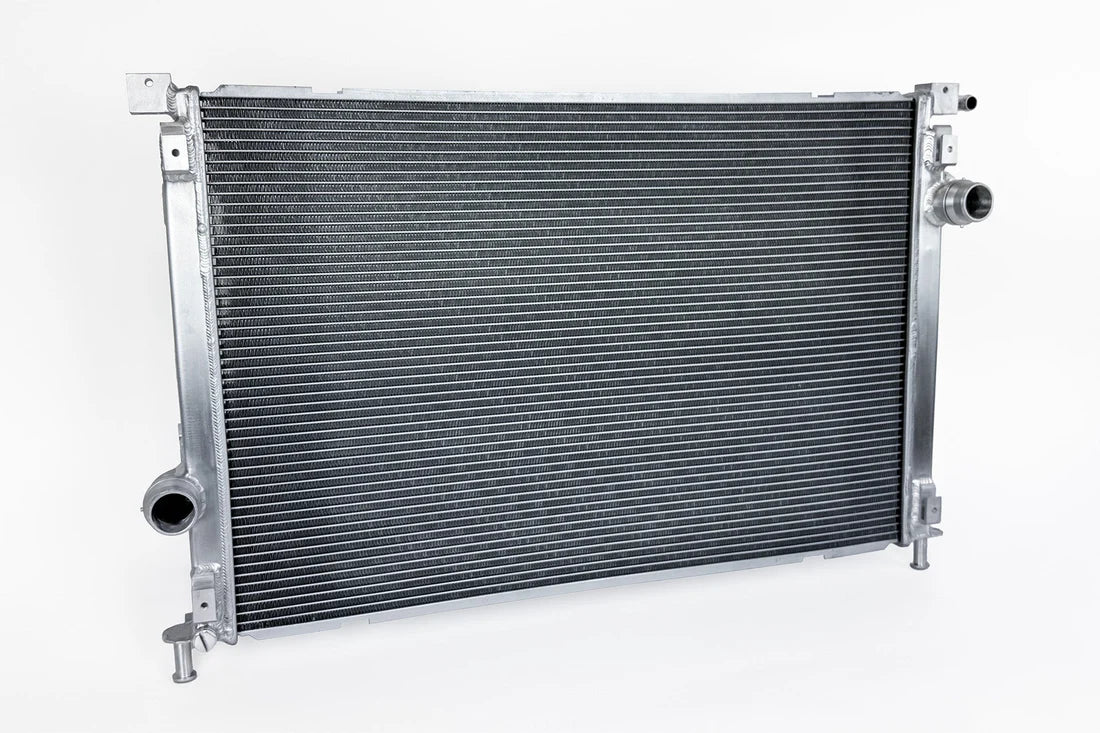

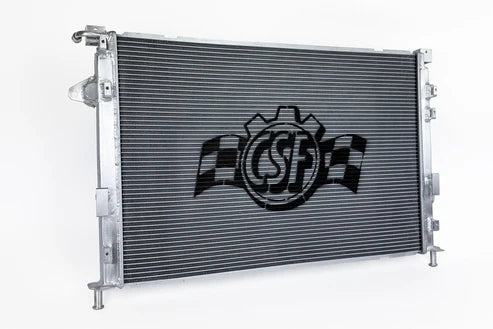

CSF High-Performance Radiator for 2013-2018 Ford Focus ST - 7238

Key Features & Specs:

• Part Number: CSF 7238
• Vehicle Platform: MK3 Ford Focus ST
• Core Design: 1-row, 31mm ultra-high-performance core
• Coolant Flow: Triple-pass configuration
• Tube Technology: CSF exclusive B-Tube technology
• Fin Design: 6.5mm tall, multi-louvered high-efficiency fins
• Construction: 100% all-aluminum TIG-welded construction
• Mounting: CNC-machined mounting pins and brackets
• Connections: OEM-style inlet and outlet locations
• Installation: Direct plug-and-play drop-in fit; no modifications required
• Testing: Individually leak and pressure tested
• Warranty: 2-year limited warranty
• Replaces OEM Numbers: CV6Z-8005-U, CV6Z-8005-T
• Core Thickness: 31mm, compared with approximately 27mm OEM
• Tank Material: Aluminum, compared with OEM plastic tanks

Fitment:

• 2013-2018 Ford Focus ST

Improve cooling capacity on your MK3 Ford Focus ST with the CSF 7238 High-Performance All-Aluminum Radiator. Designed as a true plug-and-play replacement, this 31mm single-row radiator uses a triple-pass coolant-flow configuration to route coolant across the core three times before exit for reduced outlet temperatures. CSF B-Tube technology, ultra-efficient multi-louvered fins, TIG-welded aluminum construction, and OEM-style inlet and outlet locations provide a durable cooling upgrade for street-driven and performance-focused Focus ST builds. CSF identifies this application as part number 7238.
