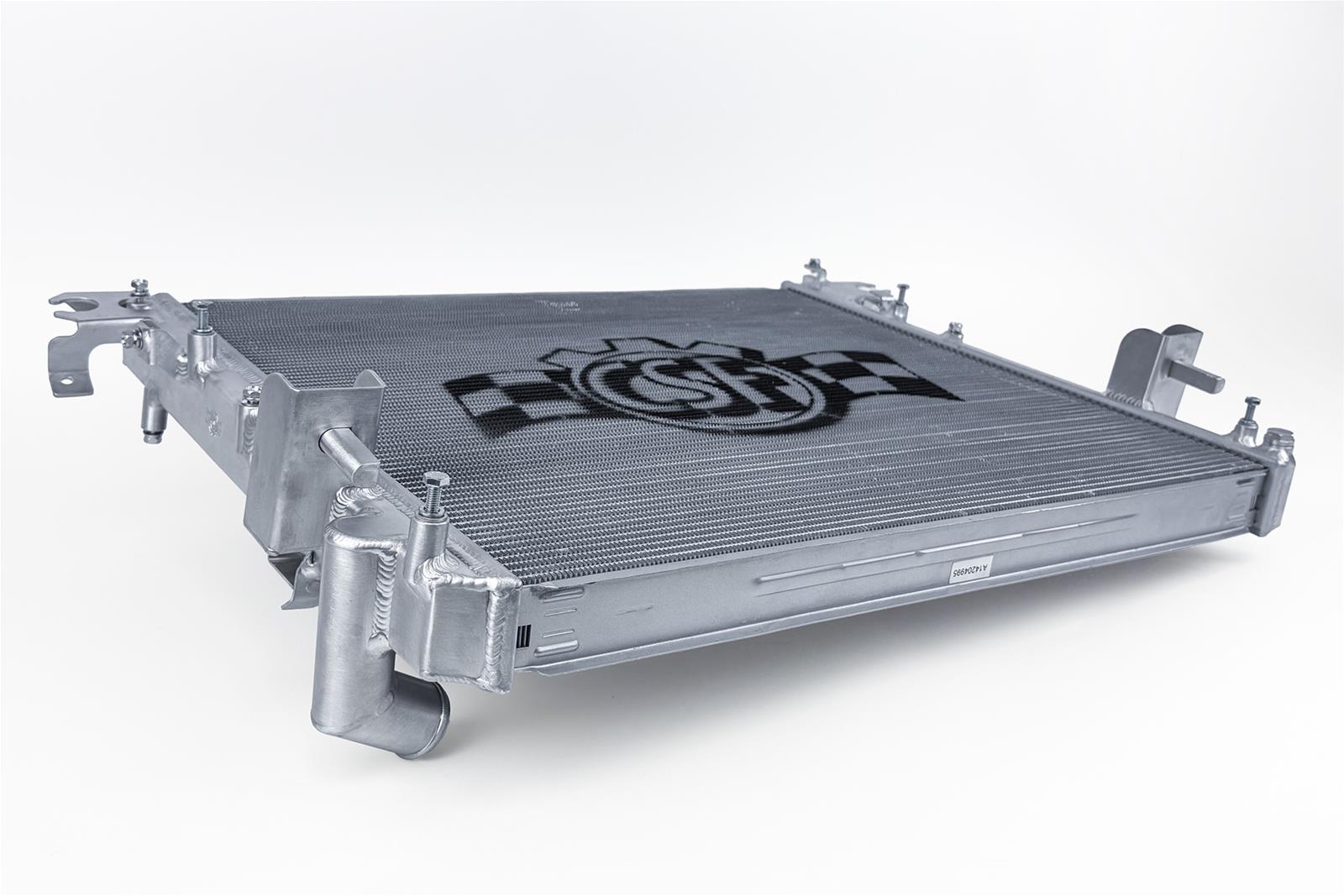

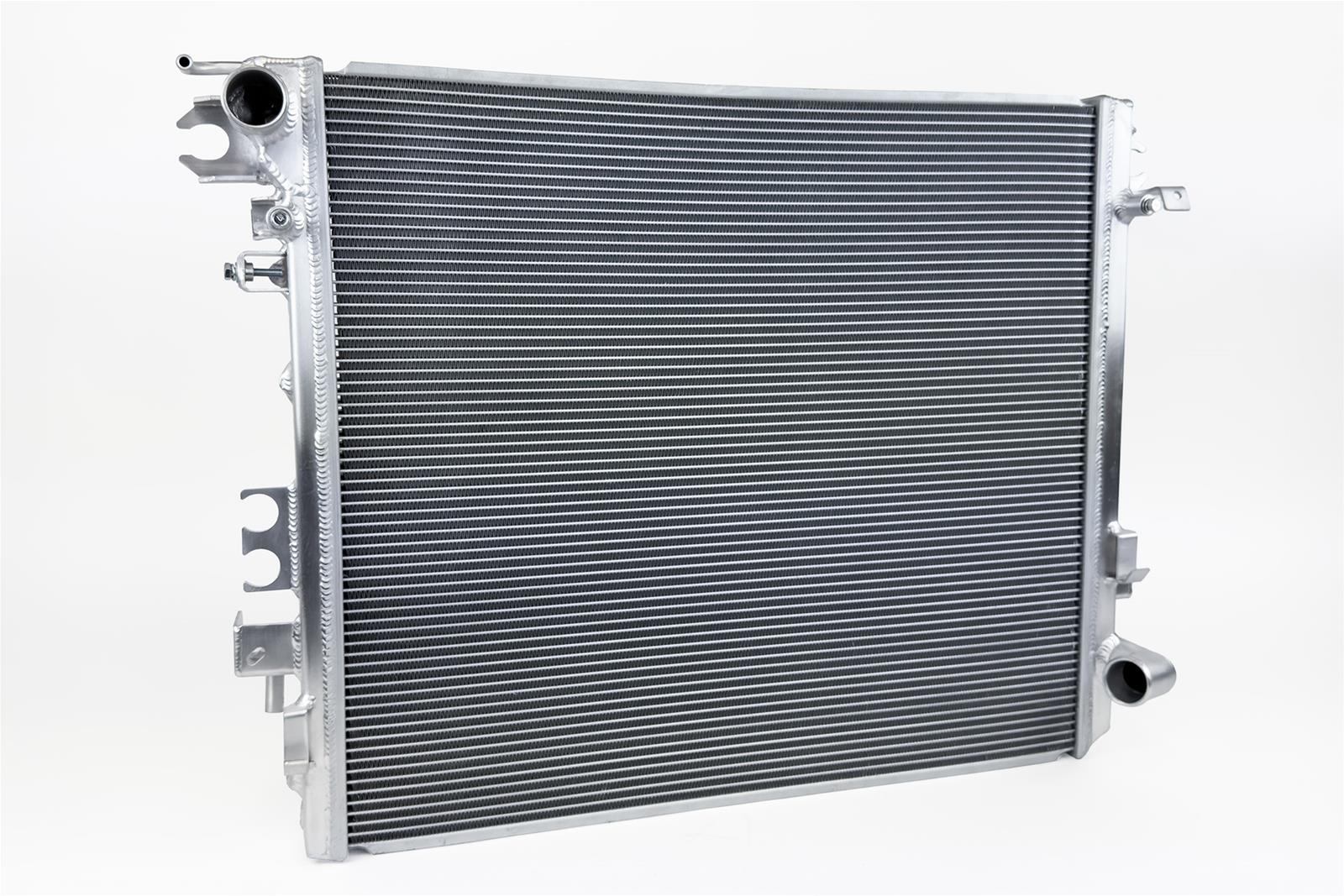

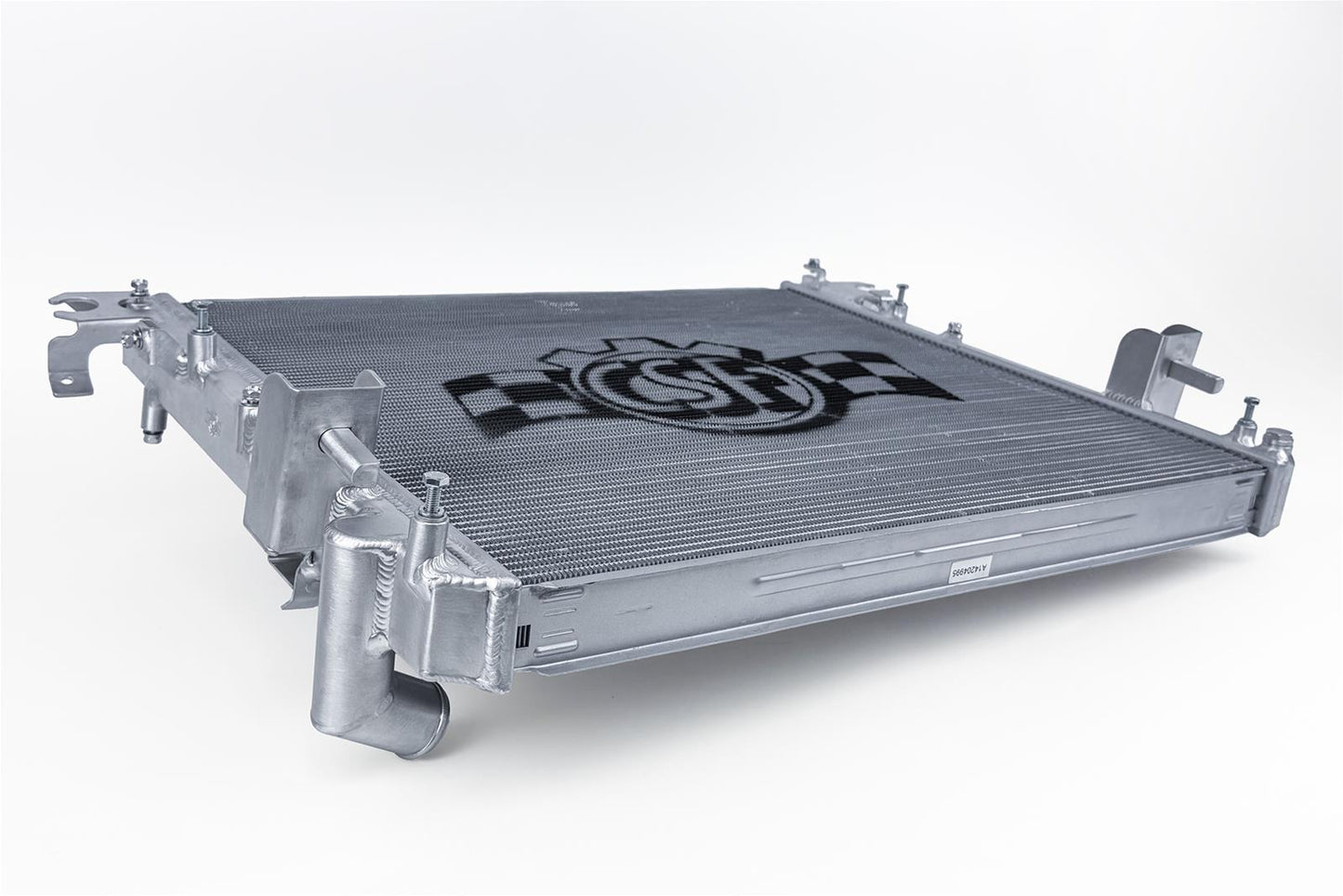

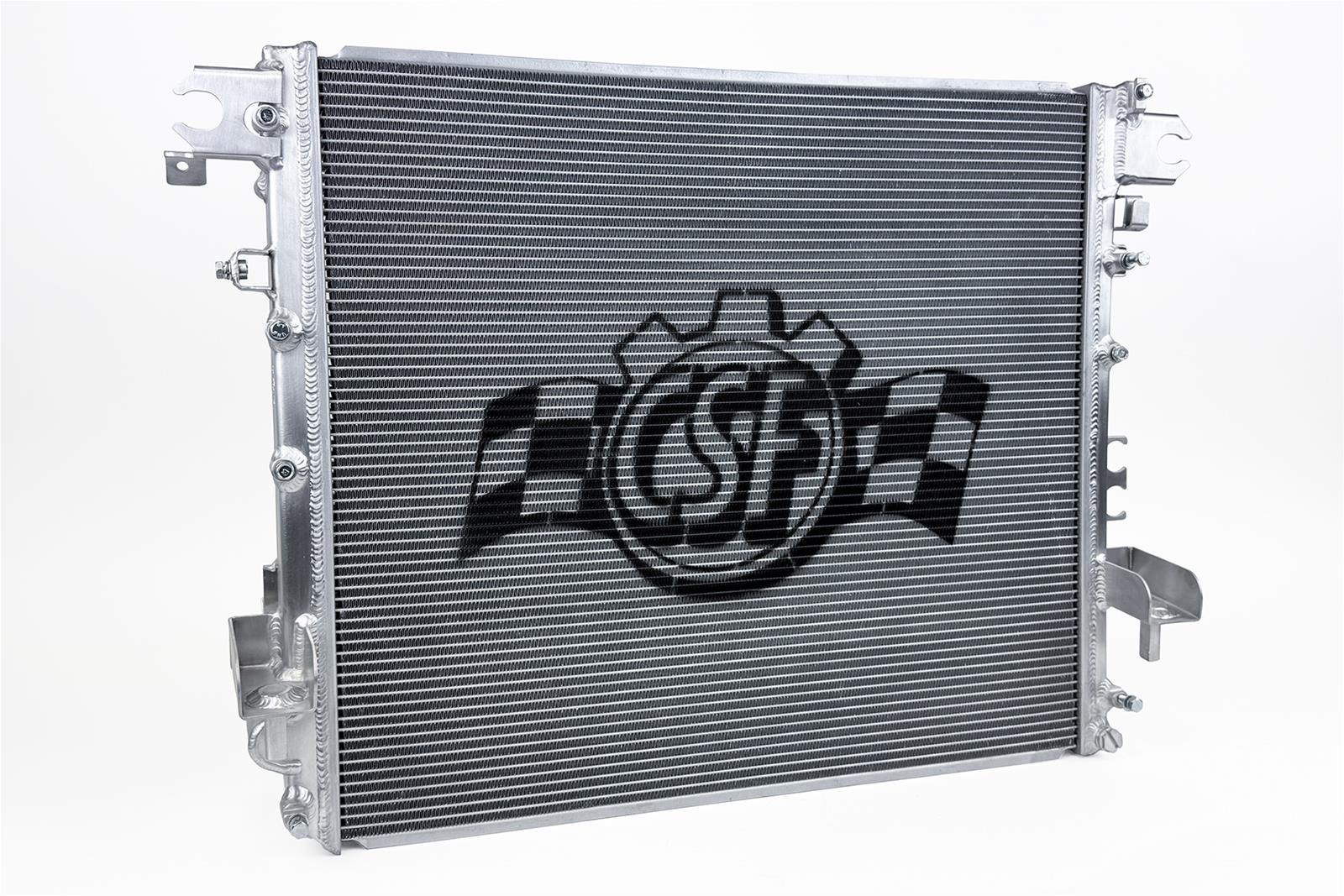

CSF Performance Radiator for 2018-2026 Jeep Wrangler & Gladiator - 7340

Key Features & Specs:

• Part Number: CSF 7340
• Product Type: High-performance all-aluminum radiator
• Core Design: 2-row, 42mm high-performance core
• Tube Technology: CSF B-Tube cooling tubes
• Fin Design: 5mm tall multi-louvered fins
• Construction: 100% TIG-welded aluminum
• Radiator Style: Crossflow
• Finish: Hand-brushed satin aluminum
• Core Width: 19.49 inches
• Core Height: 21.97 inches
• Core Thickness: 1.65 inches

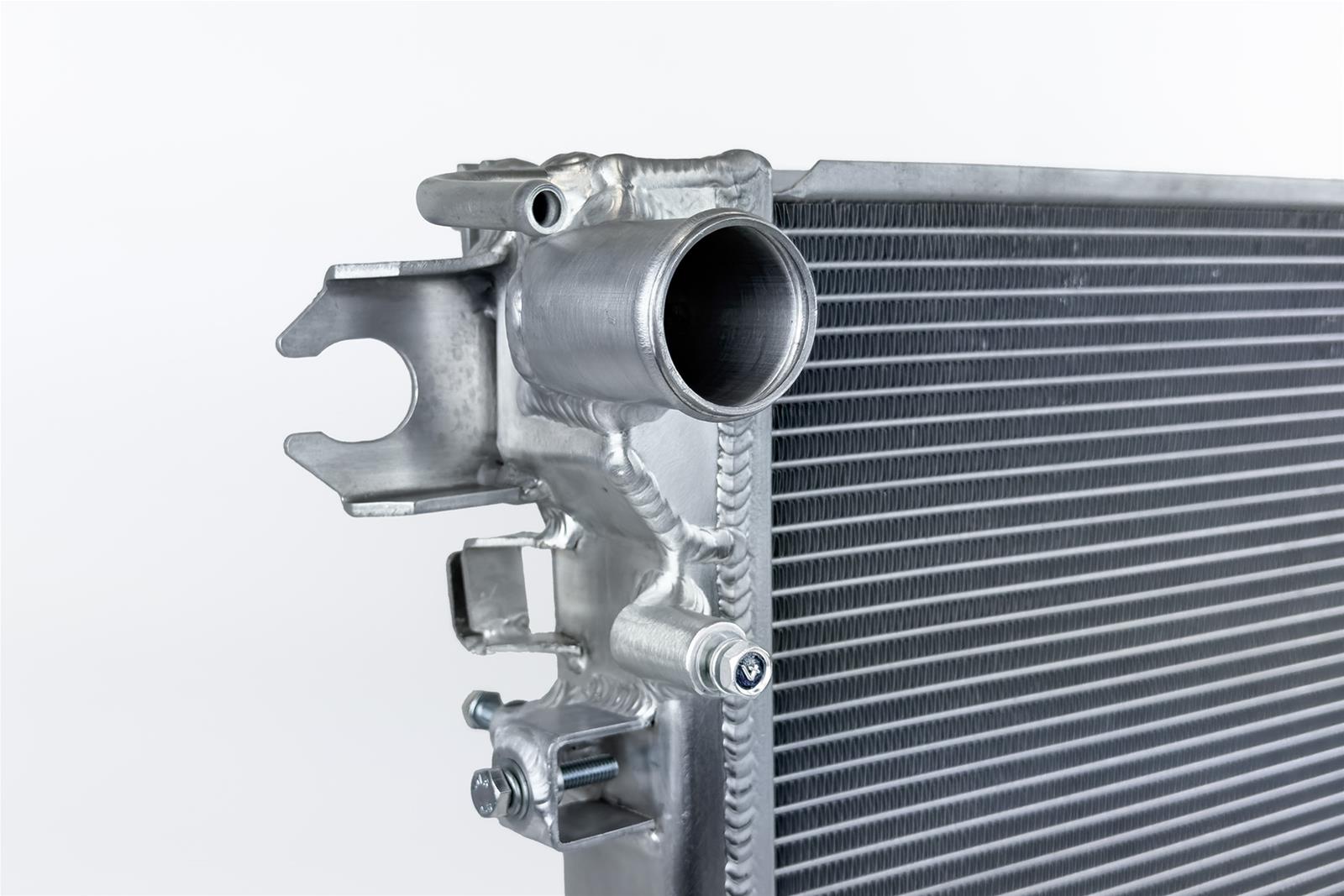

• Inlet Location: Upper driver side

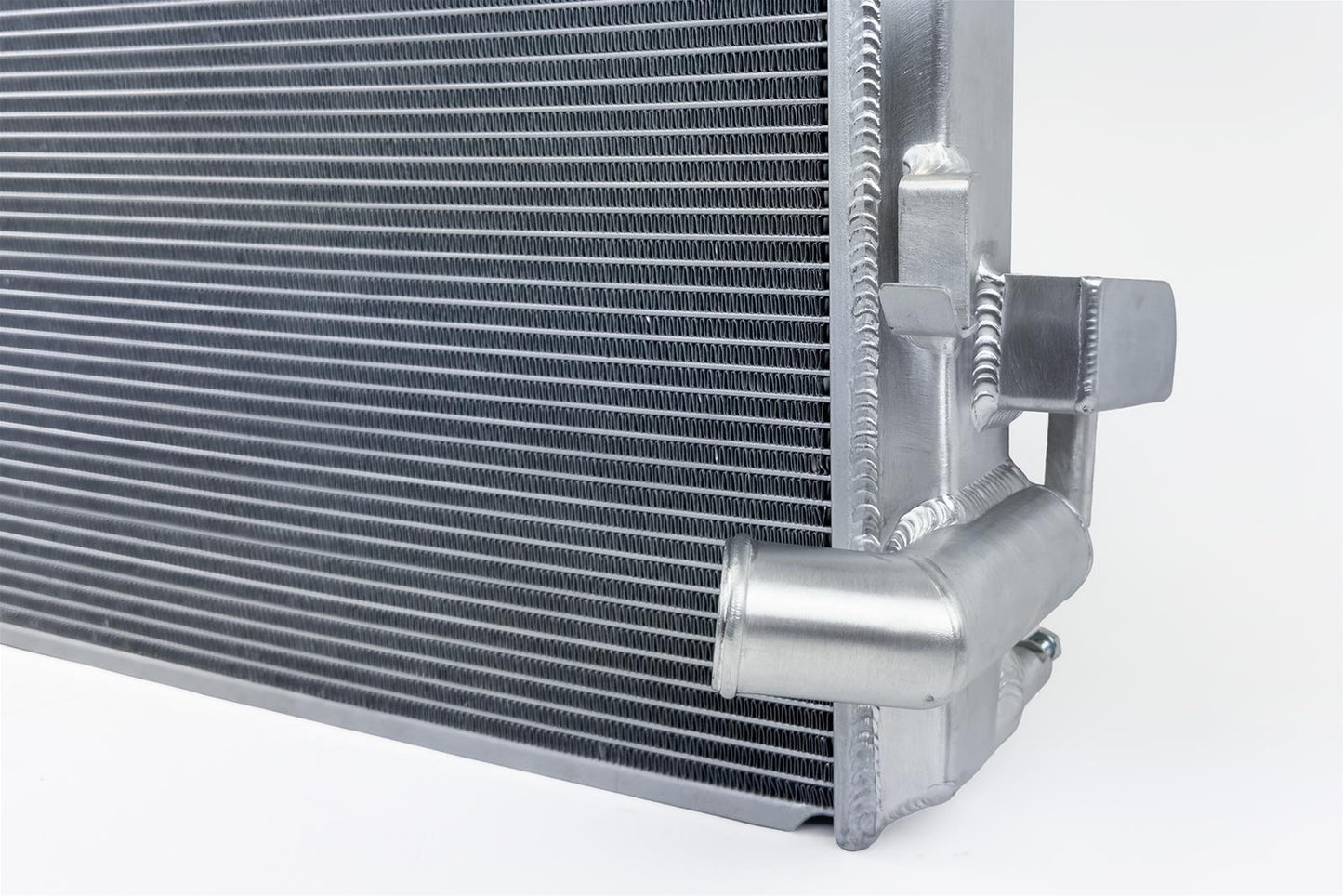

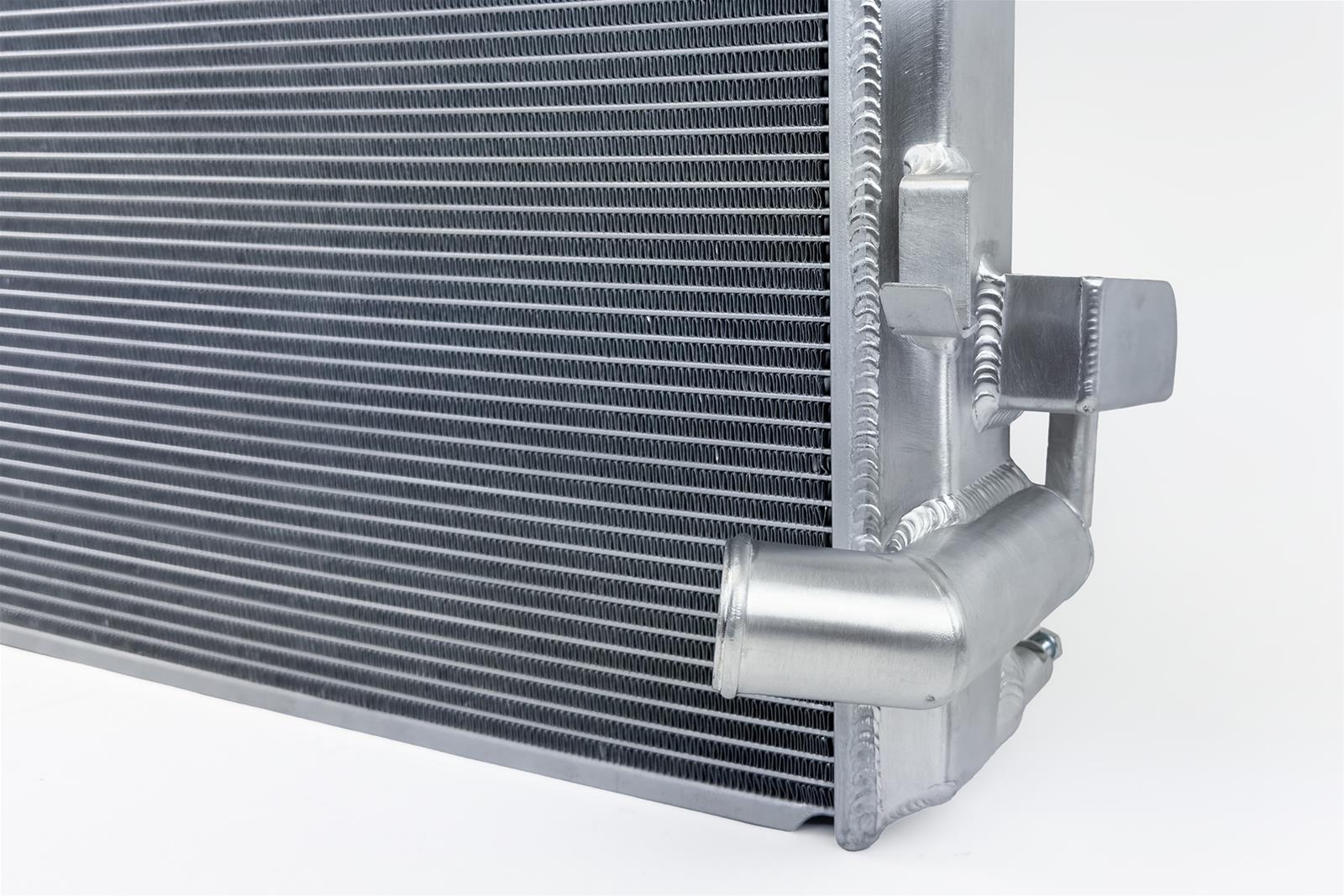

• Outlet Location: Lower passenger side
• Inlet / Outlet Size: 1.378 inches
• Connections: OEM-style inlet and outlet connections

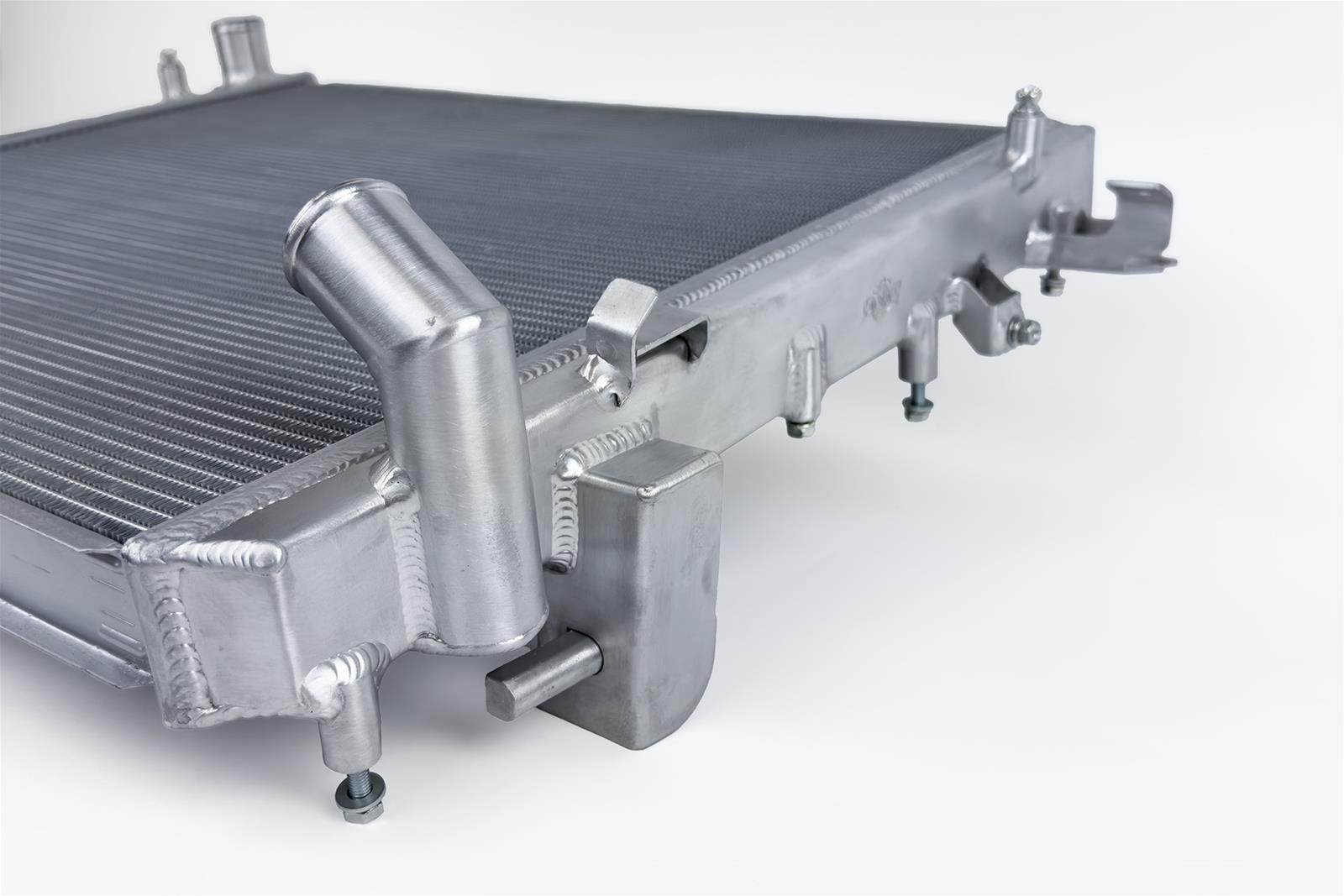

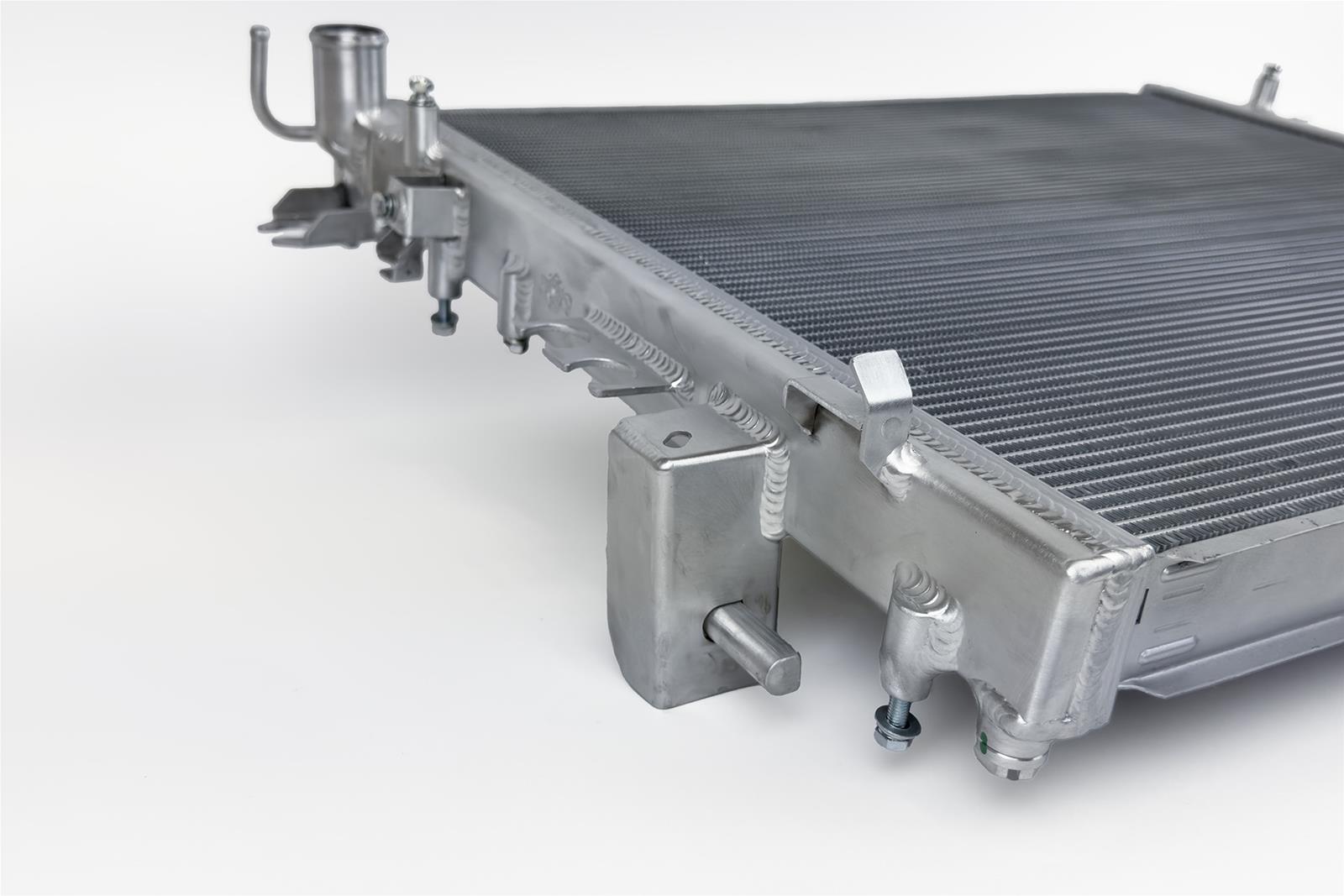

• Mounting: CNC-machined mounting brackets
• Transmission Cooler: No
• Fan Included: No
• Radiator Cap Included: No
• Installation: Direct-fit, plug-and-play installation with no modifications required
• Testing: Individually leak and pressure tested
• Warranty: 2-year limited warranty
• Replaces OEM Numbers: Jeep 68314786AA, 68314786AB, 68314786AC
• Quantity: Sold individually

Fitment:

• 2018-2026 Jeep Wrangler JL 3.6L V6
• 2020-2023 Jeep Wrangler JL 3.6L V6 Mild Hybrid
• 2018-2026 Jeep Wrangler JL 2.0L Turbo
• 2018-2020 Jeep Wrangler JL 2.0L Turbo Mild Hybrid
• 2021-2025 Jeep Wrangler JL 2.0L Turbo Plug-In Hybrid
• 2020-2023 Jeep Wrangler JL 3.0L Turbo Diesel V6
• 2020-2026 Jeep Gladiator JT 3.6L V6
• 2021-2023 Jeep Gladiator JT 3.0L Turbo Diesel V6

Upgrade cooling performance with the CSF 7340 High-Performance All-Aluminum Radiator for select Jeep Wrangler JL and Gladiator JT models. This direct-fit radiator features a 42mm two-row core with CSF B-Tube technology and 5mm multi-louvered fins to support efficient heat transfer in demanding on-road, off-road, towing, and performance environments. TIG-welded aluminum construction, CNC-machined mounting brackets, and OEM-style hose connections provide a durable replacement or cooling-system upgrade without modifications.
