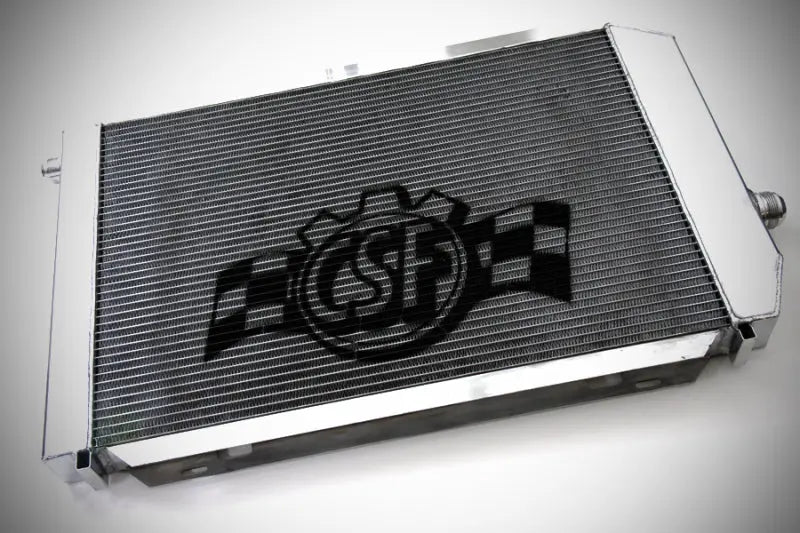

CSF R-1 Triple-Pass Universal Competition Radiator - 8023

Key Features & Specs:

• Part Number: CSF 8023
• Product Type: Universal competition radiator
• Core Design: 2-row, 52mm ultra-high-performance core
• Coolant Flow: Triple-pass configuration
• Tube Technology: CSF exclusive B-Tube technology
• Fin Design: 8mm tall multi-louvered fins
• Construction: 100% TIG-welded aluminum
• Radiator Style: Crossflow
• Core Finish: Black powder-coated core for thermal rejection
• Tank Finish: Smooth satin-polished finish
• Overall Dimensions: 29.3 in. L x 19.1 in. H x 2.55 in. W, excluding AN fittings
• Core Width: 24.44 inches
• Core Height: 16.81 inches
• Core Thickness: 2.06 inches
• Inlet Location: Upper passenger side
• Outlet Location: Lower driver side
• Inlet Connection: -16 AN
• Outlet Connection: -20 AN
• Mounting: CNC-machined mounting brackets
• Transmission Cooler: No
• Fan Included: No
• Radiator Cap Included: No
• Testing: Individually leak tested; developed with burst-pressure, thermal-cycle, vibration, and salt-spray testing
• Application Note: Universal mounting design supports multiple configurations, including V-mount setups
• Warranty: 2-year limited warranty

Fitment:

• Universal custom cooling applications
• V-mount turbocharged race and drift builds
• Custom street, track, and motorsports vehicles

Build a high-capacity cooling system with the CSF 8023 R-1 Triple-Pass Ultimate Motorsports Competition Radiator. Designed for universal and V-mount turbocharged applications, this all-aluminum radiator features a 52mm two-row core, CSF B-Tube technology, and 8mm multi-louvered fins for increased heat transfer. The triple-pass flow layout routes coolant across the core three times to help reduce outlet temperatures, while -AN connections and flexible mounting configurations support custom fabrication and motorsports builds.
