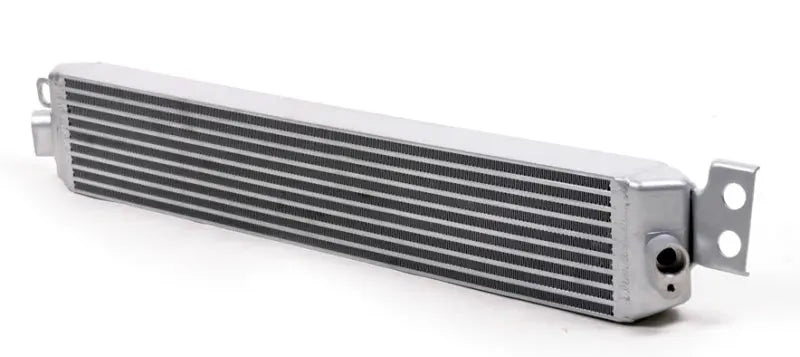

CSF Race-Spec Oil Cooler for 2008-2013 BMW E9X M3 - 8025

Key Features & Specs:

• Part Number: CSF 8025
• Product Type: Race-spec engine oil cooler
• Application: BMW E9X M3 S65 V8
• Core Technology: CSF A/C condenser-style high-pressure microtube core
• Core Width: 26mm
• Flow Design: Dual-pass
• Cooling Tubes: 10 cooling tubes
• OEM Comparison: Replaces OEM single-pass six-tube cooler design
• Fin Design: High-density multi-louvered fins
• Cooling Performance: CSF states laboratory testing showed approximately 30% greater efficiency than the OEM cooler
• Construction: Aluminum plate-style cooler
• Finish: Silver powder-coated
• Connections: Stock-size inlet and outlet connections
• Installation: Direct drop-in fit using compatible OEM oil lines, brackets, shrouds, and ducting
• Fan Included: No
• Quantity: Sold individually
• Replaces OEM Number: BMW 17212284075

Fitment:

• 2008-2013 BMW M3 E90/E92/E93 4.0L V8

Upgrade engine oil cooling in your BMW E9X M3 with the CSF 8025 Race-Spec Oil Cooler. This direct-fit performance upgrade replaces the factory single-pass, six-tube design with a dual-pass 26mm multi-channel microtube core featuring 10 cooling tubes. Built using CSF condenser-core technology with high-density multi-louvered fins, it is engineered to improve heat rejection for demanding street, track, and high-performance S65 V8 applications.
