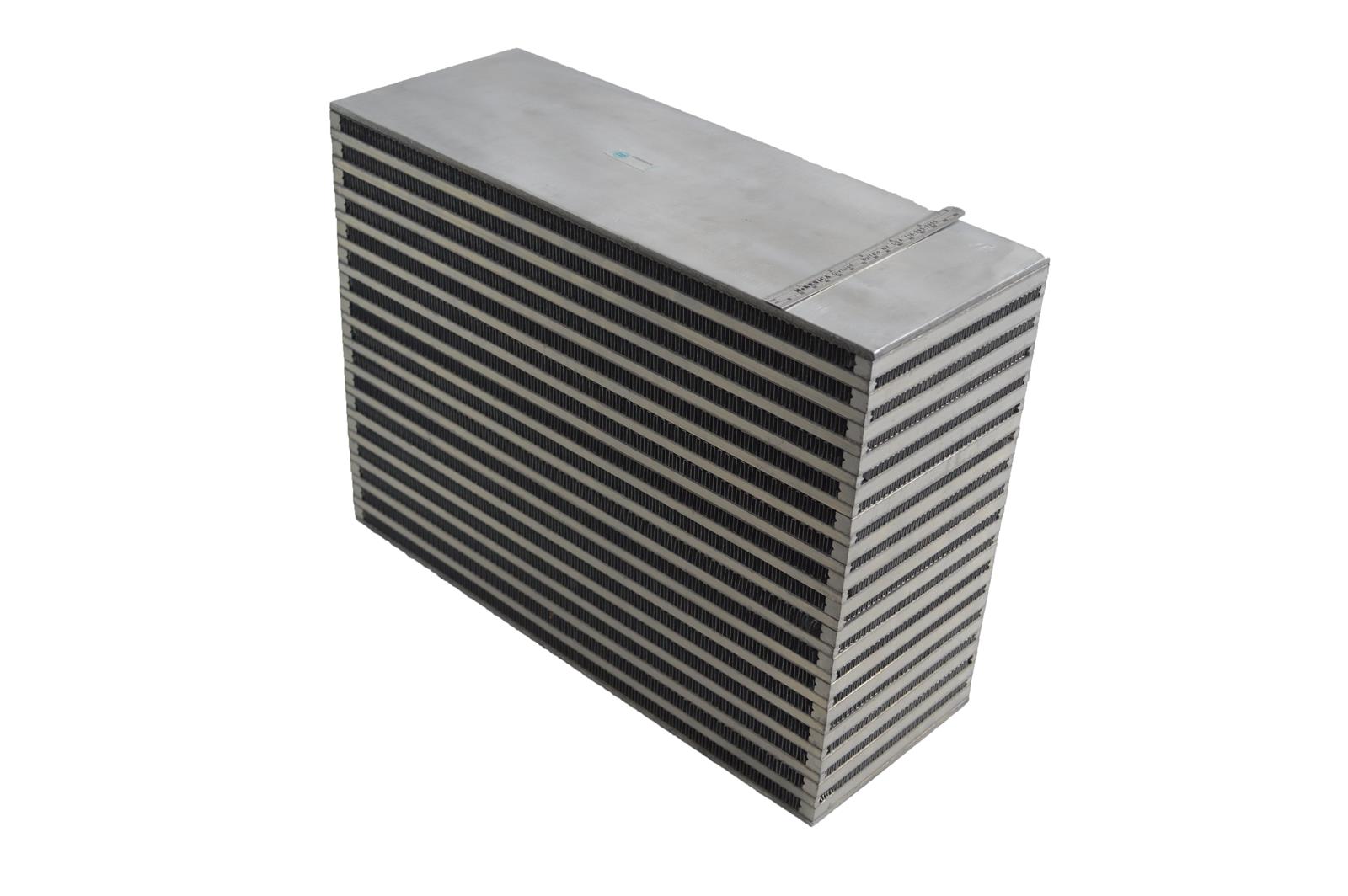

CSF MAGNUM 18x12x6 Bar-and-Plate Intercooler Core - 8040

Key Features & Specs:

• Part Number: CSF 8040
• Product Type: Universal MAGNUM air-to-air intercooler core
• Core Design: Heavy-duty bar-and-plate construction
• Flow Direction: Cross-flow
• Horsepower Rating: Up to 1,300 HP
• Pressure Testing: Individually pressure tested to 120 psi
• Nominal Dimensions: 18 x 12 x 6 inches / 455 x 300 x 150mm
• Core Width: 17.91 inches
• Core Height: 11.81 inches
• Core Depth: 5.91 inches

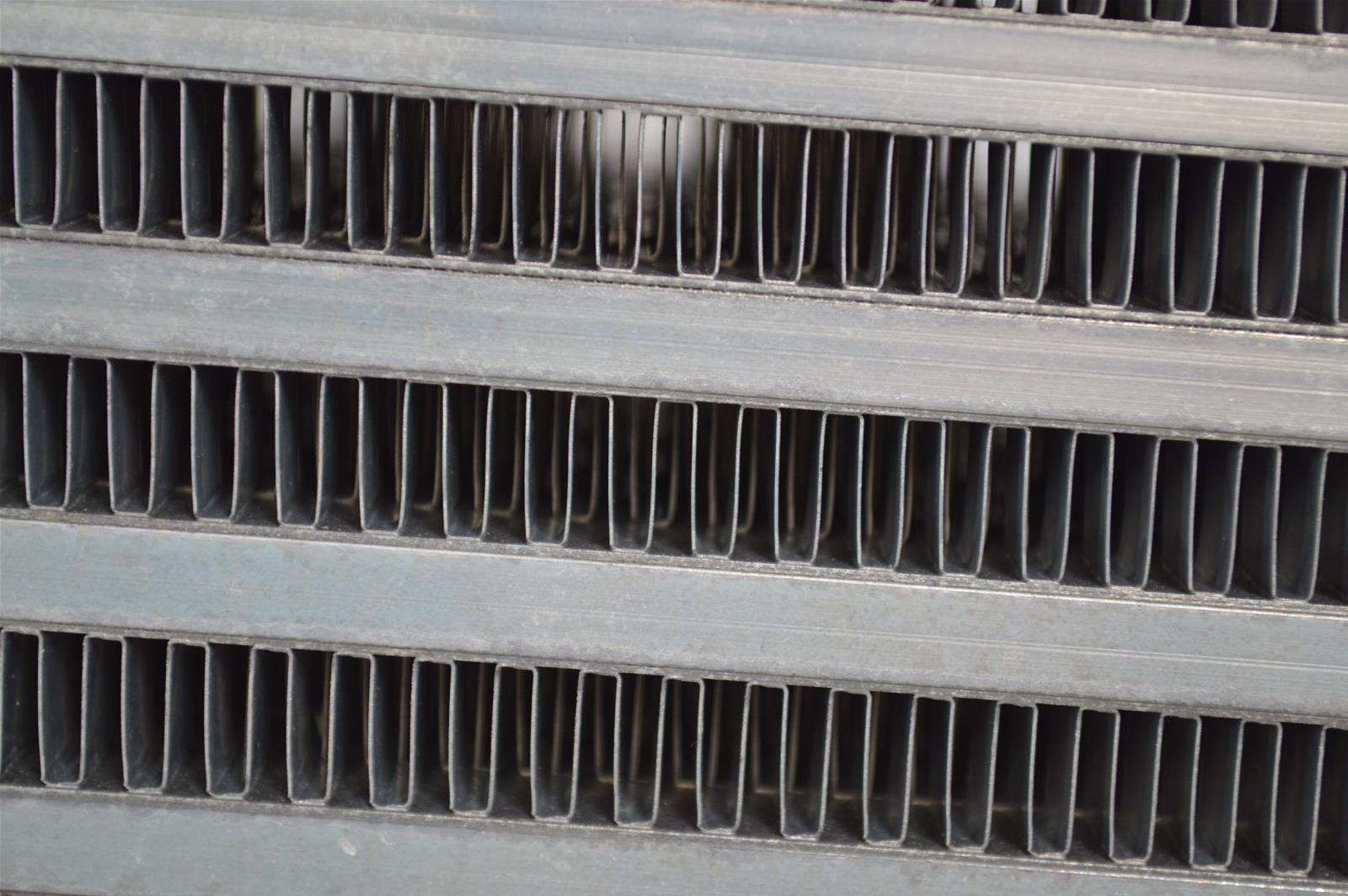

• Fin Design: Multi-louvered, high-precision staggered fins on both ambient and charge-air sides
• Construction Process: Hand-built with jigs and fixtures for a straight, fabrication-friendly core
• Brazing Process: Batch brazed in digital vacuum-brazing ovens
• Fabrication Benefit: Clean weld-ready exterior surface for custom end tanks and piping
• Quality Control: Individually pressure tested and protected for shipping
• Quantity: Sold individually

Fitment:

• Universal: Designed for custom turbocharged, supercharged, drag racing, and high-horsepower fabrication projects
• Installation Note: Requires custom end tanks, mounting brackets, charge piping, couplers, and fabrication. Verify available space and airflow requirements before ordering.
