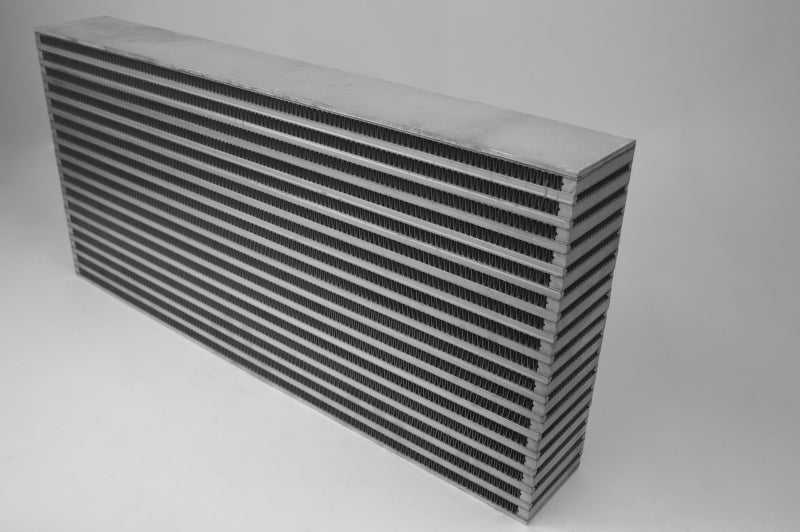

CSF Bar-and-Plate Intercooler Core 25x12x3.5 Crossflow - 8045

Key Features & Specs:

• Part Number: CSF 8045
• UPC: 710353080450
• Product Type: Universal air-to-air intercooler core
• Flow Direction: Crossflow
• Core Construction: Heavy-duty bar-and-plate design
• Nominal Dimensions: 25 in. W x 12 in. H x 3.5 in. D
• Actual Core Dimensions: 25.00 in. W x 11.81 in. H x 3.54 in. D
• Metric Dimensions: 635mm x 300mm x 90mm
• Horsepower Rating: Up to 1,000 HP
• Pressure Testing: Individually tested to 120 psi
• Fin Design: High-precision staggered multi-louvered fins on ambient and charge-air sides
• Manufacturing: Hand-built using jigs and fixtures for straight, weld-ready alignment
• Brazing Process: Digitally controlled vacuum-brazed construction
• Quality Control: Individually inspected and pressure tested
• Quantity: Sold individually

Fitment:

• Universal: Custom turbocharged, supercharged, and fabricated charge-air cooling systems
• Installation Note: Core only. Custom end tanks, piping, mounting hardware, and welding are required for installation.

The CSF 8045 High-Performance Bar-and-Plate Intercooler Core is built for custom turbocharged and supercharged applications requiring efficient charge-air cooling in a compact 25 x 12 x 3.5-inch crossflow layout. Rated for up to 1,000 horsepower and individually pressure tested to 120 psi, this heavy-duty core provides a strong foundation for high-boost fabrication projects. Precision staggered multi-louvered fins and vacuum-brazed construction support efficient heat transfer, while hand-built alignment creates a straight, weld-ready core.
