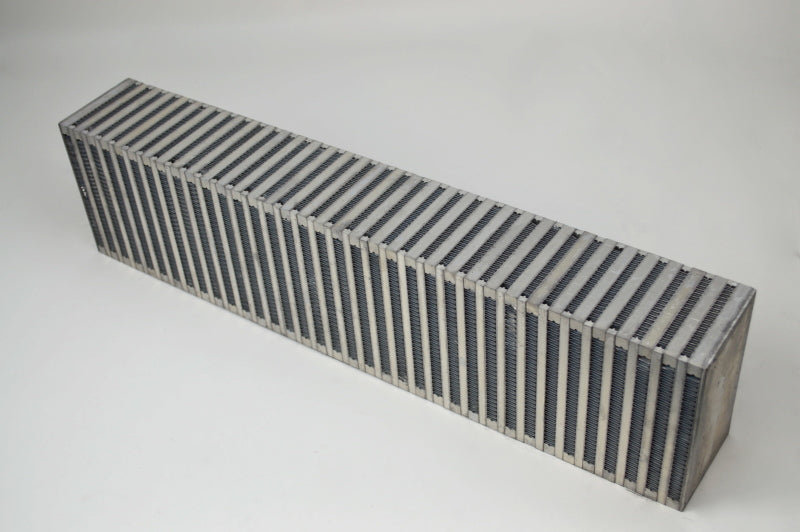

CSF Vertical-Flow Bar-and-Plate Intercooler Core 24x6x3.5 - 8053

Key Features & Specs:

• Part Number: CSF 8053
• Product Type: Universal air-to-air intercooler core
• Flow Direction: Vertical flow
• Core Construction: Heavy-duty bar-and-plate design
• Nominal Dimensions: 24 in. W x 6 in. H x 3.5 in. D
• Actual Core Dimensions: 24.02 in. W x 5.91 in. H x 3.54 in. D
• Metric Dimensions: 610mm x 150mm x 90mm
• Horsepower Rating: Up to 800 HP
• Pressure Testing: Individually tested to 120 psi
• Fin Design: High-precision staggered multi-louvered fins on ambient and charge-air sides
• Manufacturing: Hand-built using jigs and fixtures for straight, weld-ready alignment
• Brazing Process: Digitally controlled vacuum-brazed construction
• Quality Control: Individually inspected and pressure tested
• Quantity: Sold individually

Fitment:

• Universal: Custom turbocharged, supercharged, and fabricated charge-air cooling systems
• Installation Note: Core only. Custom end tanks, piping, mounting hardware, and welding are required for installation.

The CSF 8053 High-Performance Bar-and-Plate Intercooler Core is a compact vertical-flow core for custom turbocharged and supercharged applications. Measuring approximately 24 x 6 x 3.5 inches, this heavy-duty air-to-air core is rated for builds producing up to 800 horsepower. Precision staggered multi-louvered fins, vacuum-brazed construction, and individual 120 psi pressure testing provide a durable, weld-ready foundation for high-boost charge-air cooling systems.
