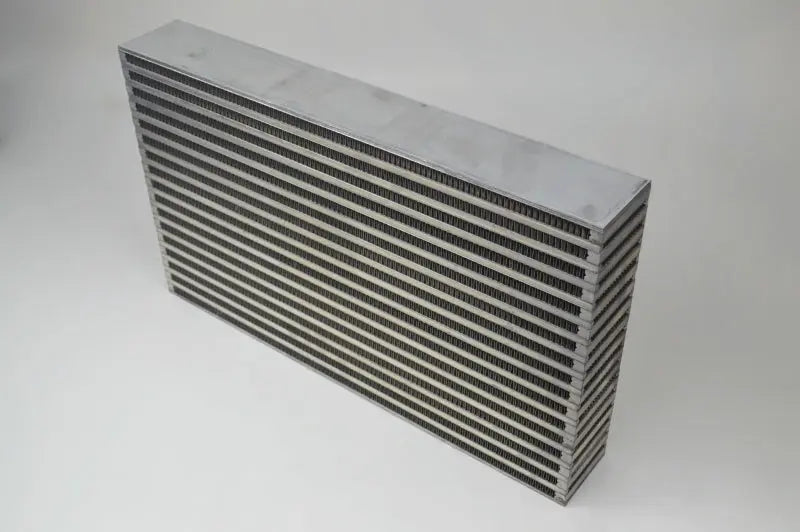

CSF Universal 20x12x3 Bar-and-Plate Intercooler Core - 8056

Key Features & Specs:

• Part Number: CSF 8056
• Product Type: Universal air-to-air intercooler core
• Core Design: Heavy-duty bar-and-plate construction
• Flow Direction: Cross-flow
• Horsepower Rating: Up to 700 HP
• Pressure Testing: Individually pressure tested to 120 psi
• Core Width: 19.89 inches
• Core Height: 11.81 inches
• Core Depth: 2.95 inches
• Nominal Dimensions: 20 x 12 x 3 inches / 505 x 300 x 75mm
• Fin Design: Multi-louvered, high-precision staggered fins on ambient and charge-air sides
• Construction Process: Hand-built using jigs and fixtures for a straight, weld-ready core
• Brazing Process: Batch brazed in digital vacuum-brazing ovens
• Fabrication Benefit: Clean surface preparation for welding custom end tanks and piping
• Quality Control: Individually inspected and protected for transport
• Quantity: Sold individually

Fitment:

• Universal: Intended for custom turbocharged and supercharged fabrication projects
• Installation Note: Requires custom end tanks, mounting, piping, couplers, and fabrication. Confirm available space, airflow requirements, and charge-pipe sizing before ordering.

Build a dependable custom charge-air system with the CSF 8056 Universal Bar-and-Plate Intercooler Core. Measuring approximately 20 x 12 x 3 inches, this cross-flow air-to-air core is built for fabrication projects requiring strong boost durability, efficient airflow, and a clean welding surface. Each core is hand-built, vacuum-brazed, individually pressure tested to 120 psi, and rated by CSF for applications producing up to 700 horsepower.
