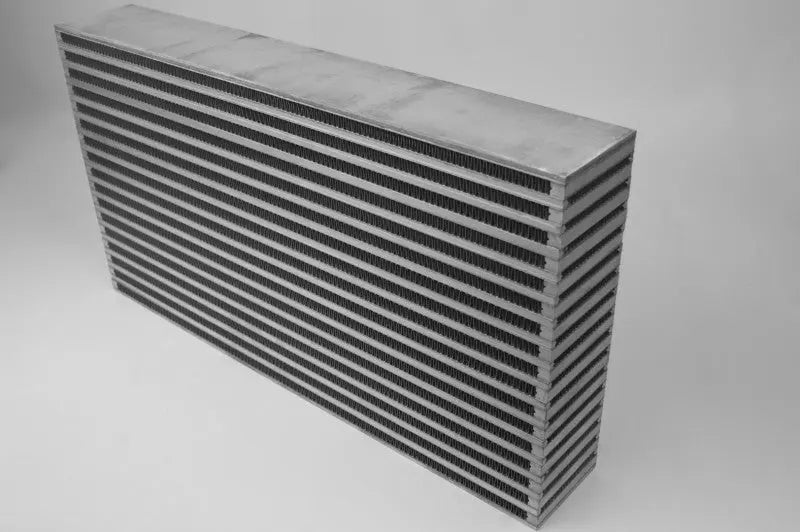

CSF Bar-and-Plate Intercooler Core 20x12x4 Crossflow - 8063

Key Features & Specs:

• Part Number: CSF 8063
• Product Type: Universal air-to-air intercooler core
• Flow Direction: Crossflow
• Core Construction: Heavy-duty bar-and-plate design
• Core Dimensions: 20.08 in. W x 11.81 in. H x 3.94 in. D
• Nominal Dimensions: 20 in. x 12 in. x 4 in.
• Metric Dimensions: 510mm x 300mm x 100mm
• Horsepower Rating: Up to 850 HP
• Pressure Testing: Individually tested to 120 psi
• Fin Design: Multi-louvered, high-precision staggered fins on ambient and charge-air sides
• Manufacturing: Hand-built with jigs and fixtures for a straight, weld-ready core
• Brazing: Digitally controlled vacuum-brazed construction
• Quality Control: Individually inspected and pressure tested
• Quantity: Sold individually

Fitment:

• Universal: Custom turbocharged, supercharged, and fabricated charge-air cooling systems
• Installation Note: Core only. Custom end tanks, piping, mounting hardware, and welding are required for installation.

The CSF 8063 High-Performance Bar-and-Plate Intercooler Core is a compact crossflow core built for custom turbocharged and supercharged applications. Measuring approximately 20 x 12 x 4 inches, it combines a heavy-duty bar-and-plate design, precision staggered multi-louvered fins, and vacuum-brazed construction to support efficient charge-air cooling. Hand-built for straight, weld-ready fitment and individually pressure tested to 120 psi, this core is rated for builds producing up to 850 horsepower.
