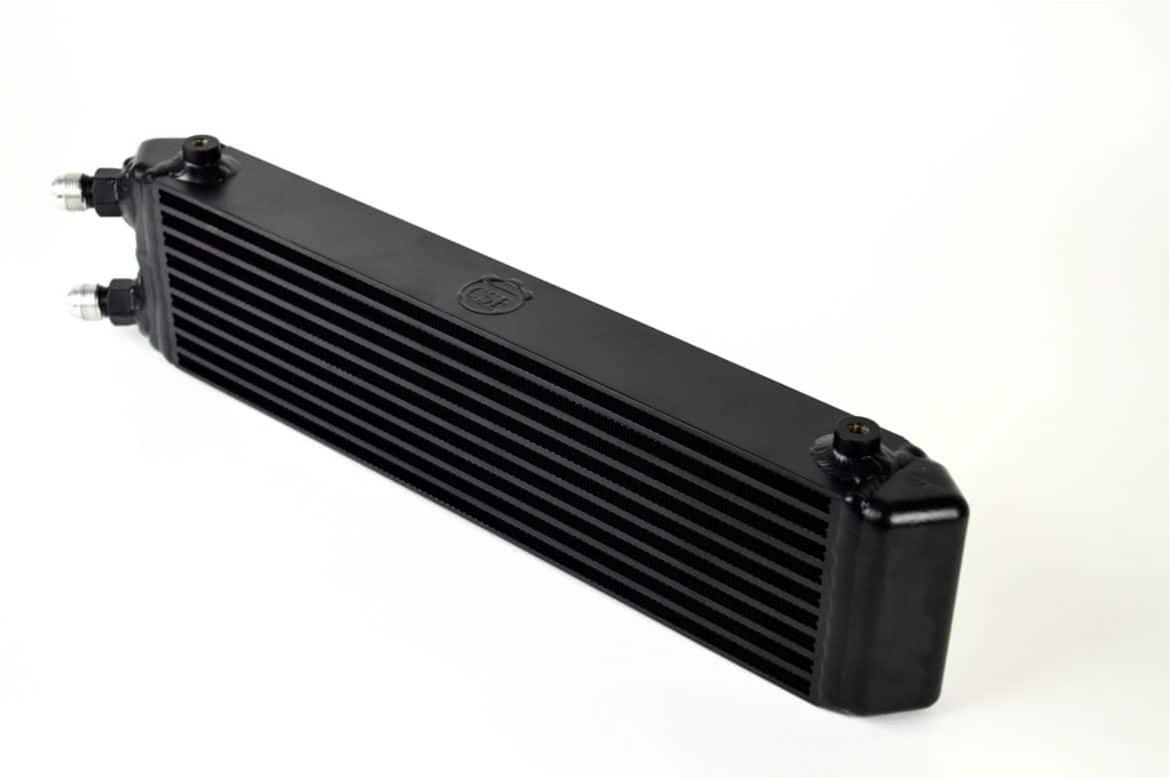

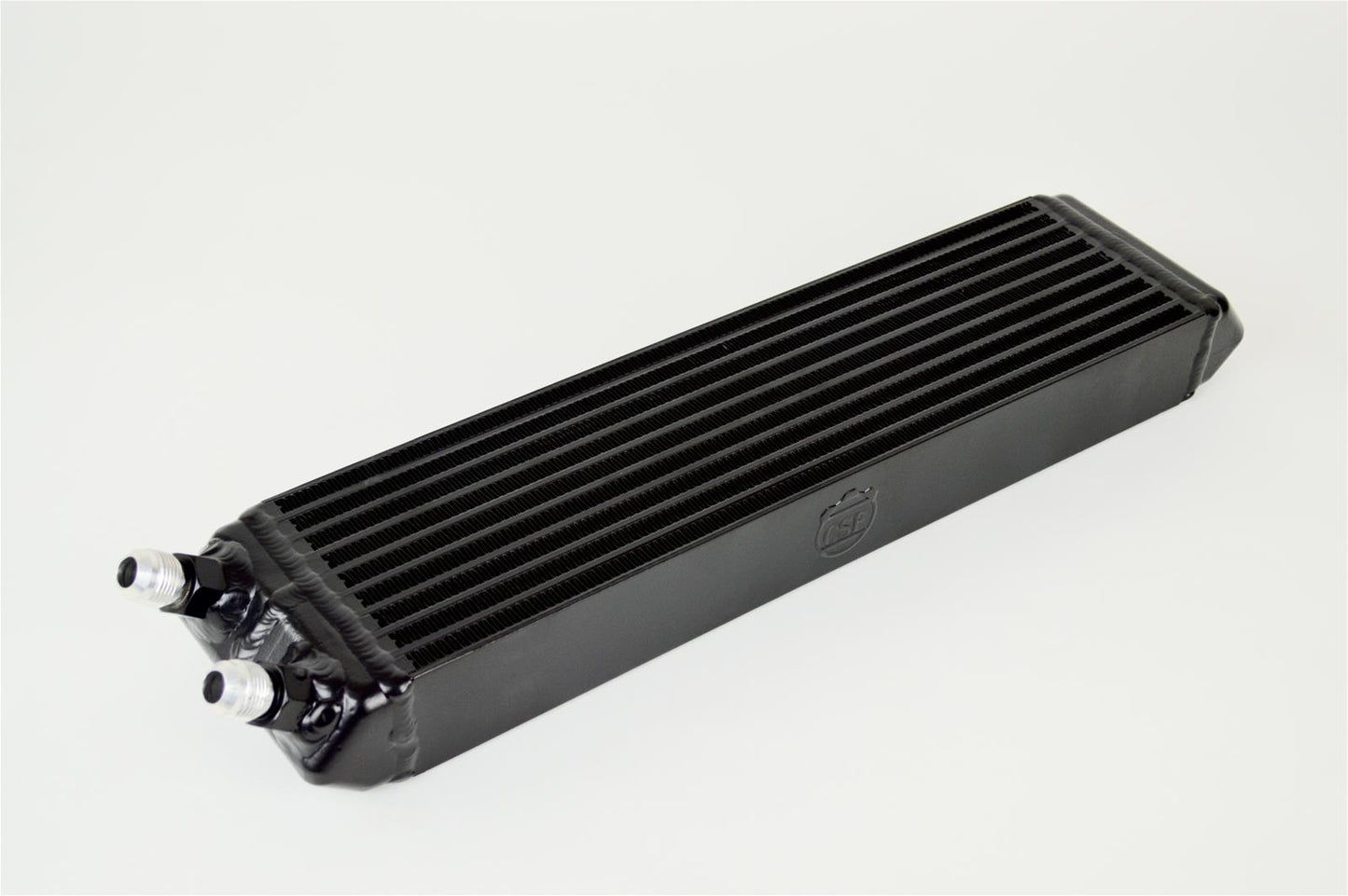

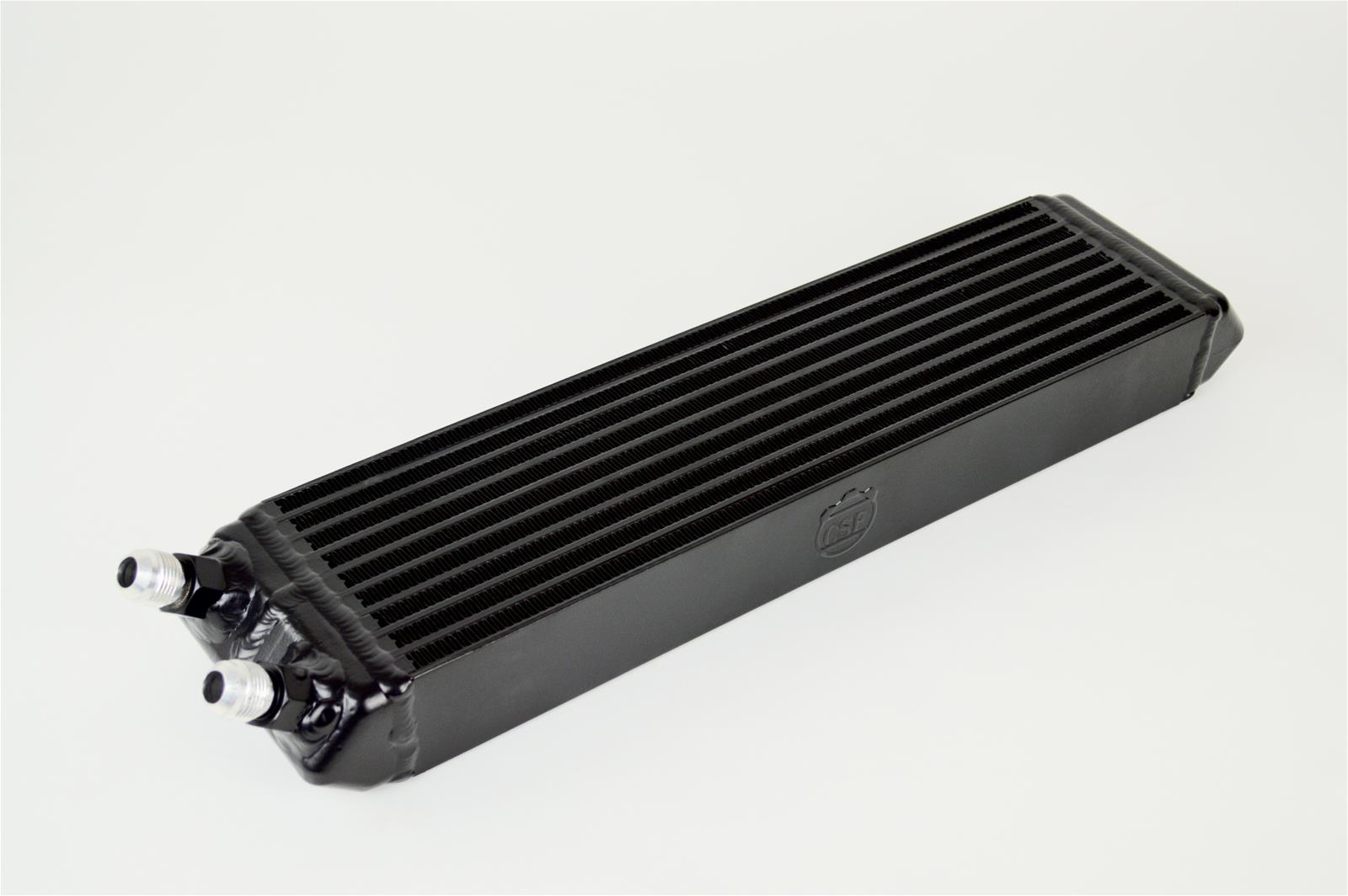

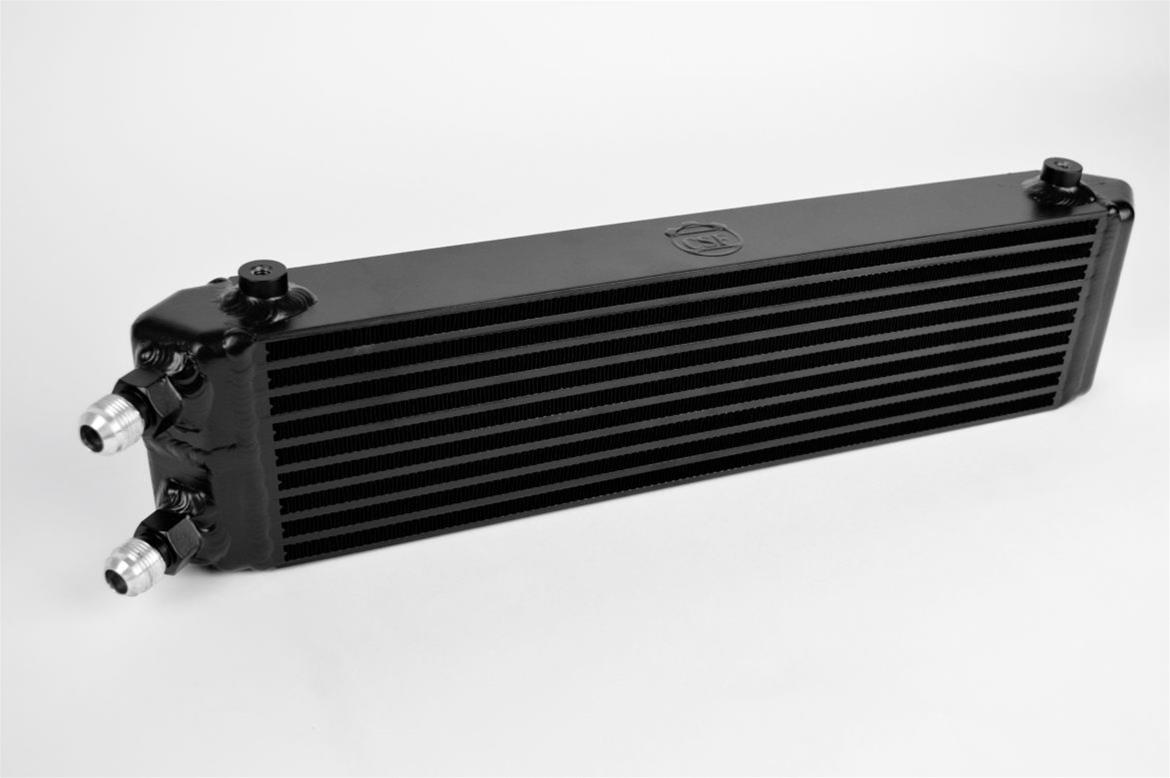

CSF Universal Dual-Pass Oil Cooler w/ -10 AN Fittings - 8066

Key Features & Specs:

• Part Number: CSF 8066
• Product Type: Universal dual-pass fluid and oil cooler
• Core Design: Turbulated 8-row bar-and-plate core
• Flow Design: Dual-pass
• Construction: Heavy-duty aluminum plate-style cooler

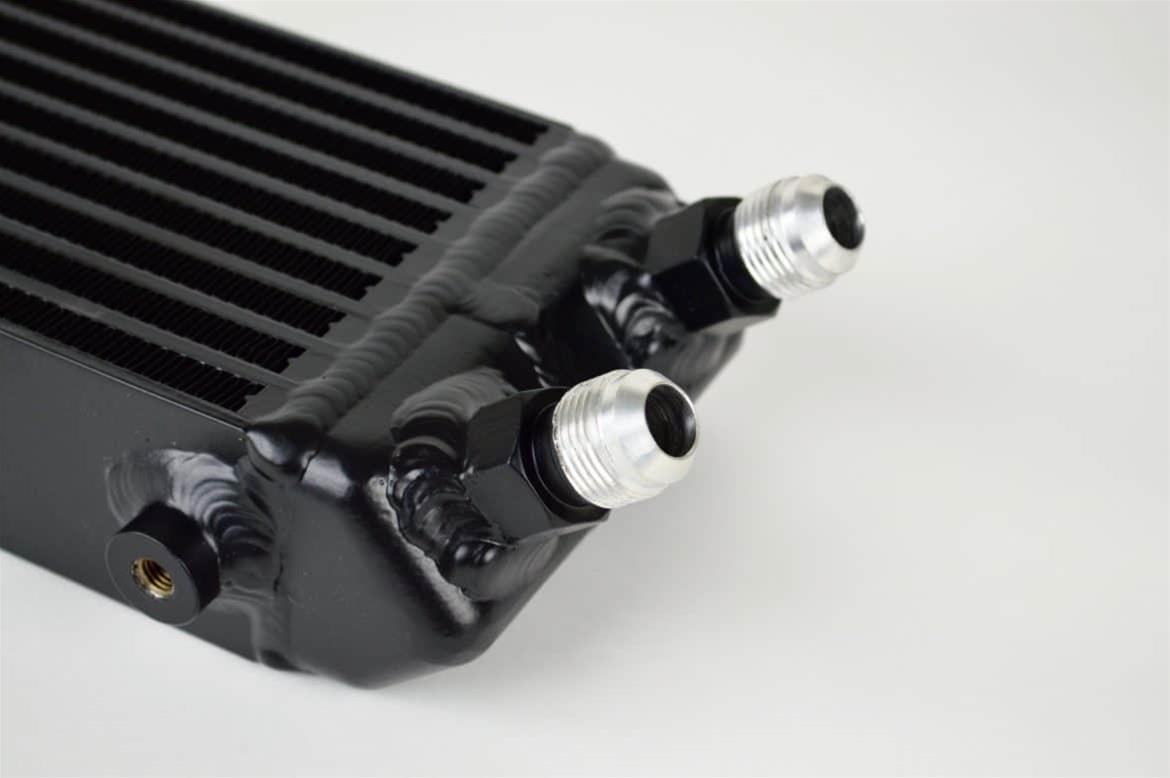

• Connections: -10 AN male inlet and outlet fittings
• Mounting: Two M8 mounting bosses with steel helicoils
• Configuration: Reversible design allows inlet and outlet placement on either side
• Fin Design: High-density multi-louvered fin pitch
• Finish: Semi-gloss matte black thermal-rejecting powder coat
• Overall Dimensions: 22.00 in. L x 5.00 in. H x 2.25 in. W
• Core Dimensions: 17.36 in. W x 4.72 in. H x 2.17 in. D
• Fluid Capacity: 0.68L / 0.72 qt.
• Fan Included: No
• Quantity: Sold individually

Fitment:

• Universal: Custom engine oil, transmission fluid, differential fluid, or power-steering cooling systems
• Installation Note: Custom mounting brackets, -10 AN hoses, fittings, and vehicle-specific plumbing are required.

The CSF 8066 Universal Dual-Pass Oil Cooler is a durable bar-and-plate fluid cooler engineered for custom engine oil, transmission, differential, or power-steering cooling systems. Its turbulated eight-row core, high-density multi-louvered fins, and thermal-rejecting black powder-coated finish support effective heat dissipation in demanding street, track, towing, and off-road applications. A reversible layout allows the -10 AN inlet and outlet fittings to be positioned on either side for flexible custom plumbing.
