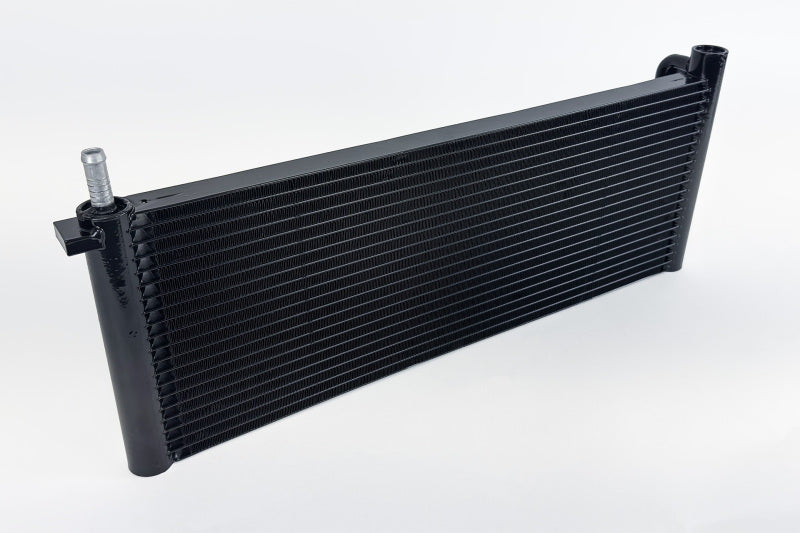

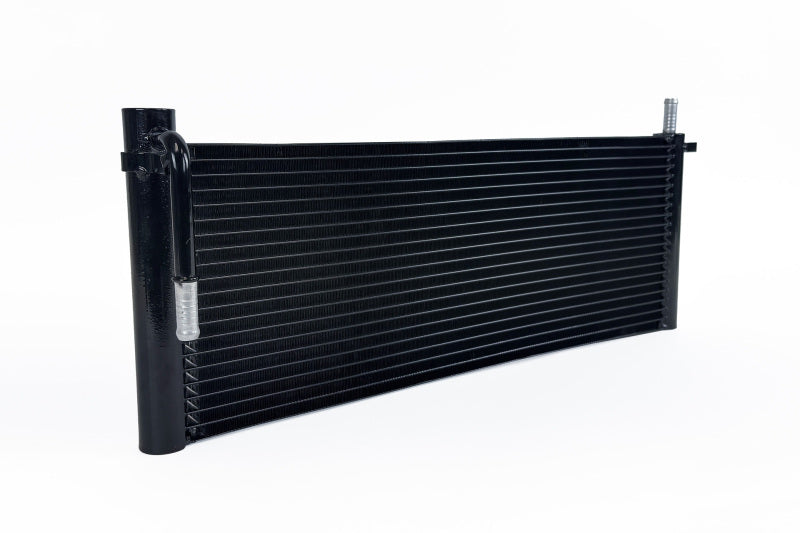

CSF Transmission Cooler for 2007-2017 Ford F-150, Expedition & Navigator - 8101

Key Features & Specs:

• Part Number: CSF 8101
• Product Type: High-performance transmission cooler
• Core Design: 1-row, 26mm 10-channel microtube core
• Cooling Technology: CSF A/C condenser-style construction for efficient transmission-fluid flow
• Fin Design: 8mm tall multi-louvered fins
• Capacity: Approximately 30% larger than the factory cooler
• Construction: Welded all-aluminum design
• Finish: Black coated finish

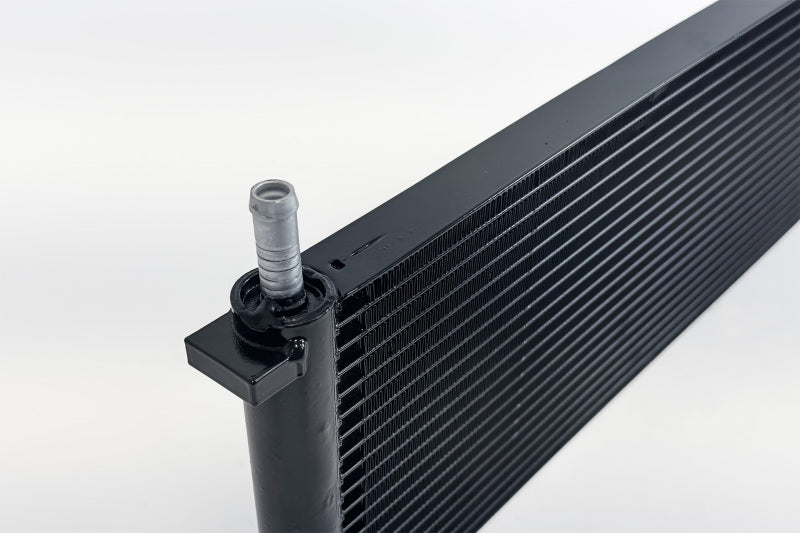

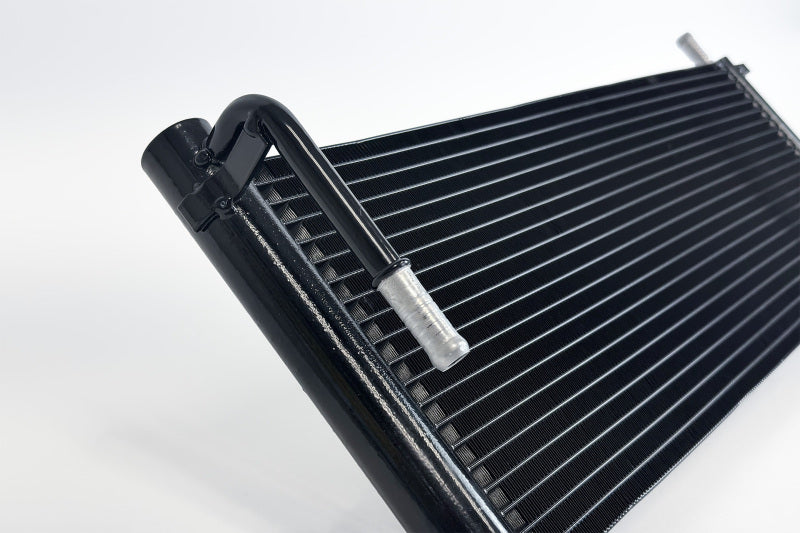

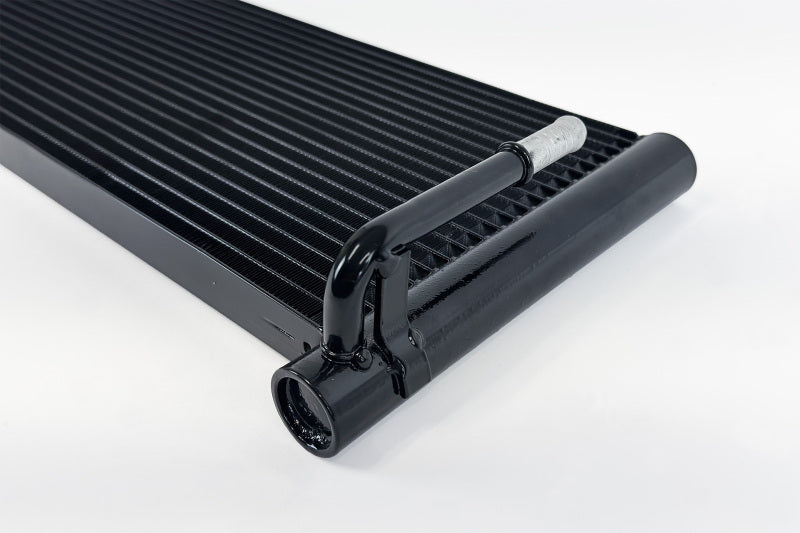

• Connections: OEM-style inlet and outlet connections

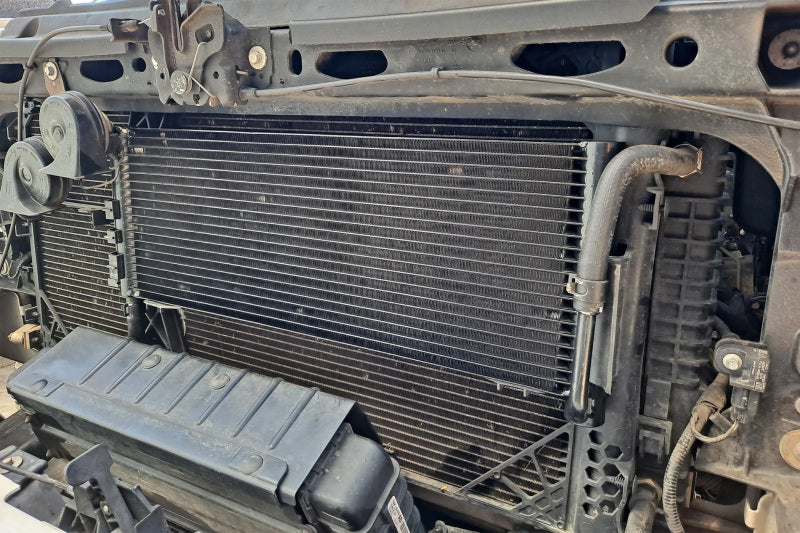

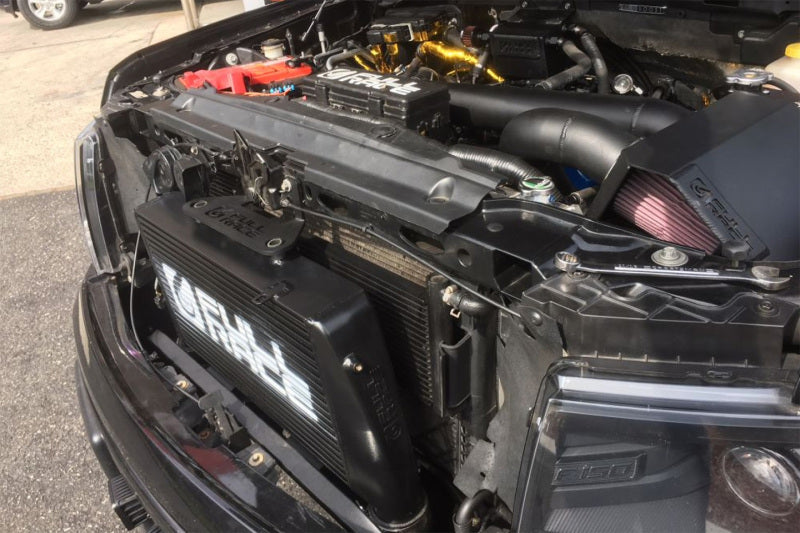

• Installation: Direct-fit replacement; no modifications required
• Fluid Cooler Type: Transmission
• Cooler Material: Aluminum
• Fan Included: No
• Quantity: Sold individually
• Warranty: 2-year limited warranty
• Replaces OEM Numbers: Ford DL3Z-7A095-A, 7L1Z-7A095-B

Fitment:

• 2007-2014 Ford Expedition U324 5.4L V8
• 2009-2010 Ford F-150 P415 4.6L V8
• 2009-2010 Ford F-150 P415 5.4L V8
• 2010-2014 Ford F-150 P415 6.2L V8
• 2010-2014 Ford F-150 SVT Raptor P415 6.2L V8
• 2011-2014 Ford F-150 P415 3.5L Turbo V6
• 2011-2014 Ford F-150 P415 3.7L V6
• 2011-2014 Ford F-150 P415 5.0L V8
• 2007-2014 Lincoln Navigator 5.4L V8
• 2015-2017 Lincoln Navigator 3.5L Turbo V6

Upgrade transmission cooling with the CSF 8101 High-Performance Transmission Cooler for select Ford F-150, Expedition, and Lincoln Navigator models. Built with CSF A/C condenser technology, this direct-fit cooler uses a super-high-pressure 26mm multi-channel microtube core, multi-louvered fins, and welded aluminum construction for improved fluid cooling performance. Approximately 30% larger than the factory cooler, it retains OEM-style connections for a no-modification installation.
